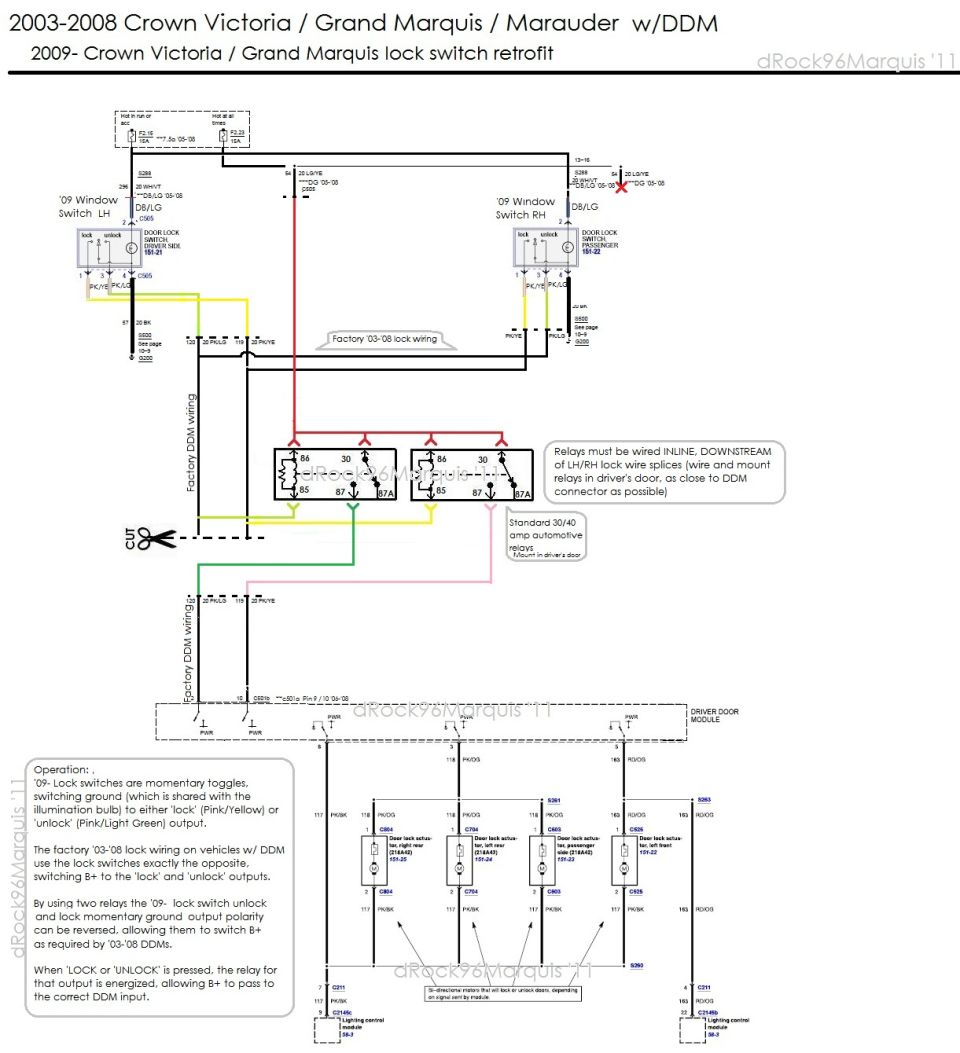

'09- CV/GMQ lock switches into '03-'08 CV/GMQ/MM with DDMs


Same as this diagram;
http://www.supermotors.net/registry/media/894909

But using 2 relays by splicing into DDM harness/pigtail
