Insulated Pulse Engine Concept CAD Rendering - 3.2L 65 HP 2-Stroke, Rev. 2011

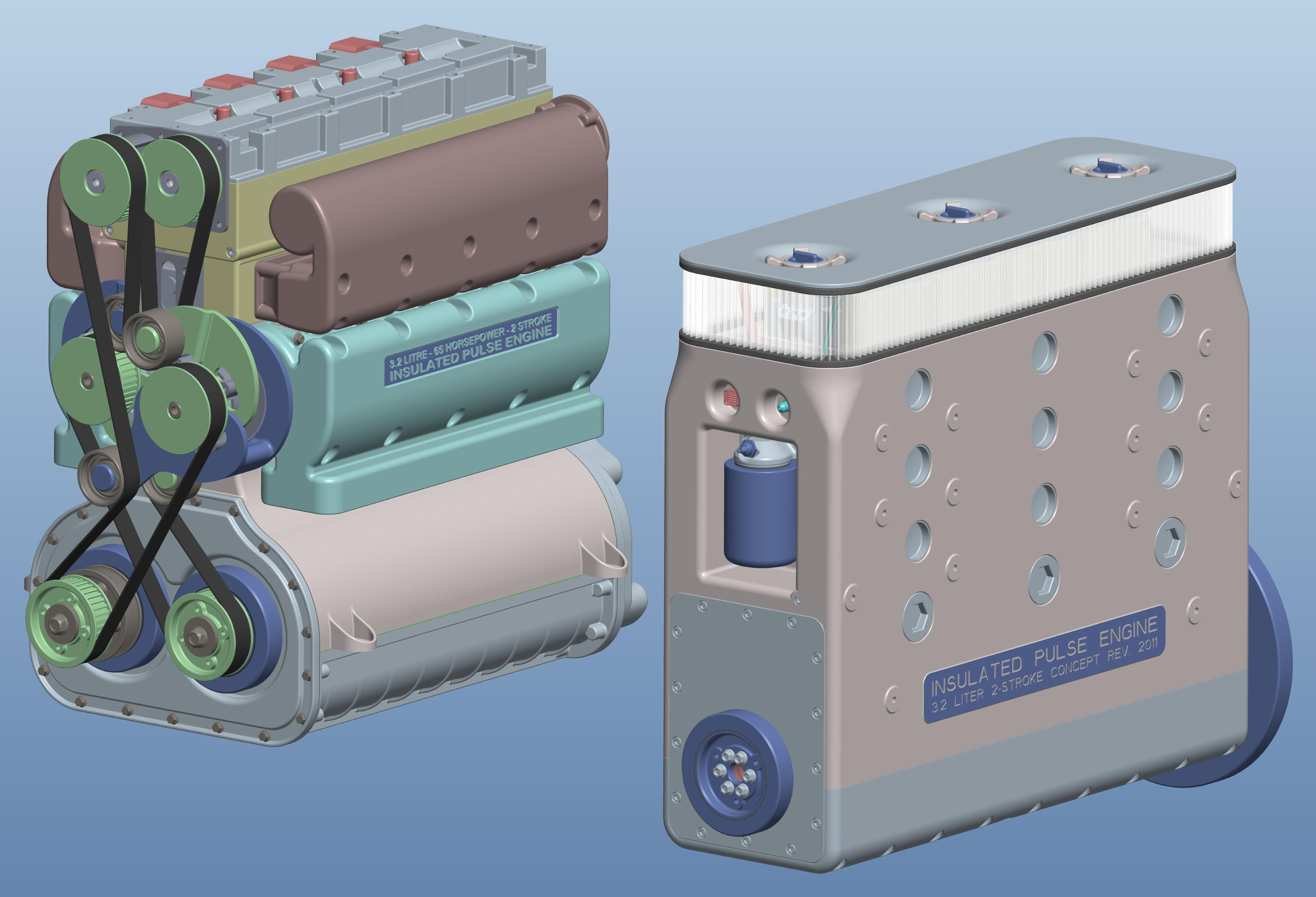

This document is a 3D CAD rendering (concept illustration, figure 50a of a multi-figure set) showing two views of an experimental 'Insulated Pulse Engine' — a 3.2 litre, 65 horsepower, 2-stroke concept engine, revision dated 2011. The left view shows the internal engine assembly with the enclosure removed: a multi-cylinder block with color-coded castings (cylinder head with red caps, brown and teal manifold/cover castings, and a large lower cylindrical casing), plus a front-end accessory drive with multiple pulleys and serpentine/toothed belts, a crankshaft pulley, and tensioners. The block casting is embossed '3.2 LITRE - 65 HORSEPOWER - 2 STROKE / INSULATED PULSE ENGINE.' The right view shows the fully enclosed engine package: a smooth insulated outer housing with recessed hex fasteners, three top-mounted caps/fittings, a translucent finned upper section (apparently insulation or an air filter band), a spin-on style filter mounted in a recessed pocket, small indicator/fitting ports, a bolted access panel, an exposed crankshaft damper/pulley, and a nameplate reading 'INSULATED PULSE ENGINE / 3.2 LITER 2-STROKE CONCEPT REV. 2011.' A reader learns the engine's displacement, power rating, operating cycle, concept revision year, and general packaging/architecture. No fuse data, wiring, torque specs, or part numbers appear.
