Under-dash wiring showing OBD-II DLC, dash-to-column connector,…

Under-dash wiring showing OBD-II DLC, dash-to-column connector, soldered splices and column harness
Under-dash wiring showing OBD-II DLC, dash-to-column connector, soldered splices and column harnessOriginal file
Under-dash wiring showing OBD-II DLC, dash-to-column connector, soldered splices and column harness

DashView all 46

Six headlight wiring diagrams comparing relay and diode configurations Vehicle dashboard with steering column, climate controls and a knob 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo Wiring connectors held by hand showing OBD-II DLC and dash-to-column connector with labeled beam wires Column-to-dash wiring harness and OBD-II DLC connector under a vehicle dash with labeled beam wires Under-dash wiring showing OBD-II DLC, dash-to-column connector, soldered splices and column harness Under-dash OBD-II DLC and dash-to-column connector with bare copper jumper wire and instructional text 1997 Chevrolet C/K Pickup photo Truck dashboard with column shifter, auxiliary switches, radio and HVAC controls, labeled switch functions 1997 Chevrolet C/K Pickup photo Gray dash rotary knob labeled IDLE SPEED with OFF, LO, MED and HI positions Tan GM truck dash with factory radio plus added idle-speed knob and under-dash gauge 1997 Chevrolet C/K Pickup photo 1997 Chevrolet C/K Pickup photo 46photos in this albumView all

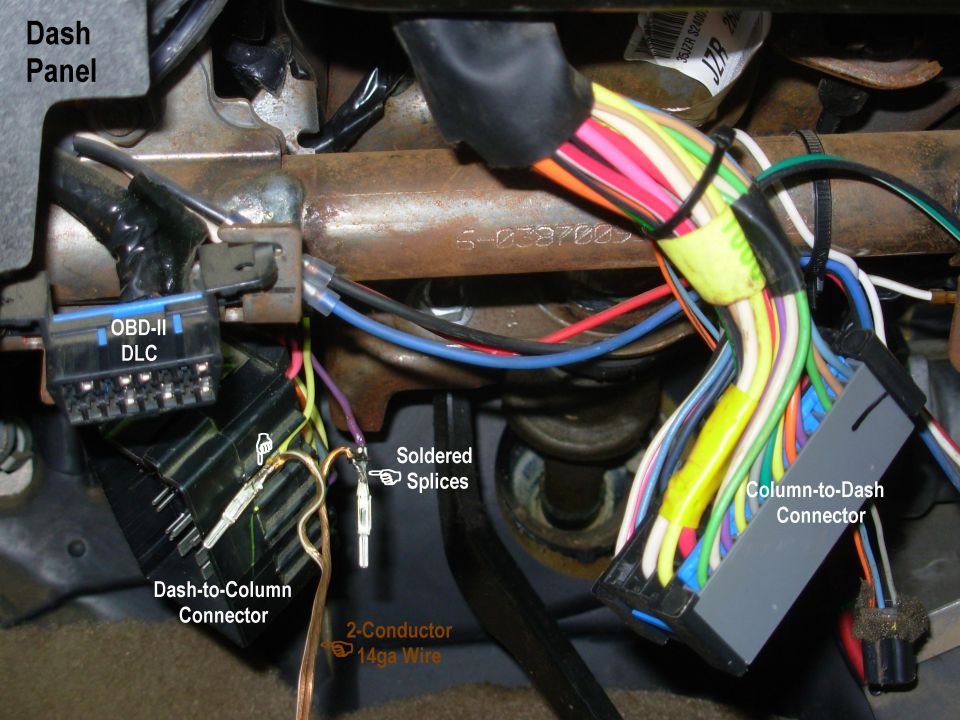

I pulled the blue terminal lock & the white contact shield, and removed the 2 terminals. I tinned the crimp & then soldered a wire to each. I found some heavy 2-conductor speaker/lamp cord, but separate wires can be used.

Owner caption · Photo 216 of 401
