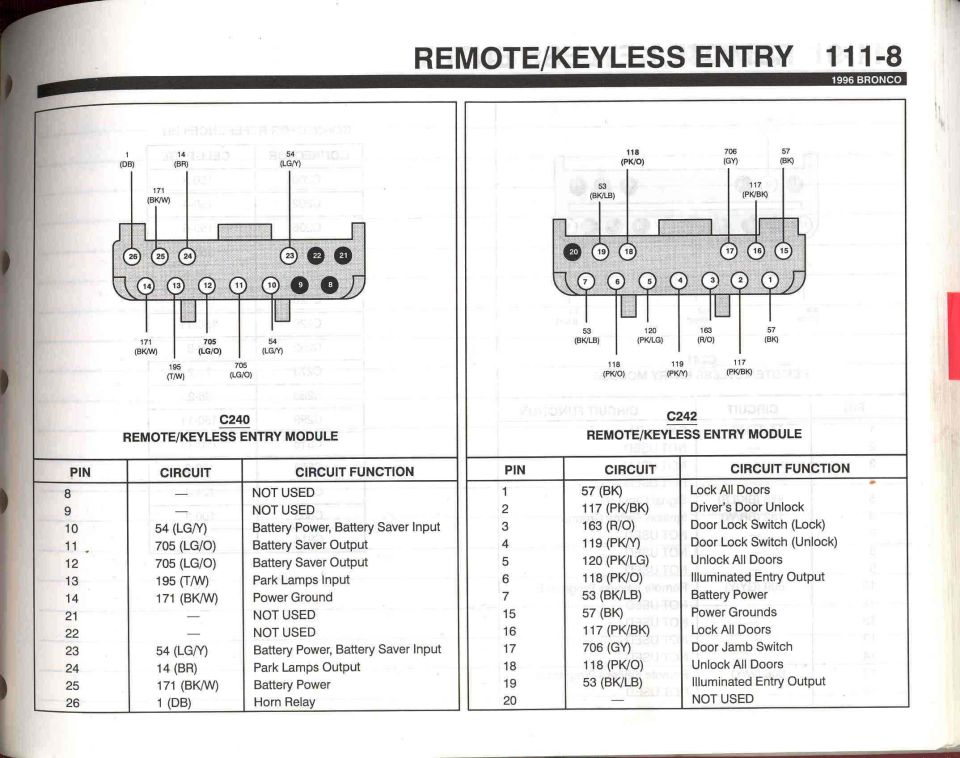

RKE - 8 Connectors C240 & C242

RKE - 8 Connectors C240 & C242

RKE - 8 Connectors C240 & C242

Owner caption · Photo 124 of 413
