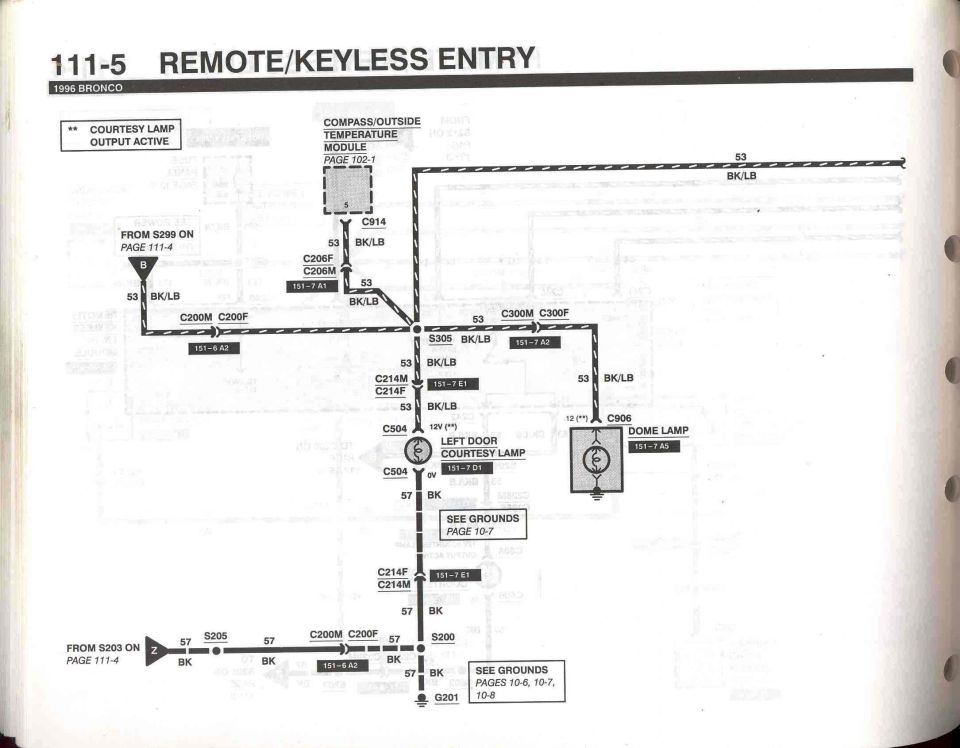

Wiring diagram for 1996 Bronco remote keyless entry page 111-5

Wiring diagram for 1996 Bronco remote keyless entry page 111-5

RKE - 5
