Album section

Specs Electric

From 1979 Ford Bronco “None”, documented by Ed Kelly.

10 photos
← Back to this vehicle

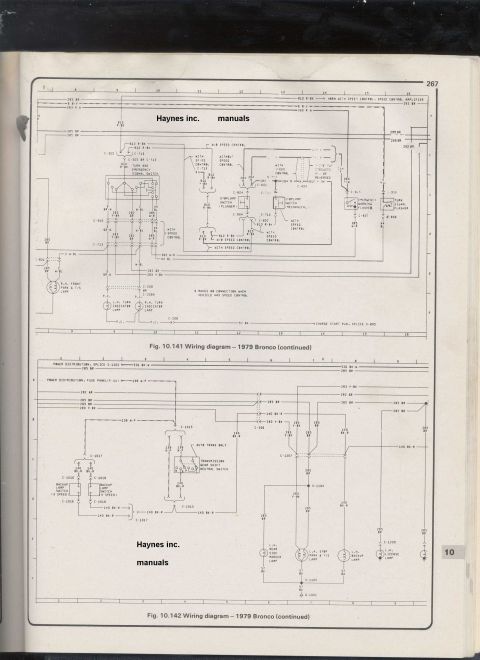

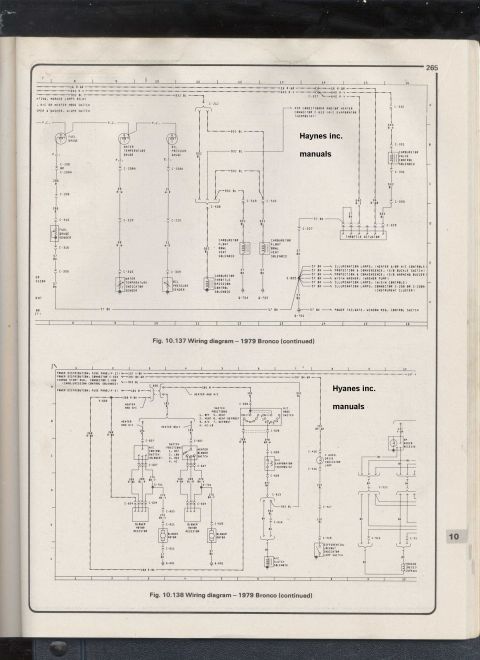

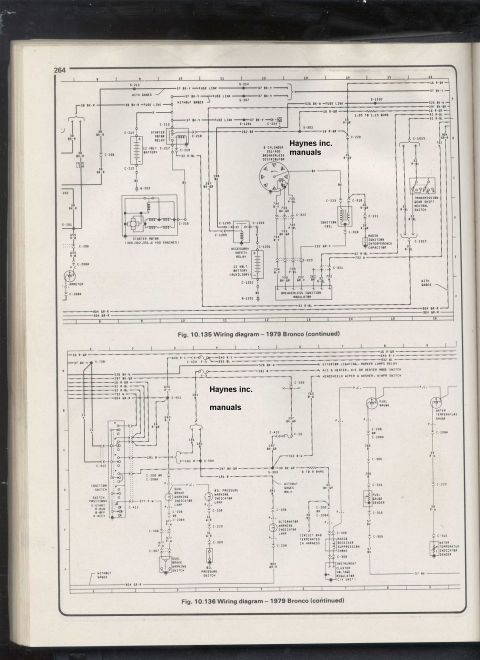

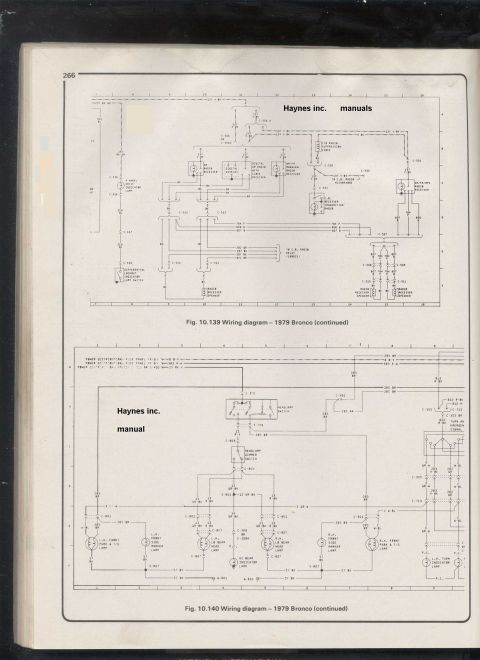

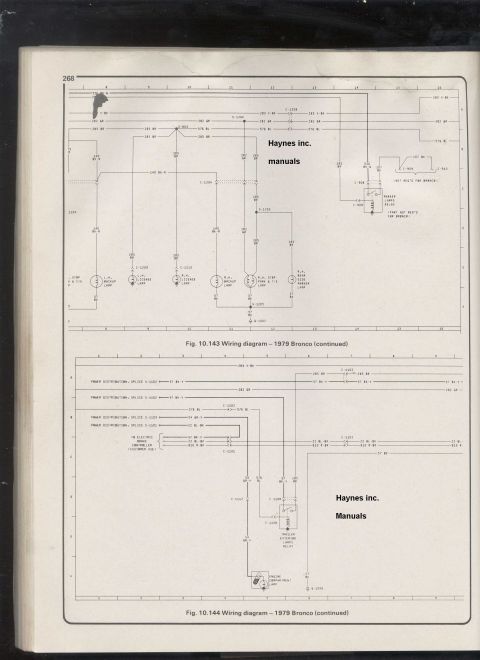

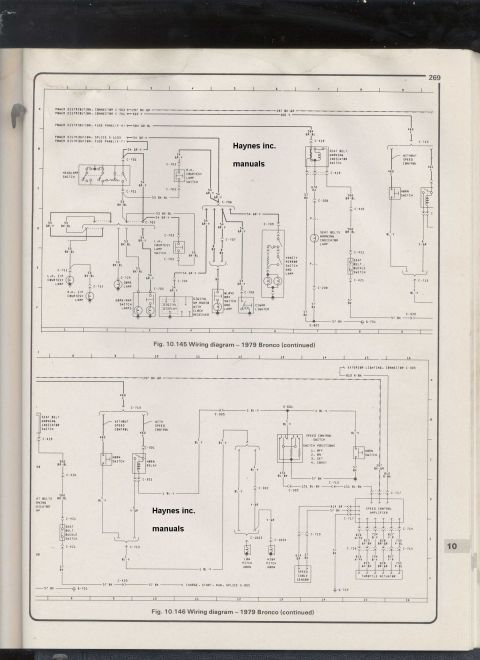

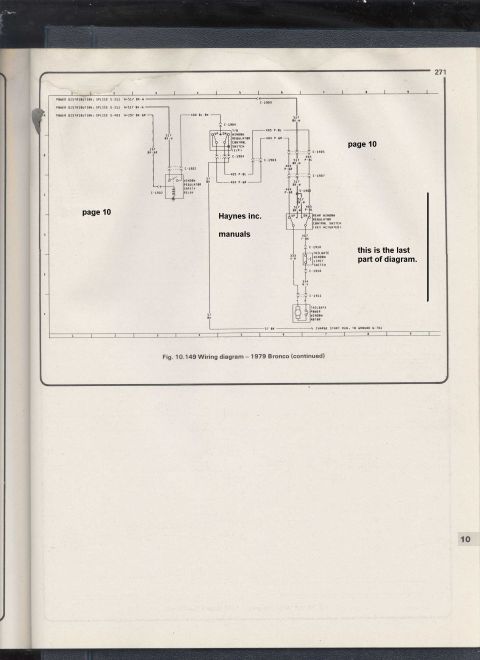

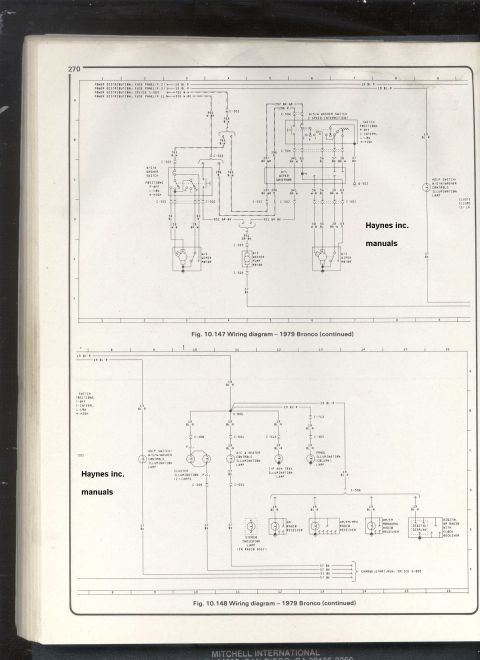

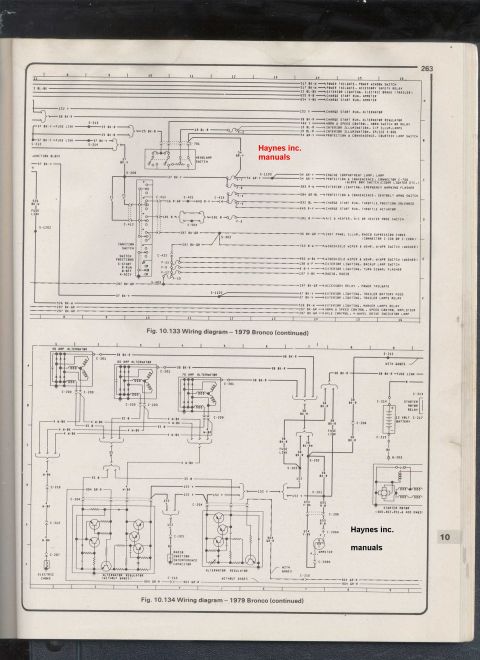

1979 Ford Bronco - Haynes 1978/1979 Bronco wiring schematic showing power distribution, in-line connectors and fuse links with wire color and gauge callouts. 1979 Ford Bronco - Haynes 1979 Bronco wiring schematic (continued) detailing circuit runs, splices and connectors with wire-color and gauge identification. 1979 Ford Bronco - Haynes Bronco wiring schematic (continued) showing connector S-201/S-202, fuse-link runs and transmission/instrument circuits with wire col… 1979 Ford Bronco - Scanned Haynes manual page showing two 1979 Ford Bronco wiring diagrams with circuit lines and component callouts. 1979 Ford Bronco - Haynes 1979 Bronco wiring schematic (continued) detailing additional circuit branches, connectors and component grounds with wire callouts. 1979 Ford Bronco - Haynes 1979 Bronco wiring schematic (continued) showing transmission, lamp and connector circuits with splice and wire-color identification. 1979 Ford Bronco - Haynes Bronco wiring schematics (continued) covering instrument and accessory circuits with connector and wire-color callouts. 1979 Ford Bronco - Haynes 1979 Bronco wiring schematics (continued) detailing speed-control and display circuits with splice points and wire colors. 1979 Ford Bronco - Haynes 1979 Bronco wiring schematic (continued) showing display, sensor and connector circuits with wire-color and gauge identification. 1979 Ford Bronco - Final sheet of the Haynes 1979 Bronco wiring schematic showing remaining distribution circuits, splices and connectors with wire colors.
