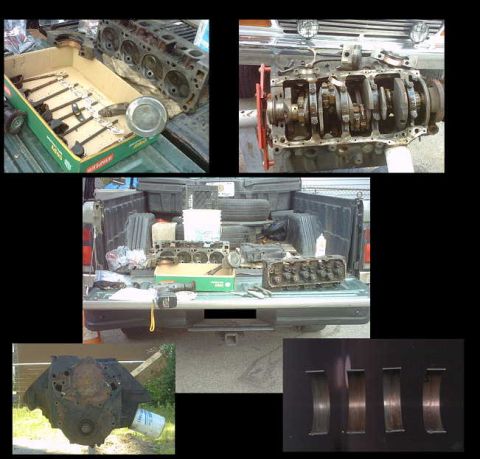

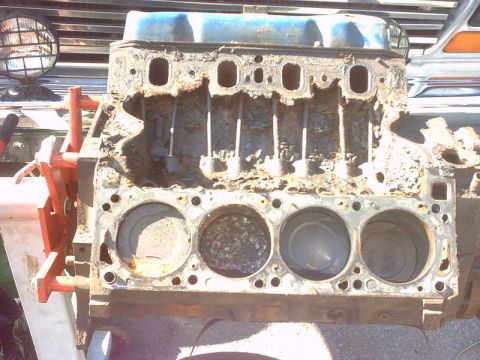

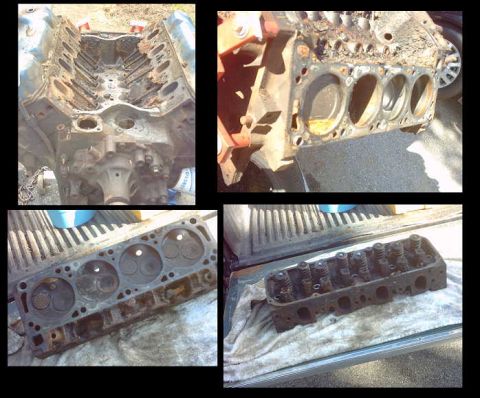

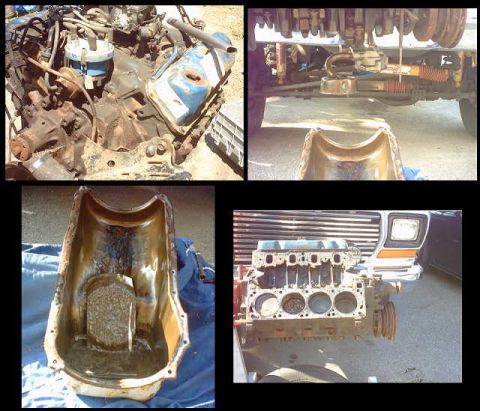

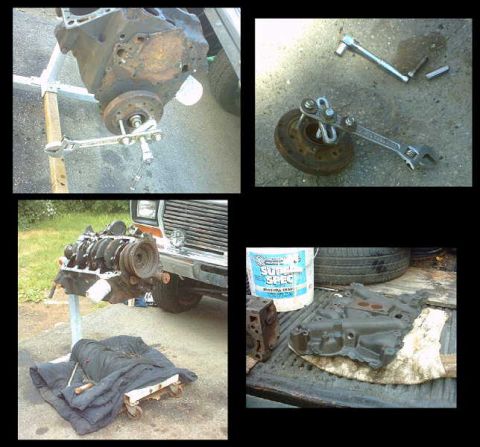

1979 Ford Bronco Wiring Diagram - Ignition, Starter & Instrument Gauges

1978-1979 Ford Bronco Wiring Diagram (Haynes Fig. 10.135)
1978-1979 Ford Bronco Wiring Diagram (Haynes Fig. 10.135)Original file
1978-1979 Ford Bronco Wiring Diagram (Haynes Fig. 10.135)

Reference · 1978-1979 BroncoAll 116 wiring diagrams

1979 Ford Bronco Wiring Diagram - Tailgate Power Window Circuit (Fig 10.149) 1979 Ford Bronco Wiring Diagram - Turn Signal, Flasher & Rear Lamp Circuits 1979 Ford Bronco Wiring Diagram - Gauges, Heater/AC & Blower Circuits (Haynes) 1979 Ford Bronco Wiring Diagram - Ignition, Starter & Instrument Gauges 1979 Ford Bronco Wiring Diagram - Ignition, Charging & Starting Circuits 1978-1979 Ford Bronco Wiring Diagram - Fuse Panel Legend & Tailgate Window 1979 Ford Bronco Wiring Diagram - Wiper/Washer & Panel Illumination Circuits 1979 Ford Bronco Wiring Diagram - Courtesy Lamps, Horn & Speed Control Ford Bronco Wiring Diagram - Ignition, Wiper Motor & Back-Up Light Circuits 1979 Ford Bronco Radio Connector Wiring Diagram C-530 & C-532 Pinouts 1979 Ford Bronco Radio & CB Wiring Diagram - AM/FM, Speakers, Connectors 2-Speed Taurus Electric Fan Wiring Diagram - Holley Sniper EFI Relay Schematic 116wiring diagrams1978-1979 Ford Bronco More reference Ford Automotive Glossary Page 16 - TCC, TFT, TSS, TWC, VMV, VLCM DefinitionsManual page Ford Transmission Clutch Seal Install & Selective Retaining Ring ChartService procedure 1986 Ford E-250 5.8L 351W 4V Vacuum Hose Routing & Emissions Decal DiagramVacuum routing 1987 Ford F-250 Fuse Panel Diagram vs Haynes 80-96 Truck/Bronco Fuse ChartFuse chart E-Z-ON 86Y Universal Harness Brochure - Retrofit Lap Belt Safety Harness KitBrochure 1978-79 Ford Bronco/Truck Rear Slider & Fixed Glass Exploded Parts DiagramExploded parts 1978 Ford Interior Trim Code B Medium Blue Metallic - SEM #1718 Color MatchSpec plate Ford 351C, 351M & 400M Firing Order Diagram 1-3-7-2-6-5-4-8 & Distributor CapSchematic 1978 Ford Bronco Custom Bumper Build - SolidWorks CAD Assembly ScreenshotBlueprint Edelbrock 7166 Performer RPM Intake Manifold Bolt Torque Sequence DiagramTorque spec

Haynes Bronco wiring schematic (continued) showing connector S-201/S-202, fuse-link runs and transmission/instrument circuits with wire colors.

Part of 1978-1979 Ford Bronco Wiring Diagrams

AI caption · Photo 101 of 126

This is page 264 from a Haynes repair manual showing two continued sections of the factory-style wiring diagram for the 1979 Ford Bronco (Fig. 10.135 and Fig. 10.136). The upper diagram (Fig. 10.135) covers the starting and ignition systems: the 12-volt battery, starter motor relay, starter motor (labeled for 300, 302, 351 & 400 engines), auxiliary 12-volt battery, accessory safety relay, the 8-cylinder 351/400 breakerless distributor, ignition coil, breakerless ignition modulator, radio ignition interference capacitor, transmission gear shift neutral switch, and ammeter, with fuse links and wire circuit numbers/colors (e.g., 37 BK-Y, 38 BK-R, 32 R-BL, 16 R-GR, 526 BK-W). The lower diagram (Fig. 10.136) covers the instrument cluster and warning circuits: ignition switch (positions S-Start, R-Run, O-Off, A-Accy), dual brake warning indicator lamp and switch, oil pressure warning lamp and switch, alternator warning indicator lamp, fuel gauge and fuel gauge sender, water temperature gauge and sender, radio receiver suppression choke, and instrument cluster voltage regulator (C/V unit). Connector numbers (C-2xx, C-3xx, C-1xxx series), splices (S-xxx), grounds (G-203, G-1201), fuses (F-3, F-5, F-10), and resistance specs (1.05 to 1.15 ohms; 8 to 9 ohms) are shown, with distinctions between 'with gages' and 'without gages' configurations.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What resistance should the ignition resistance wire show on a 1979 Bronco?
The diagram notes a resistance of 1.05 to 1.15 ohms on the 16 R-GR resistance wire in the ignition circuit, and 8 to 9 ohms on the 30 BK-GR circuit feeding the alternator warning lamp circuit.
Which engines does the starter motor wiring in this diagram apply to?
The starter motor is labeled for the 300, 302, 351 & 400 engines, and the breakerless distributor shown is for the 8-cylinder 351/400 engines.
What are the ignition switch positions shown on the 1979 Bronco diagram?
The ignition switch positions are S-Start, R-Run, O-Off, and A-Accy.
What wire colors run to the breakerless ignition modulator?
The breakerless ignition modulator connects via wires 734 O-Y (orange-yellow), 733 BK-GR (black-green), 735 P-BL (purple-blue), 232 GR-Y, 262 BR, 32 R-BL, and 732 W.
What components are covered in the instrument cluster portion (Fig. 10.136)?
Fig. 10.136 shows the ignition switch, dual brake warning indicator lamp and switch, oil pressure warning lamp and switch, alternator warning indicator lamp, fuel gauge and sender, water temperature gauge and sender, radio receiver suppression choke, and the instrument cluster voltage regulator (C/V unit).
