Album section

HVAC

From 1985 Ford LTD Crown Victoria, documented by AOD.

4 photos
← Back to this vehicle

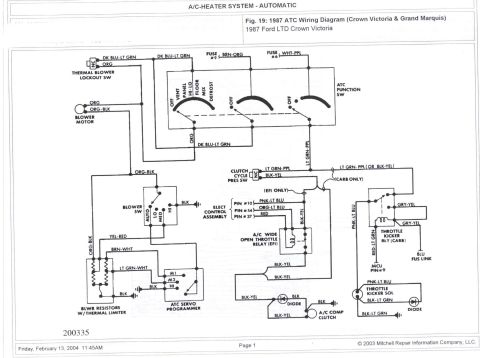

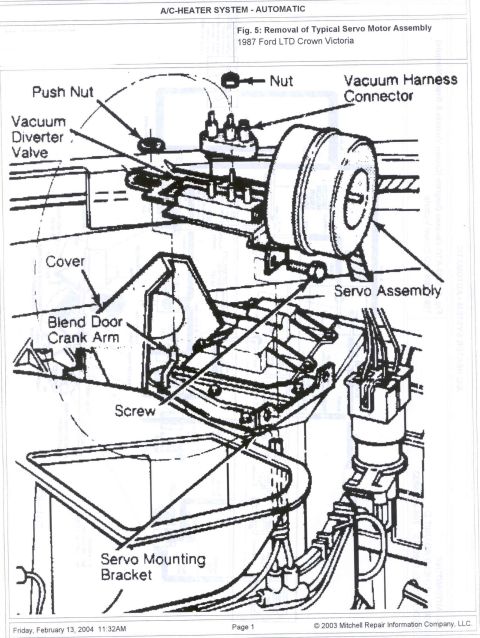

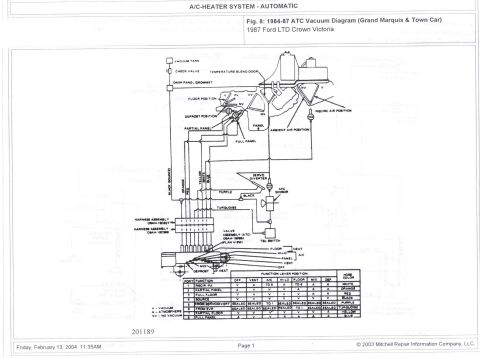

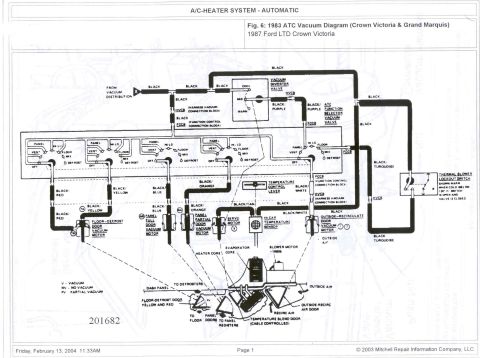

1985 Ford LTD Crown Victoria - 1983 automatic temperature control vacuum routing for Crown Victoria/Grand Marquis showing function-control valve, mode-door motors and tem… 1985 Ford LTD Crown Victoria - 1984-87 automatic temperature control vacuum routing showing mode-door vacuum motors, check valve, vacuum tank and floor/defrost/panel door… 1985 Ford LTD Crown Victoria - 1987 automatic temperature control electrical wiring showing blower motor, blower resistors, ATC servo programmer, A/C clutch and thermal l… 1985 Ford LTD Crown Victoria - Mitchell service illustration showing removal of the automatic A/C-heater vacuum servo motor assembly: vacuum harness connector, diverter v…
