driveshaft U joints

From 1989 Ford Bronco “TBA”, documented by publicjohncue.

22 photos
← Back to this vehicle

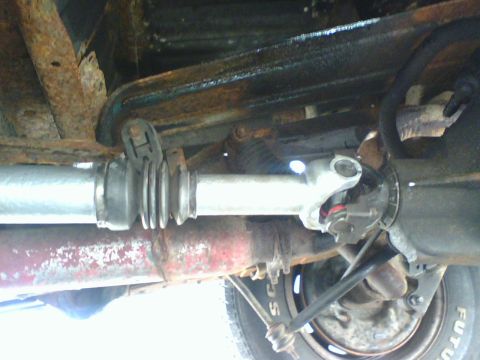

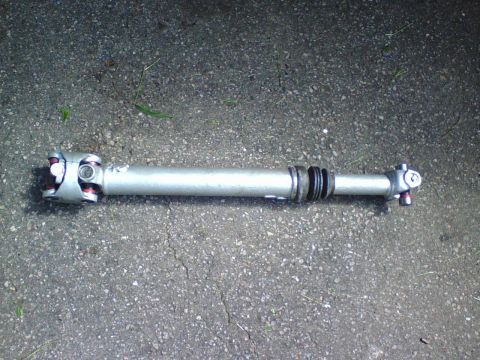

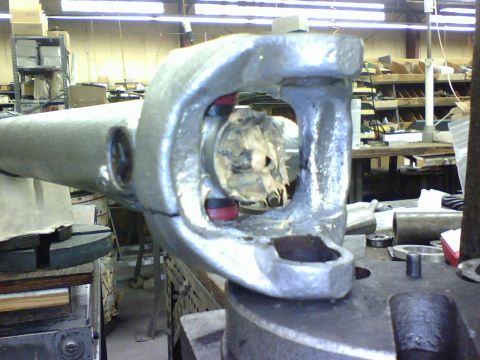

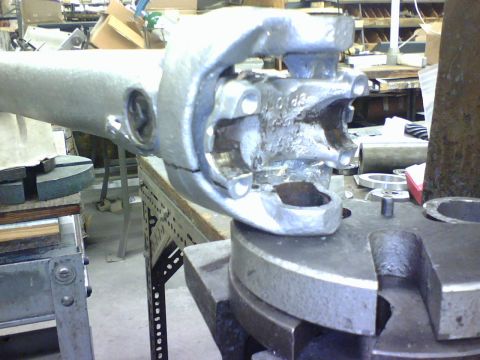

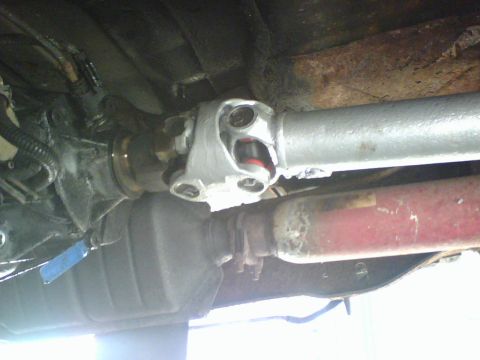

1989 Ford Bronco - Mark the relative position of the driveshaft to the axel for later reinstall 1989 Ford Bronco - do the same for the dual u-joint end of the drive shaft. 1989 Ford Bronco - unfasten the ubolts and detach the driveshaft from the rear axel. 1989 Ford Bronco - unfasten the bolts and detach the driveshaft dual u-jount assembly from the transfercase. (note: the bolt heads are a 10 or 12 pointed head… 1989 Ford Bronco - here is the driveshaft as it came out of my bko 1989 Ford Bronco - I had taped up the rubber sleeve, wire brushed and sandblasted the driveshaft with the old ujoints still in it to protect mating surfaces. 1989 Ford Bronco - here is the driveshaft after sand blasting and before I Primed and painted it chrome. 1989 Ford Bronco - here is the driveshaft all disassembled with the new parts ready to be put in. The part numbers for the dual u-joint end of the drive shaft… 1989 Ford Bronco - a closer look at the dual u-joint chasis exploded view. 1989 Ford Bronco - The end mounting bracket has a swivel pressed into it and the hole in the swivel is where the spring on the right goes into. be careful dur… 1989 Ford Bronco - here is the set up I had used to disasemble and reassemble the driveshaft components. I used an arborpress but many use hammers/vises etc t… 1989 Ford Bronco - installing the ujoints are all pretty much the same process. get one axis of u joint in the drive shaft without the endcaps and position th… 1989 Ford Bronco - press in the opposite cap. 1989 Ford Bronco - each u-joint endcap should be deep enough to allow the clip to be inserted into the groove like this. (note: this particular u-joint is the… 1989 Ford Bronco - This is the inboard u-joint on the dual u-joint assembly. I had to remove the endcaps to insert the u-joint in position. 1989 Ford Bronco - taking the two endcaps I had removed I positioned the at opposite ends of the u-joint and pressed them both in at the same time. (note: thi… 1989 Ford Bronco - When setting up to attach the middle component to the dual u-joint assemble I had to line up the previous marks made to obtain the correct… 1989 Ford Bronco - This is the cup were the spring is that connects to the outboard u-joint bracket. I had filled the cup with grease since the swivel with se… 1989 Ford Bronco - I had placed the mounting bracket in place making sure the spring was in place. I dont have the pic, but when inserting the outboard u-join… 1989 Ford Bronco - here is the driveshaft with new paint and u-joints (x3) 1989 Ford Bronco - on install make sure that the alignment marks are lined up and your good to go. 1989 Ford Bronco - Underside view of a vehicle's driveshaft and U-joint assembly.
