tech stuff

From 1978 Ford Bronco, documented by 78brncoxlt.

8 photos
← Back to this vehicle

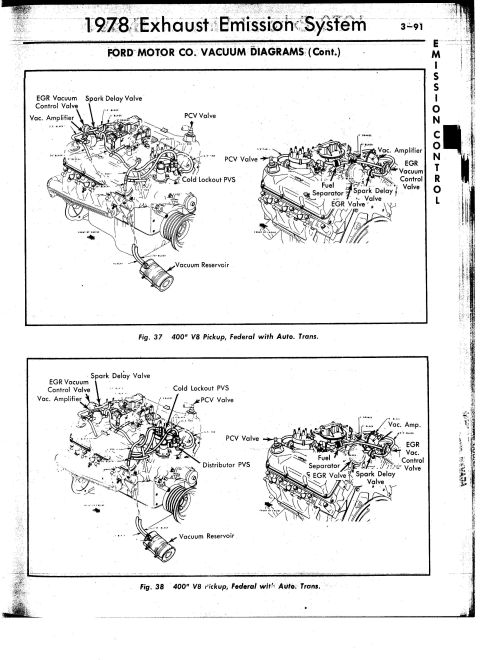

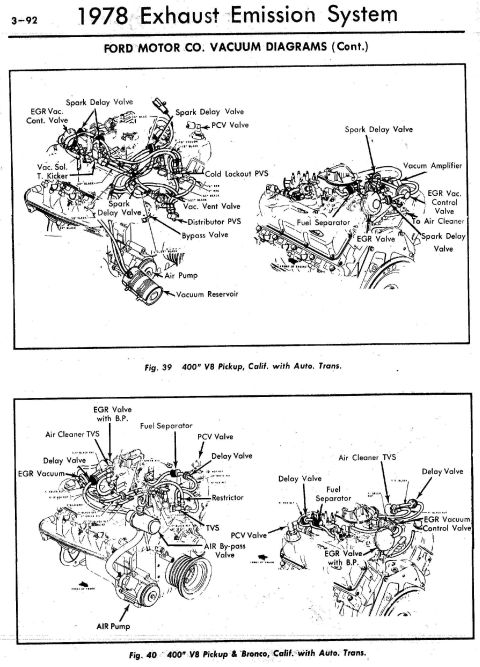

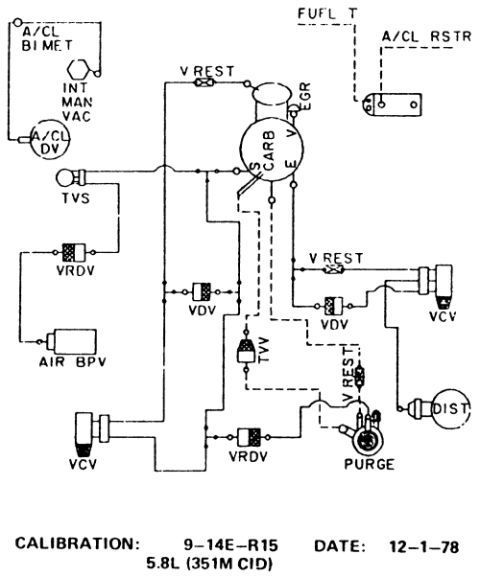

1978 Ford Bronco - 1978 Ford exhaust-emission vacuum diagrams for the 400 V8 pickup/Bronco with automatic trans, showing EGR valve, spark delay valves, PVS, a… 1978 Ford Bronco - 1978 Ford emission-control vacuum routing diagrams for the 400 V8 pickup (Federal, automatic): EGR valve, EGR vacuum control valve, spark d… 1978 Ford Bronco - Black-and-white vacuum hose routing diagram for a 5.8L (351M CID) engine, calibration 9-14E-R15 dated 12-1-78. Shows components including C… 1978 Ford Bronco - A magazine page titled 'DOWN & DIRTY' featuring an article on building a 400M Ford engine, with a photo of a man working on an engine block… 1978 Ford Bronco - Close-up of a crankshaft main journal and bearing cap inside an engine block, with the crank secured by stock two-bolt mains and ARP studs.… 1978 Ford Bronco - A magazine page titled 'Down & Dirty' with two black-and-white photos: one showing hands using a straightedge and gauge across an engine cy… 1978 Ford Bronco - A magazine article page titled 'DOWN & DIRTY' showing black-and-white photos of ported cylinder heads and a cleaned-up combustion chamber,… 1978 Ford Bronco - A scanned magazine article page titled 'Down & Dirty' describing a high-performance 406 Ford engine build for a '79 Ranchero, including a c…
