Aux Transmission Filter

From 1996 Ford Bronco “Labor of Love”, documented by DNBELOWBRONCO.

18 photos
← Back to this vehicle

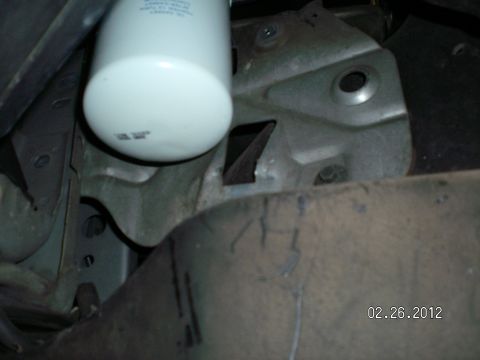

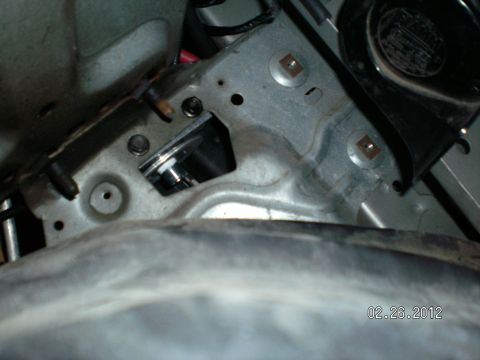

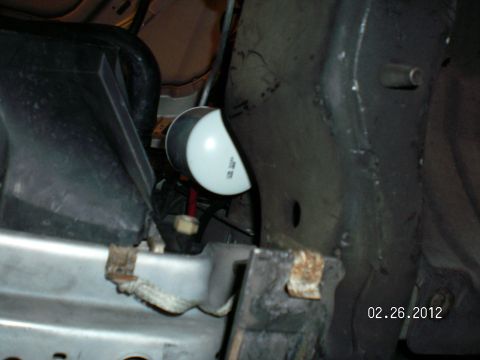

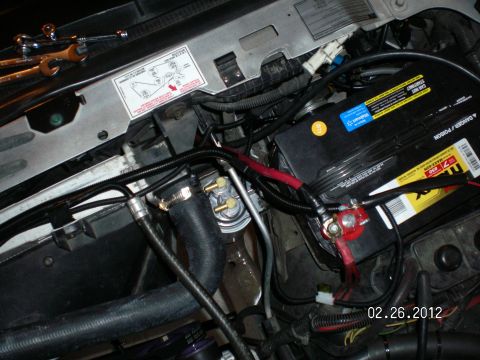

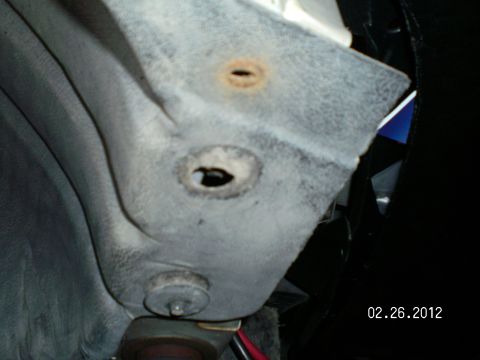

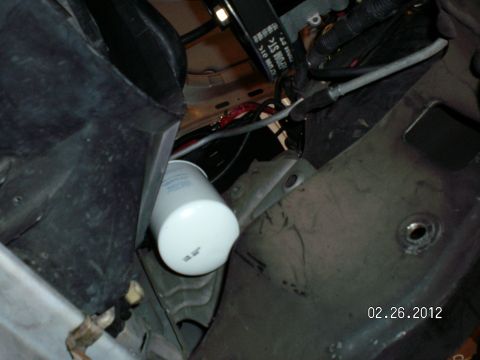

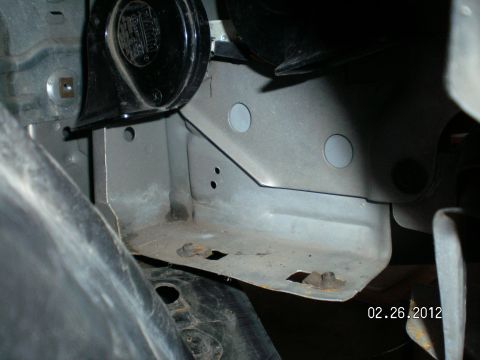

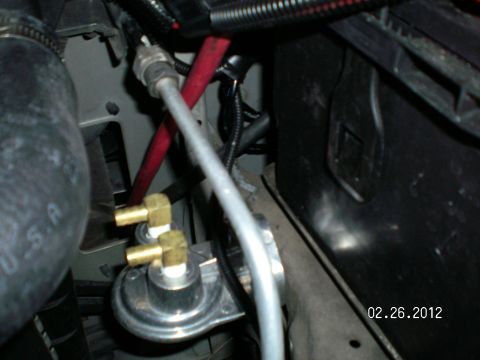

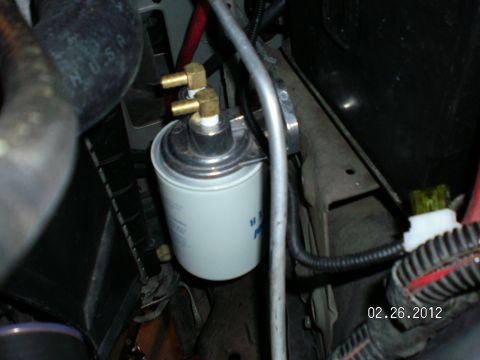

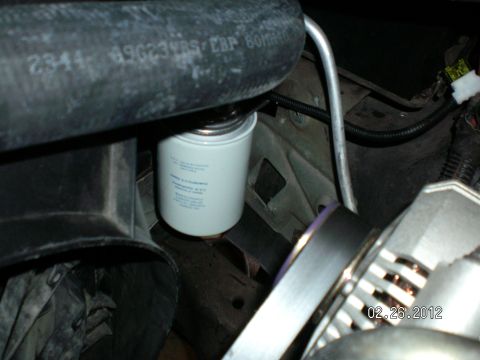

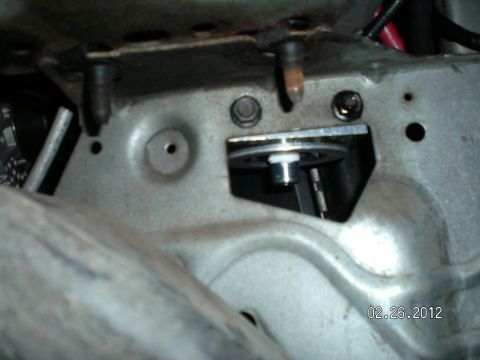

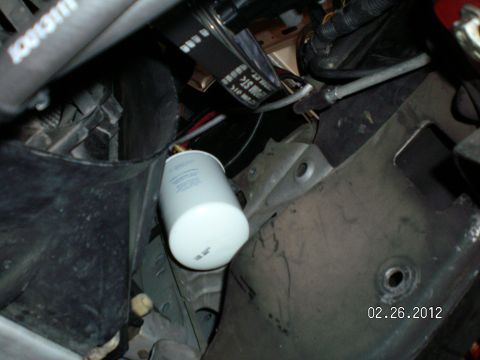

1996 Ford Bronco - This is where I moved the charcoal canister to mount the aux trans filter. I just zip tied the canister to the battery support bracket and… 1996 Ford Bronco - Here's a "top view" of the re-located canister, the shortened plastic hose, and the replacement silicone hose......came out pretty nice! 1996 Ford Bronco - Here I ran the plastic hose "under" the heater hose and you can see where it runs to............ 1996 Ford Bronco - The other end of the silicone hose runs to a metal tube and back to the fuel tank........ 1996 Ford Bronco - In this pic you can see where I moved the canister, and replaced it with the aux trans filter.......... 1996 Ford Bronco - A close-up view of an automotive fuel filter assembly with brass fittings and associated hoses. 1996 Ford Bronco - Here is where the charcoal canister was mounted from Ford. It turns out the threaded hole that mounts the canister is in a metal plate unde… 1996 Ford Bronco - This is the front end of the splash shield and is held in by two screws with large washers attached. Once removed you just remove one or tw… 1996 Ford Bronco - Here is the shield pulled down. It is also where the horn is mounted. 1996 Ford Bronco - Here you can see where I accessed the end of my bolts. I tried to go through this factory hole, from under the battery tray inside the engi… 1996 Ford Bronco - A close-up view of a metal bracket with bolts and a small silver cylinder, dated 02.26.2012. 1996 Ford Bronco - Here is the filter, mounted, and you can see to the top right, the original hole where the charcoal canister was mounted. It had a tab at t… 1996 Ford Bronco - These next few shots show how "Protected" the filter is from flying rocks and outside influence that could damage a filter, drain the fluid… 1996 Ford Bronco - Even though this filter is mounted way up and out of harms way, I can fill the filter with Mercon V and reach in through the engine compart… 1996 Ford Bronco - This thing is not only protected from rocks because of the radiator and fan shroud etc but is also protected by the metal plate in case a r… 1996 Ford Bronco - Close-up view of an auxiliary transmission filter, likely from a vehicle's undercarriage. 1996 Ford Bronco - Look at how high up this is, how solid it's mounted into the metal plate, and how much room there is to change the filter. When I first was… 1996 Ford Bronco - Here is a view from above before I attached the hoses. Which for my '96 with the E4OD was front trans line, not the one by the extension ho…
