BroncoBabe78 > 1966 Ford F-100 > open folder Removal

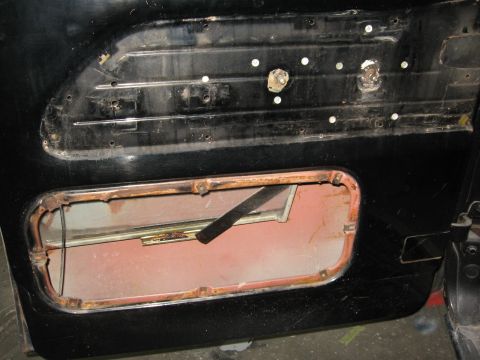

First, roll the window all the way down.
1271 hits | 61.7 KB | Posted: 6/15/09
First, roll the window all the way down.

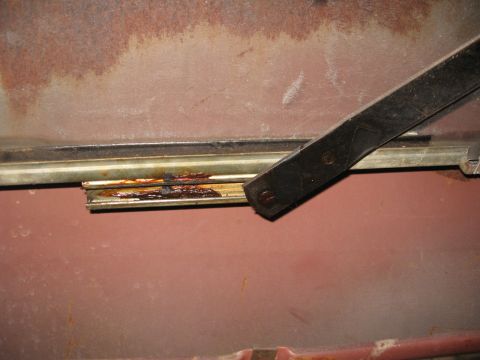

There's a bushing there on the end of the regulator arm that rides in that channel. There's a crook...
785 hits | 49.46 KB | Posted: 6/15/09
There's a bushing there on the end of the regulator arm that rides in that channel. There's a crook...

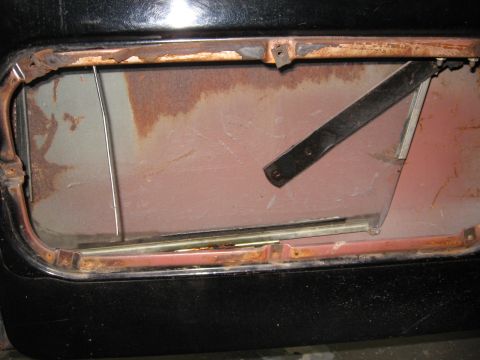

Then you can pull the arm loose from the bushing and lower the glass down into the door. Also, at t...
732 hits | 57.11 KB | Posted: 6/15/09
Then you can pull the arm loose from the bushing and lower the glass down into the door. Also, at t...

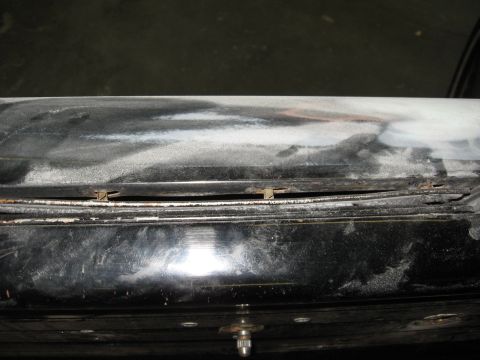

The inner and outer felt, anti-rattlers are held in with clips. I used a small screw driver to get ...
727 hits | 54.41 KB | Posted: 6/15/09
The inner and outer felt, anti-rattlers are held in with clips. I used a small screw driver to get ...

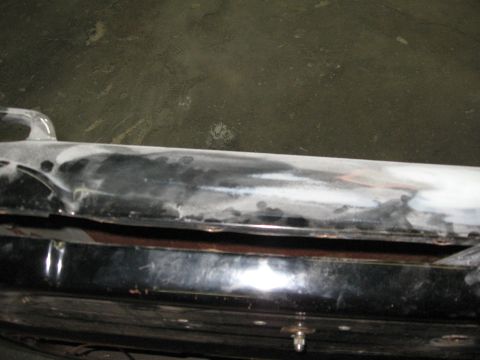

There, both are out. I don't think it really matters at which point you remove these, but it helps ...
717 hits | 49.02 KB | Posted: 6/15/09
There, both are out. I don't think it really matters at which point you remove these, but it helps ...

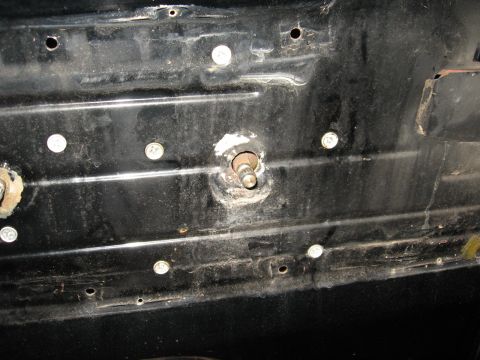

The Four screws [2 on each side of the regulator shaft] hold the regulator to the door, the Fifth sc...
643 hits | 70.07 KB | Posted: 6/15/09
The Four screws [2 on each side of the regulator shaft] hold the regulator to the door, the Fifth sc...

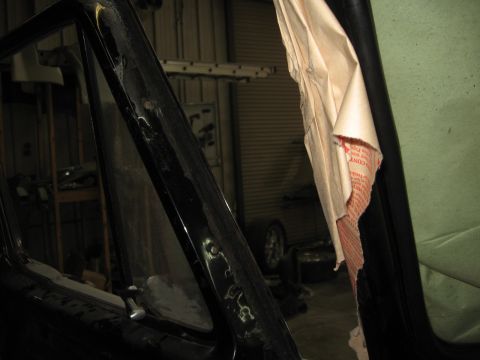

There are two screws on the outside of the door for the vent window. Remove these.
772 hits | 46.45 KB | Posted: 6/15/09
There are two screws on the outside of the door for the vent window. Remove these.

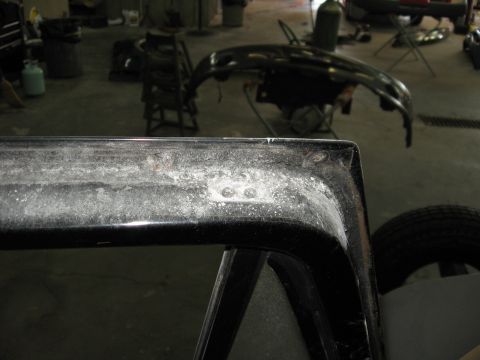

Two screws at the top for the division bar.
679 hits | 47.17 KB | Posted: 6/15/09
Two screws at the top for the division bar.

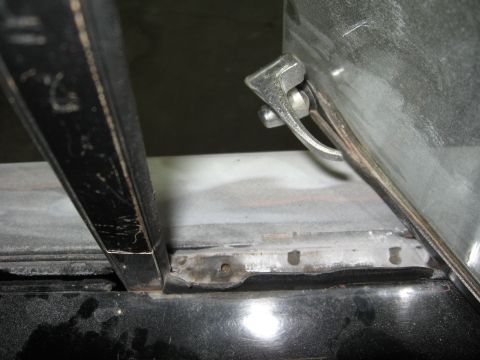

There's a screw under this rubber that holds the vent window to the division bar.
700 hits | 55.14 KB | Posted: 6/15/09
There's a screw under this rubber that holds the vent window to the division bar.

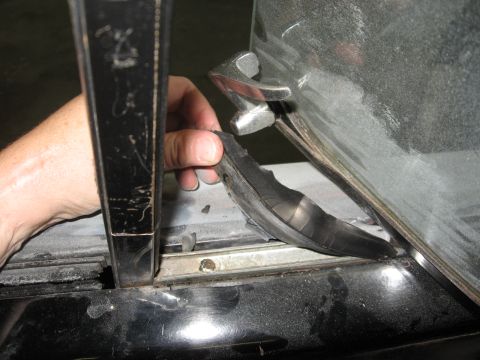

Just pull the rubber back to get to the screw.
727 hits | 65.73 KB | Posted: 6/15/09
Just pull the rubber back to get to the screw.

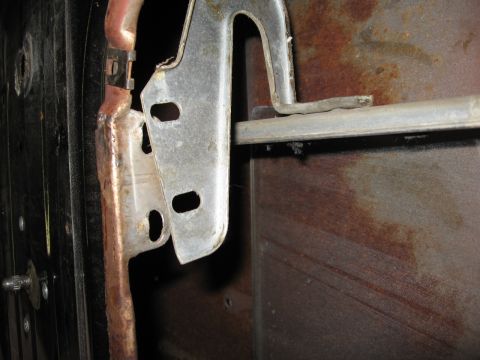

I forgot to take a pic before removing these, but there are two bolts holding the division bar to th...
686 hits | 59.29 KB | Posted: 6/15/09
I forgot to take a pic before removing these, but there are two bolts holding the division bar to th...

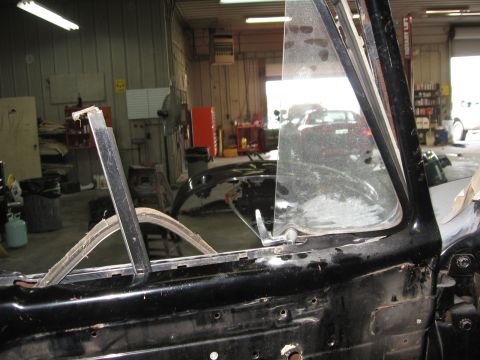

At this point you can remove the vent window and lower the division bar.
699 hits | 69.92 KB | Posted: 6/15/09
At this point you can remove the vent window and lower the division bar.

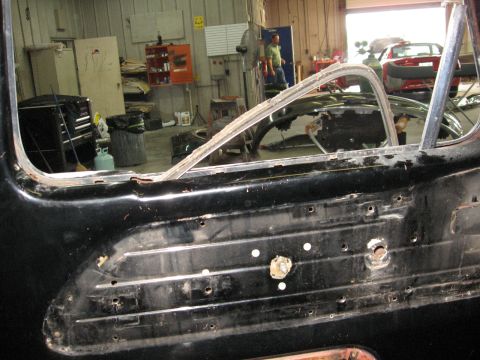

Pull the glass run off and remove the window. It helps if you have a buddy so you make sure you don...
696 hits | 78.26 KB | Posted: 6/15/09
Pull the glass run off and remove the window. It helps if you have a buddy so you make sure you don...

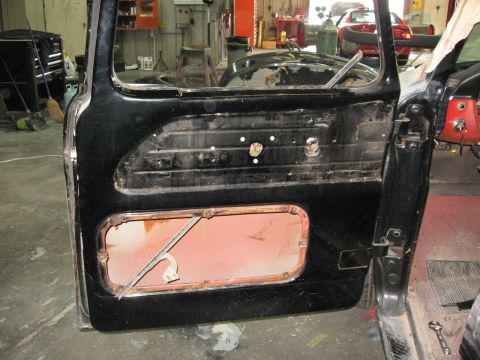

Here comes the REAL fun. The point where you scratch your noggin and think, "did Ford build the doo...
687 hits | 77.71 KB | Posted: 6/15/09
Here comes the REAL fun. The point where you scratch your noggin and think, "did Ford build the doo...

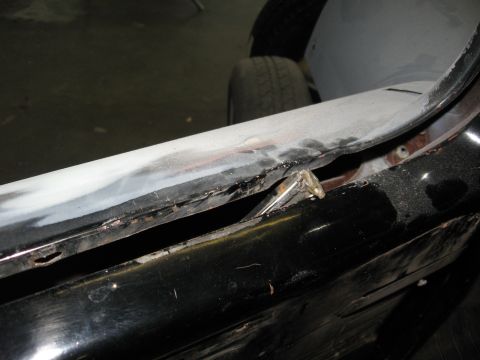

Watch out for this little part, just when you think you've got it out, one more little twist to free...
718 hits | 47.48 KB | Posted: 6/15/09
Watch out for this little part, just when you think you've got it out, one more little twist to free...

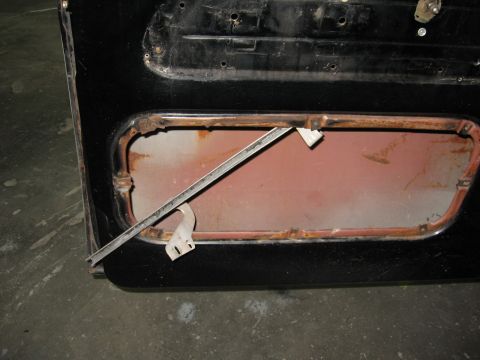

And it's out!! Yay. Now you get to put it all back in.
745 hits | 53.93 KB | Posted: 6/15/09
And it's out!! Yay. Now you get to put it all back in.
