tranny and t-case pics

From 1987 Ford Bronco “Bruiser Woods”, documented by Nathan Geving.

26 photos
← Back to this vehicle

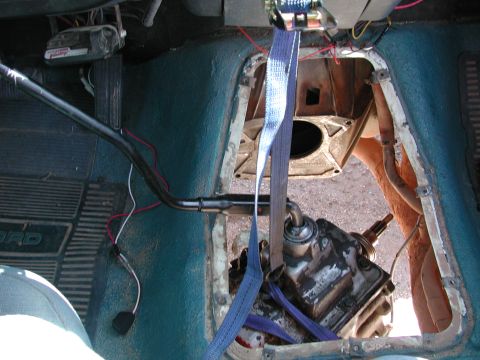

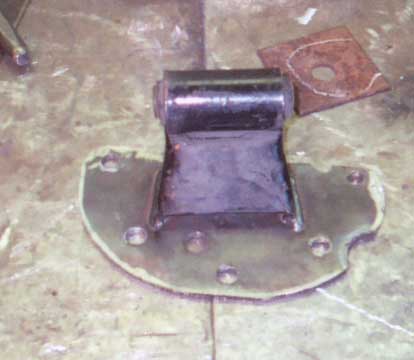

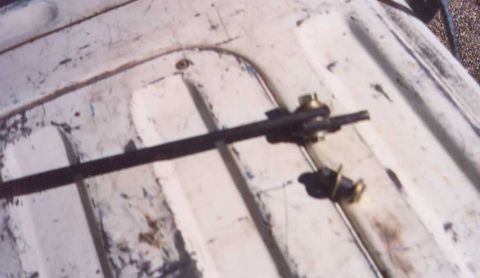

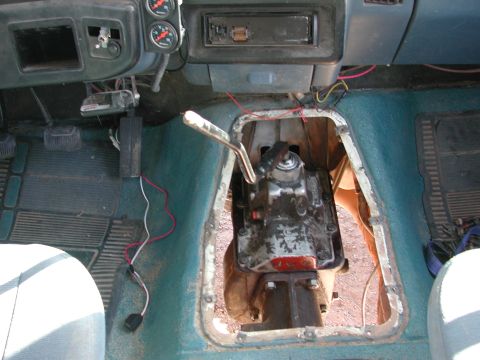

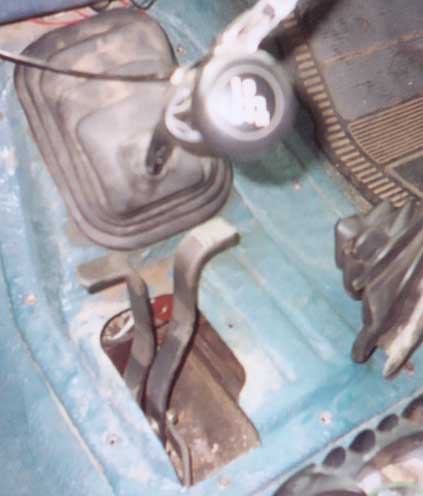

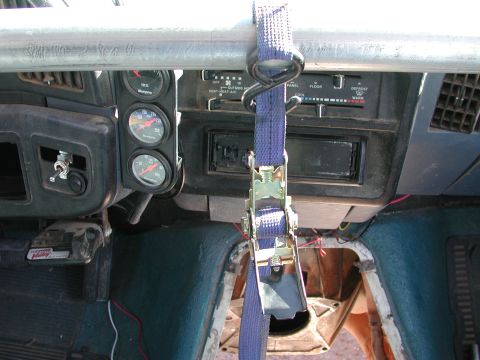

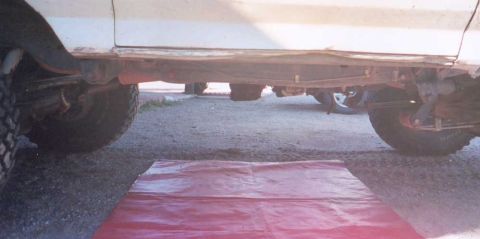

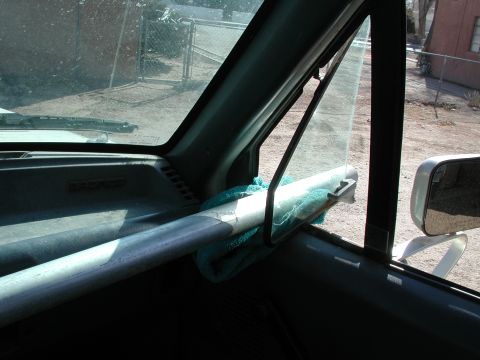

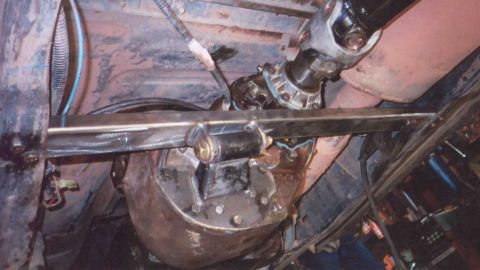

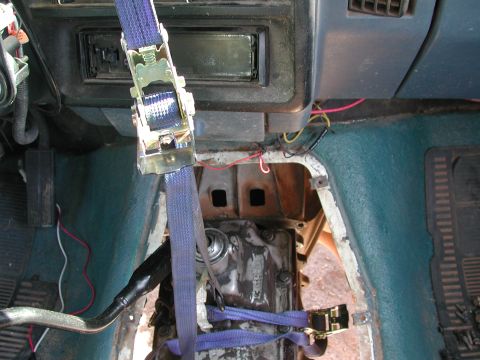

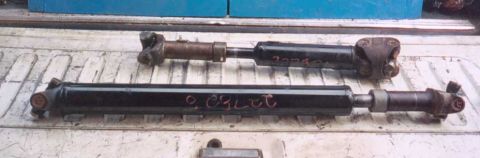

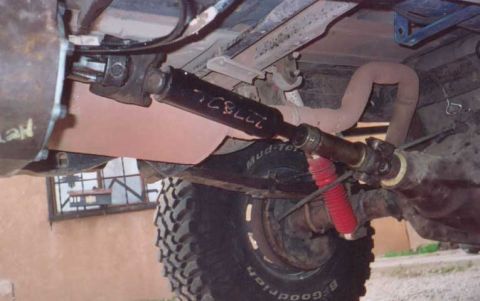

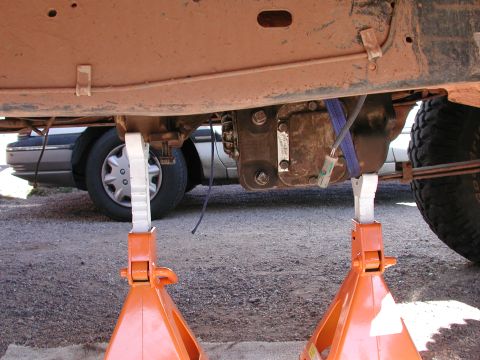

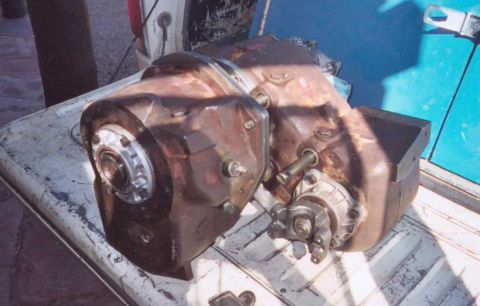

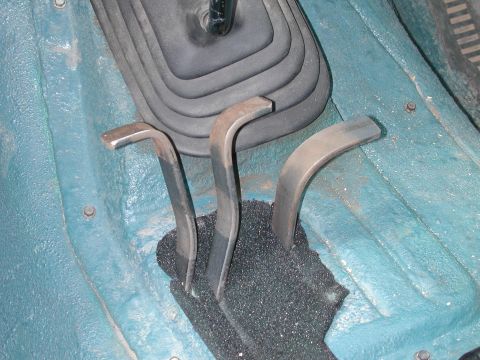

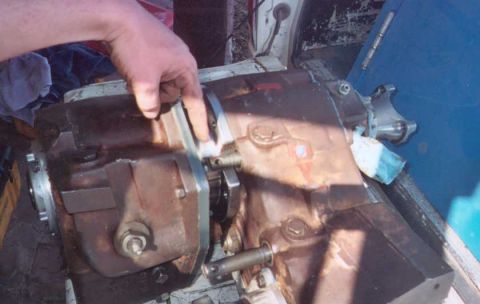

1987 Ford Bronco - here is the problem; 120+ lbs of NP435, gravel driveway and no one i can really depend on to help me throw it in... 1987 Ford Bronco - so i thought to myself; self what do you have around here you could use as a hoist... 1987 Ford Bronco - ...hmmm a metal pole... 1987 Ford Bronco - ...and some ratchet straps... 1987 Ford Bronco - ...lift it up there... 1987 Ford Bronco - ...i had to set it on jack stands to re-set the ratchet strap a couple of times... 1987 Ford Bronco - ...almost in... 1987 Ford Bronco - ta-da it's in! 1987 Ford Bronco - the 205 xmember 1987 Ford Bronco - Rear DS on top, 24 inches Front DS 36 inches 1987 Ford Bronco - 24 inch shaft in 1987 Ford Bronco - what is a project without a little blood 1987 Ford Bronco - bracket for the NP205 1987 Ford Bronco - doubler put together 1987 Ford Bronco - yeah it hangs a little lower than i wanted, there were some issues welding the kit together and i f'ed up 1987 Ford Bronco - this is what i did for shift pivots, steel pacer with a bolt running through it and some washers 1987 Ford Bronco - this is the front output shifter and the rear output shifter. the 203 shifter sits above and to the right of these two 1987 Ford Bronco - this is your bigest problem, the clearence in here is nada. this is the rear output shifter 1987 Ford Bronco - the twin stick shifters in 1987 Ford Bronco - this is the complete shift linkage out of the truck (i will build one for you too... scary) 1987 Ford Bronco - DS tunnel pic 1987 Ford Bronco - DS tunnel pic 1987 Ford Bronco - DS tunnel pic 1987 Ford Bronco - from left to right, front output on 205, rear output on 205, 203 range box. all 3 in nuetral 1987 Ford Bronco - all three in low range "4wd double low" some would say 1987 Ford Bronco - 4wd with 1:1 in the cases, 4wd High. I know I didn't show all the combos but this should give you some idea of what it does.
