14 bolt swap

From 1987 Ford Bronco “Bruiser Woods” — documented by Nathan Geving.

26 photos

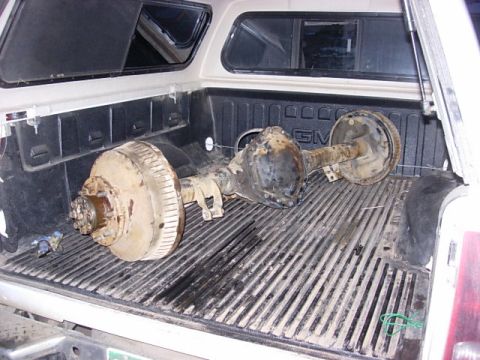

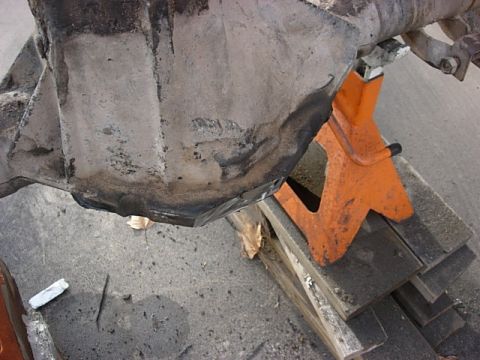

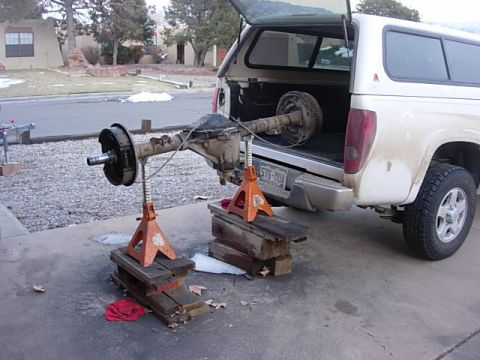

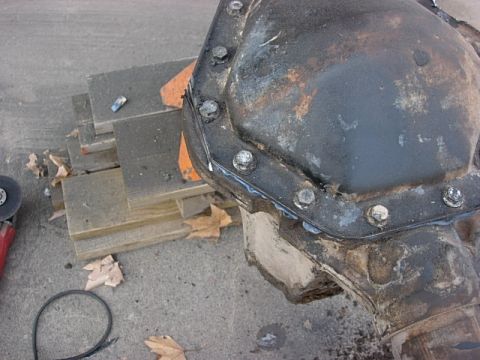

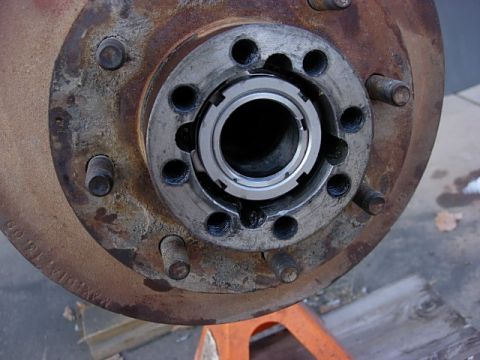

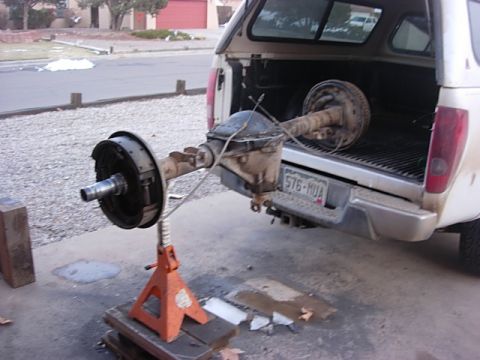

1987 Ford Bronco - the dana 60 front wheel bearing nuts will fit the 14 bolt just fine, the locking washer however needs a little grinding.the dana 60 front wheel bearing nuts will fit the 14 bolt just fine, the locking washer however needs a little grinding. Owner 1987 Ford Bronco - the D60 nuts and lock washer all in, a tight fit but now my front and rear use the same tool.the D60 nuts and lock washer all in, a tight fit but now my front and rear use the same tool. Owner 1987 Ford Bronco - i cut and ground quite a bit off my diff. this is a shot of the cover cut but the diff still intack. this is how much i took off and it sti…i cut and ground quite a bit off my diff. this is a shot of the cover cut but the diff still intack. this is how much i took off and it sti… Owner 1987 Ford Bronco - Close-up of a differential housing supported by an orange jack stand and wooden blocks.Close-up of a differential housing supported by an orange jack stand and wooden blocks. AI caption 1987 Ford Bronco - how to load a 14 bolt by yourself with no hoist. with the brake drums and axles out it is not that heavy. so get it up on a ton of wood, in…how to load a 14 bolt by yourself with no hoist. with the brake drums and axles out it is not that heavy. so get it up on a ton of wood, in… Owner 1987 Ford Bronco - then slide it in...then slide it in... Owner 1987 Ford Bronco - A white pickup truck carries a differential and brake assemblies in its bed, with a license plate visible.A white pickup truck carries a differential and brake assemblies in its bed, with a license plate visible. AI caption 1987 Ford Bronco - put other drum and axle on and slide the rest of the way in.put other drum and axle on and slide the rest of the way in. Owner 1987 Ford Bronco - naked bronco!naked bronco! Owner 1987 Ford Bronco - ford uses one brake line one size bigger so to use the GM hard line and the Ford brake line I needed this little fitting.ford uses one brake line one size bigger so to use the GM hard line and the Ford brake line I needed this little fitting. Owner 1987 Ford Bronco - spring hangers hung. my bumper mounts inside of the frame rails (thank you Rob Elis) so my rear hanger could go way back.the bolt through t…spring hangers hung. my bumper mounts inside of the frame rails (thank you Rob Elis) so my rear hanger could go way back.the bolt through t… Owner 1987 Ford Bronco - the truck sitting on its own weight. stuff just tacked inthe truck sitting on its own weight. stuff just tacked in Owner 1987 Ford Bronco - sparkisparki Owner 1987 Ford Bronco - thanks Dave C for the spring perches they worked great!thanks Dave C for the spring perches they worked great! Owner 1987 Ford Bronco - on the rampon the ramp Owner 1987 Ford Bronco - the tire just goes into the fender. I should do a little trimmingthe tire just goes into the fender. I should do a little trimming Owner 1987 Ford Bronco - NICE!NICE! Owner 1987 Ford Bronco - so this is a ford 10.25 parking brake cable. I cut off all the plastic and clippy thingso this is a ford 10.25 parking brake cable. I cut off all the plastic and clippy thing Owner 1987 Ford Bronco - which leaves thiswhich leaves this Owner 1987 Ford Bronco - GM's got this nice bolt on thing for their e-brakeGM's got this nice bolt on thing for their e-brake Owner 1987 Ford Bronco - put the GM thing over the ford cableput the GM thing over the ford cable Owner 1987 Ford Bronco - A blue vise holds a metal part with a loop, with a vehicle's grille visible in the background.A blue vise holds a metal part with a loop, with a vehicle's grille visible in the background. AI caption 1987 Ford Bronco - notchednotched Owner 1987 Ford Bronco - the GM had much less cable inside the drum so I removed some of the spring around the cable.the GM had much less cable inside the drum so I removed some of the spring around the cable. Owner 1987 Ford Bronco - ta-da!ta-da! Owner 1987 Ford Bronco - either my truck is rejecting the RME siticker or the mighty NMVJC sticker is pushing it off!either my truck is rejecting the RME siticker or the mighty NMVJC sticker is pushing it off! Owner
