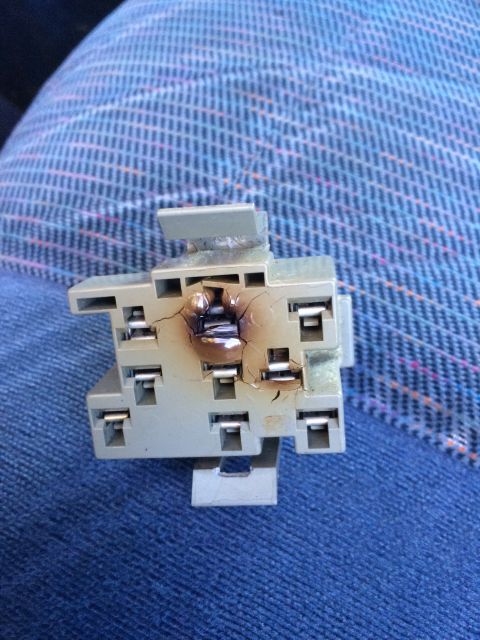

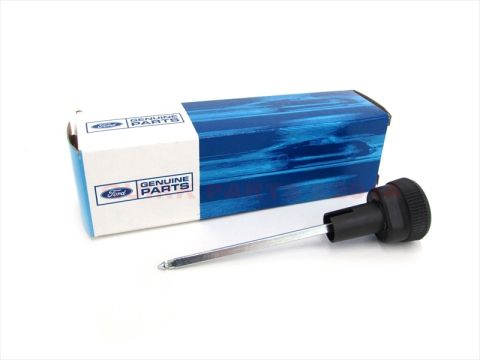

Headlight Switch

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

39 photos
← Back to this vehicle

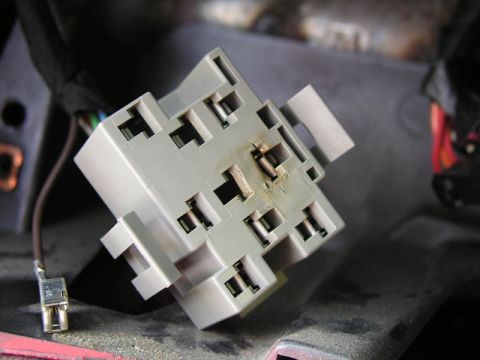

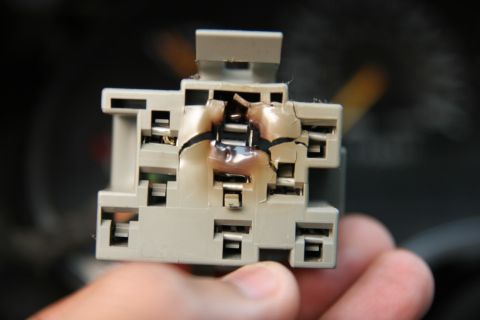

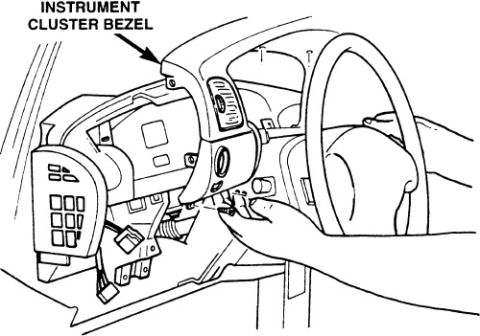

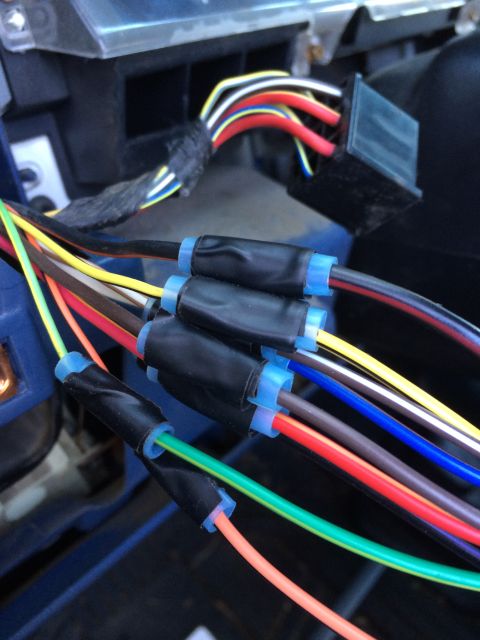

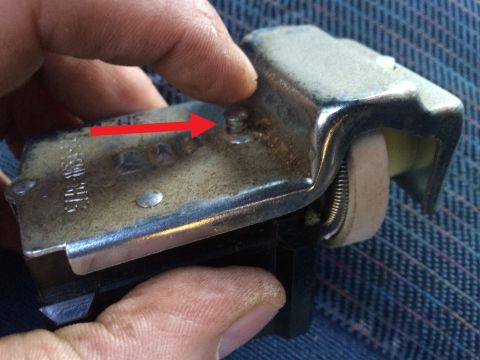

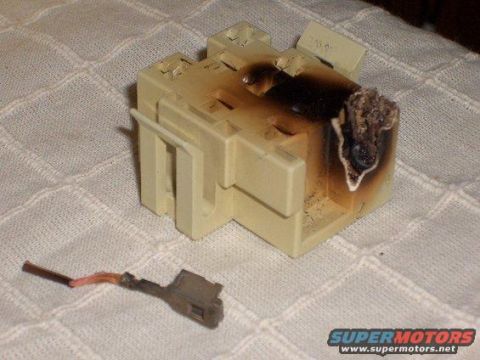

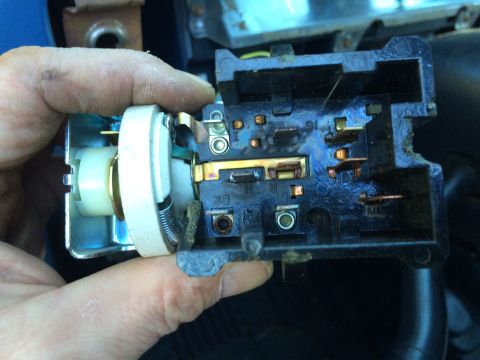

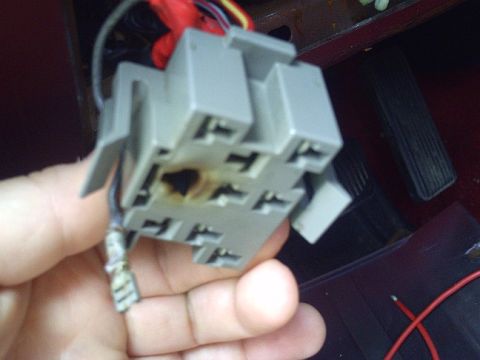

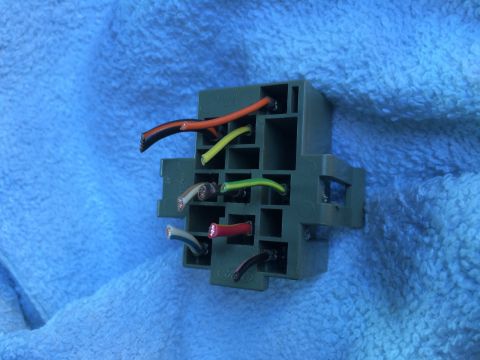

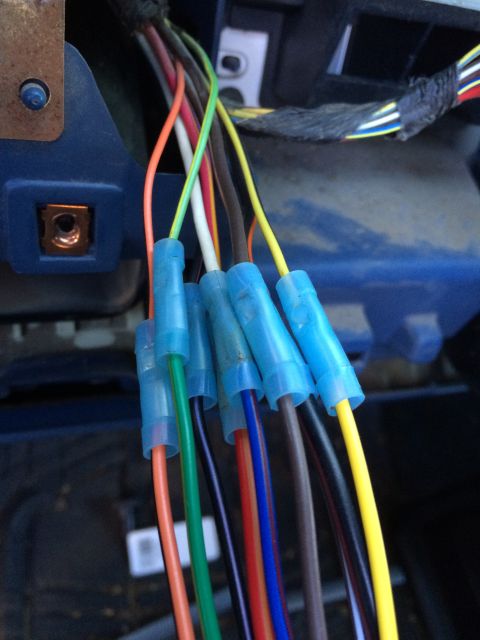

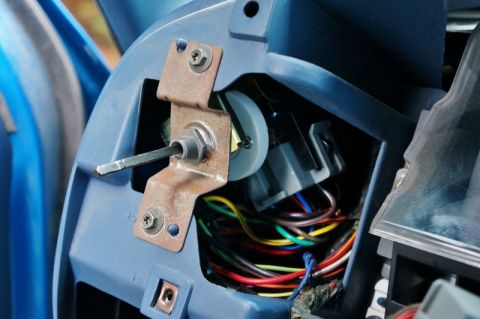

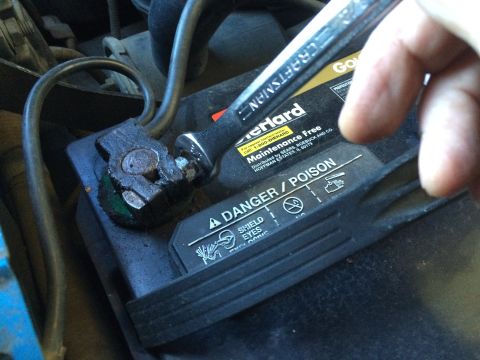

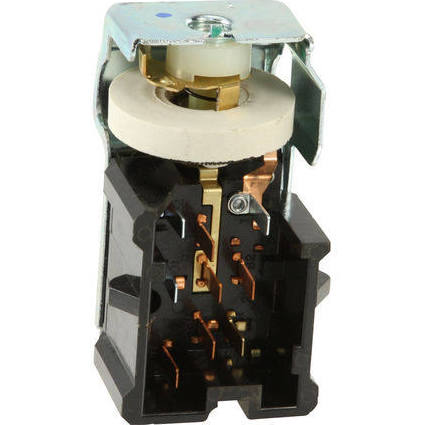

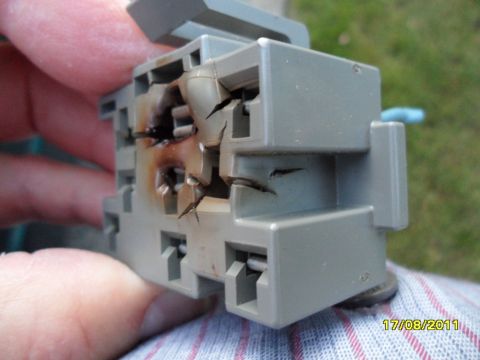

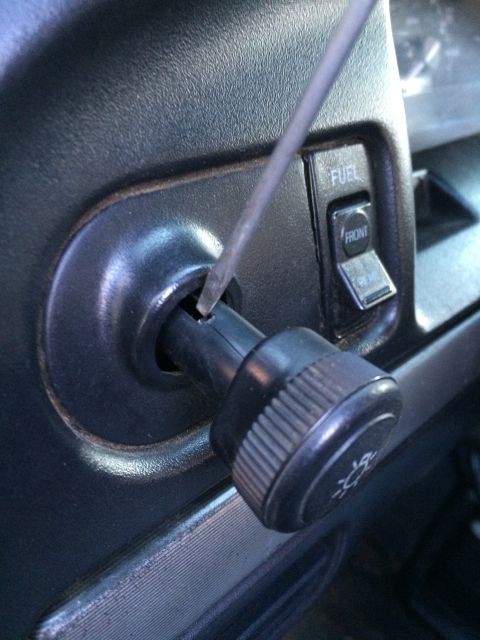

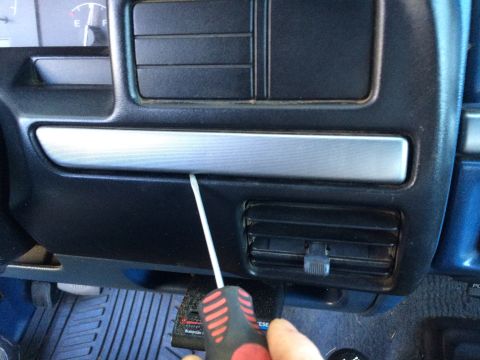

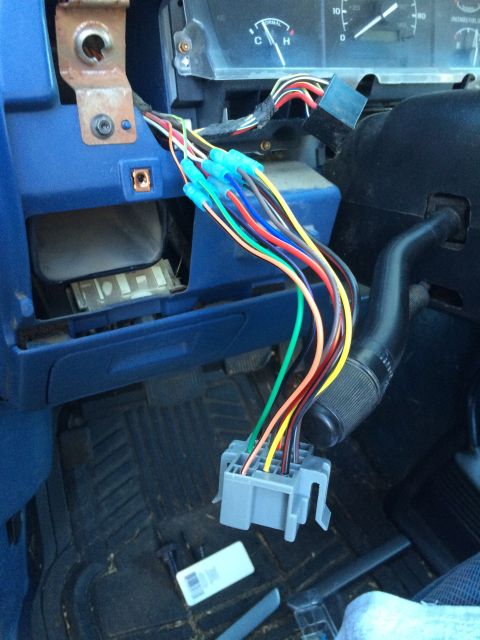

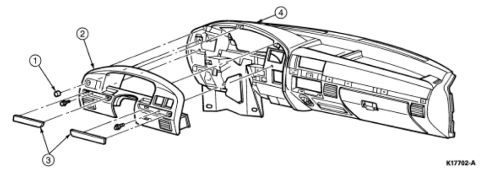

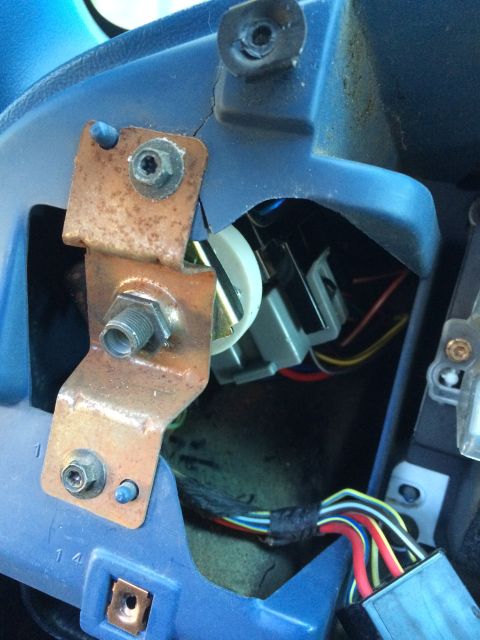

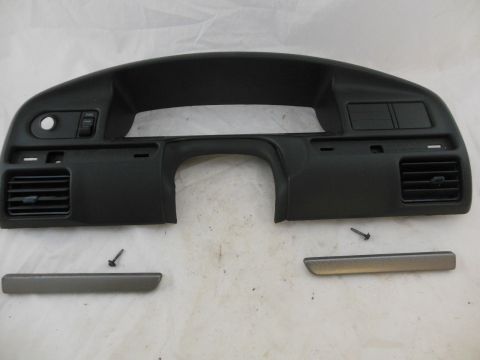

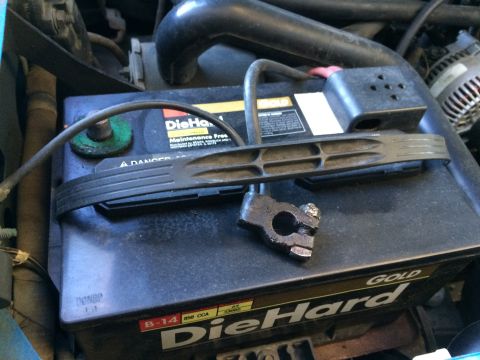

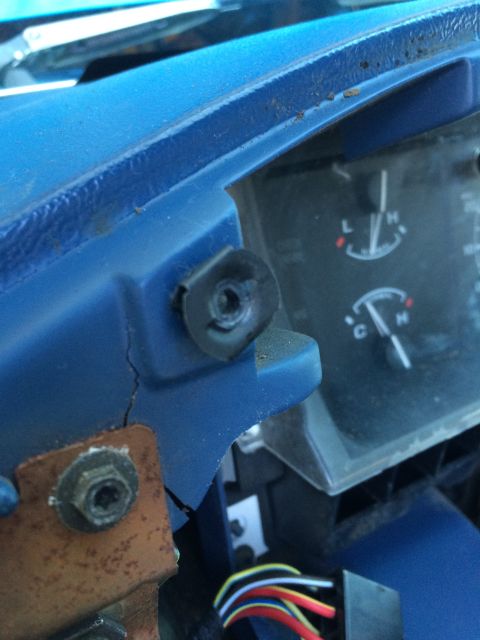

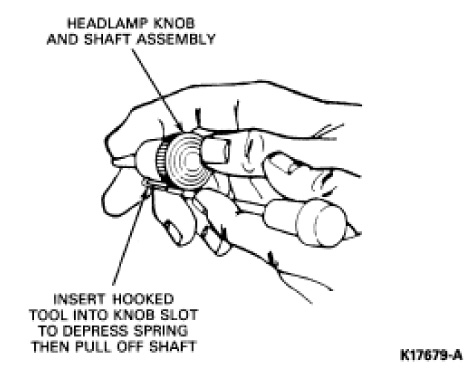

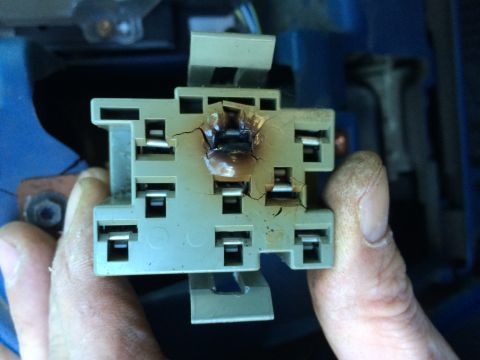

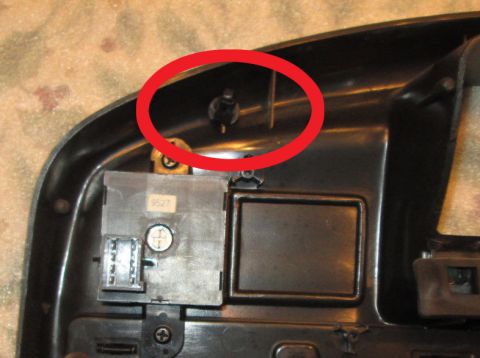

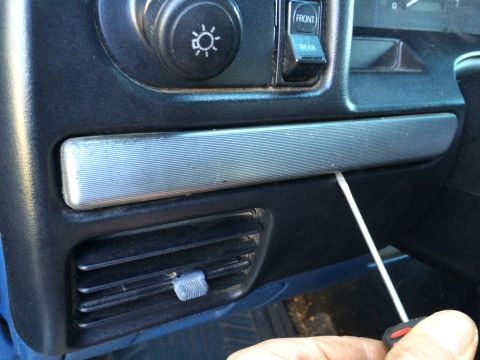

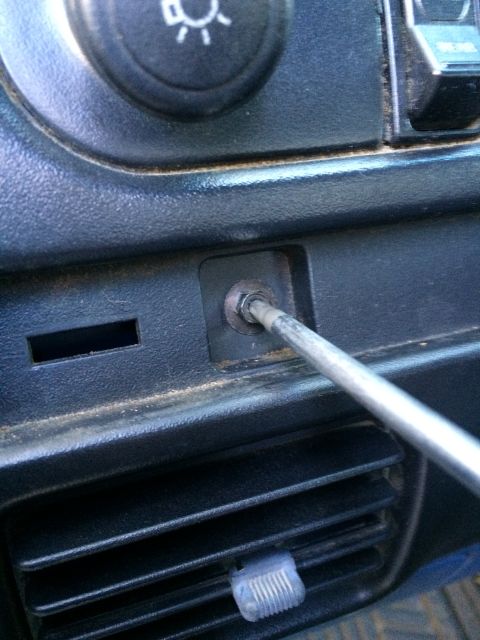

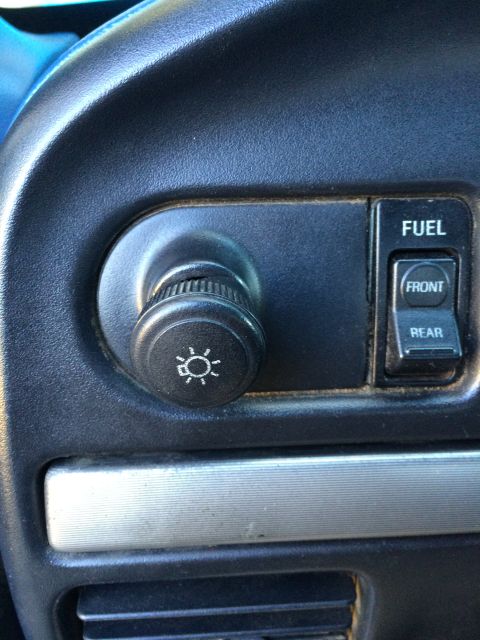

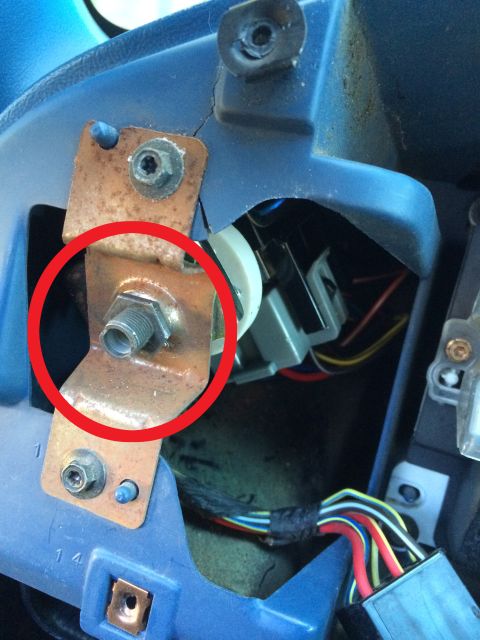

1990 Ford Bronco - Exploded parts diagram of the instrument panel/dashboard assembly with numbered component callouts. 1990 Ford Bronco - A close-up view of a car battery and its disconnected terminal clamp. 1990 Ford Bronco - Service procedure illustration showing a hooked tool inserted into the headlamp knob slot to depress the spring and remove the shaft. 1990 Ford Bronco - A screwdriver is used to turn the headlight switch knob inside a vehicle's interior. Adjacent buttons are labeled FUEL and FRONT. 1990 Ford Bronco - Interior view of a 1990 Ford Bronco dashboard, focusing on the headlight switch and air vent. 1990 Ford Bronco - A screwdriver is used to pry open a trim piece on the vehicle's dashboard near the air vents. 1990 Ford Bronco - A screwdriver is used to remove the headlight switch from the dashboard of a 1990 Ford Bronco. 1990 Ford Bronco - Close-up of a vehicle's headlight switch assembly, with a red circle highlighting a black knob. 1990 Ford Bronco - Close-up of a vehicle's dashboard interior, revealing gauges and exposed wiring. 1990 Ford Bronco - This is a dashboard trim piece, likely for a car's instrument cluster area. It includes air vents and openings for switches. 1990 Ford Bronco - A close-up view of a vehicle's headlight switch, showing internal components and markings. 1990 Ford Bronco - Close-up of a vehicle's headlight switch assembly, showing wiring and mounting hardware. 1990 Ford Bronco - This electrical relay socket shows significant heat damage and cracking. 1990 Ford Bronco - Close-up of a vehicle's headlight switch assembly, revealing its internal electrical components and connections. 1990 Ford Bronco - A green plastic wiring harness connector with various colored wires is shown against a blue textured background. 1990 Ford Bronco - Close-up view of a wiring harness with multiple colored wires connected by blue crimp connectors. 1990 Ford Bronco - Wiring harness for the dashboard of a 1990 Ford Bronco is shown disconnected. 1990 Ford Bronco - A close-up view shows a complex automotive wiring harness with various colored wires neatly connected. 1990 Ford Bronco - Interior view of a vehicle's dashboard controls, including a headlight switch and fuel selection buttons. 1990 Ford Bronco - A Craftsman wrench is used to tighten a corroded car battery terminal. The battery shows a 'Danger/Poison' warning. 1990 Ford Bronco - Front view of a 1992 Ford F-150 pickup truck with the hood open. 1990 Ford Bronco - This is a wiring harness connector with multiple wires, not a headlight switch. 1990 Ford Bronco - A close-up view of a vehicle headlight switch, showing its internal components and wiring terminals. 1990 Ford Bronco - This document lists automotive parts with their item numbers and part numbers. 1990 Ford Bronco - Close-up of a vehicle's headlight switch mounting bracket, showing its internal components and wiring. 1990 Ford Bronco - A hand holds a headlight switch mechanism, with a red arrow indicating a specific screw on the metal housing. 1990 Ford Bronco - Ford Genuine Parts box with a headlight switch knob and shaft. 1990 Ford Bronco - Interior view of a Ford truck, focusing on the dashboard and steering wheel area. 1990 Ford Bronco - Close-up of a damaged electrical connector, possibly related to a headlight switch, showing signs of burning. 1990 Ford Bronco - A burned electrical connector is held in a hand, showing damage to the internal contacts. 1990 Ford Bronco - Close-up of a damaged electrical connector showing signs of melting and cracking. 1990 Ford Bronco - A close-up view of a damaged electrical connector with visible signs of burning. 1990 Ford Bronco - A burnt electrical connector and its detached wire lie on a textured surface. 1990 Ford Bronco - This electrical relay socket shows signs of melting and damage to the plastic housing. 1990 Ford Bronco - The intricate wiring harness and mechanical components of a vehicle's headlight switch are visible. 1990 Ford Bronco - A black headlight switch knob is shown with a sunburst icon and a metal shaft, displaying part numbers and origin. 1990 Ford Bronco - This headlight switch has the part number 76871 056 and "China 12 119" printed on it. 1990 Ford Bronco - Service procedure illustration showing removal of the instrument cluster bezel from the dashboard. 1990 Ford Bronco - This electrical connector shows significant heat damage and cracking, indicating a failure.
