Column Shift to Floor Shift

From 2003 Ford Crown Victoria “SOLD”, documented by mRdot.

36 photos
← Back to this vehicle

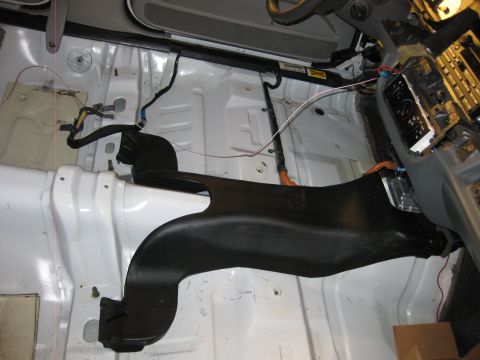

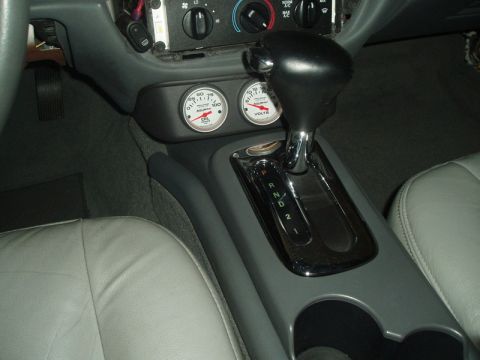

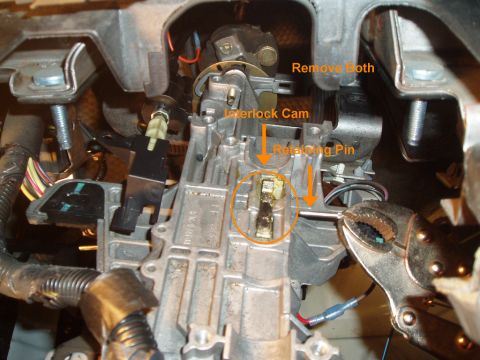

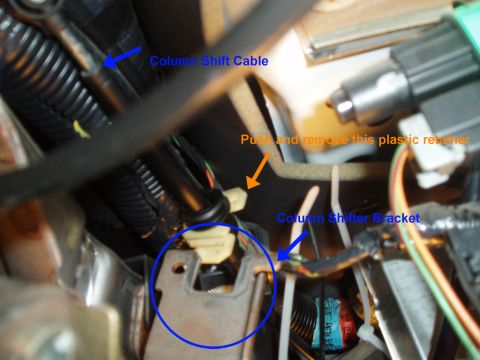

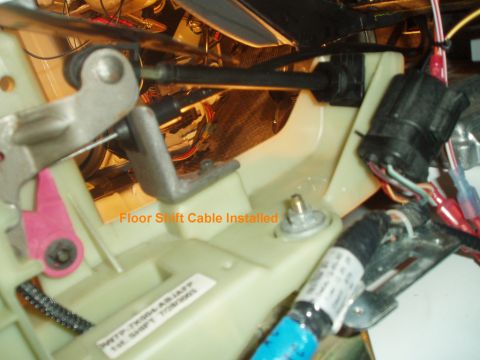

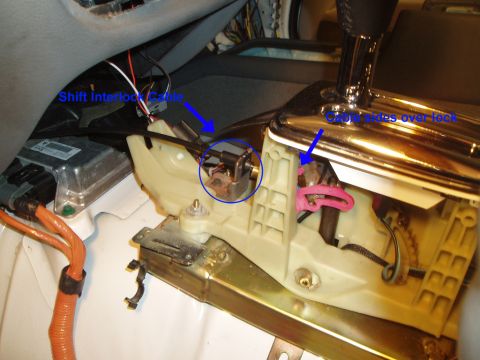

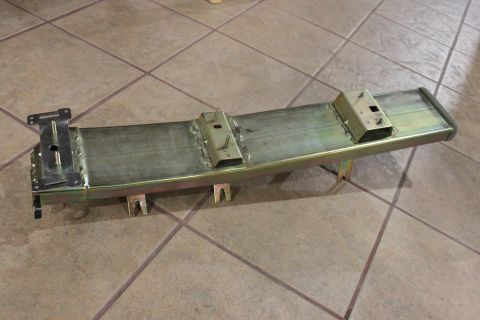

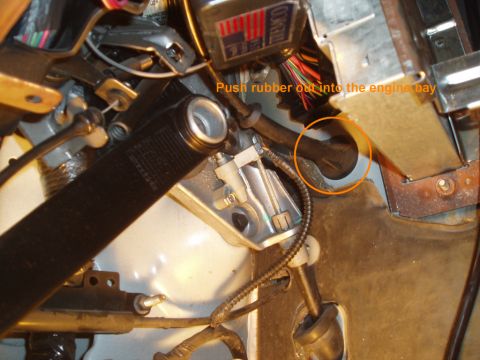

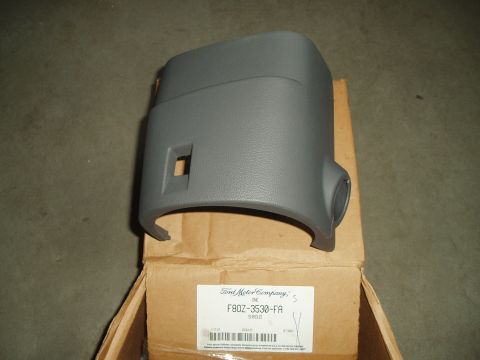

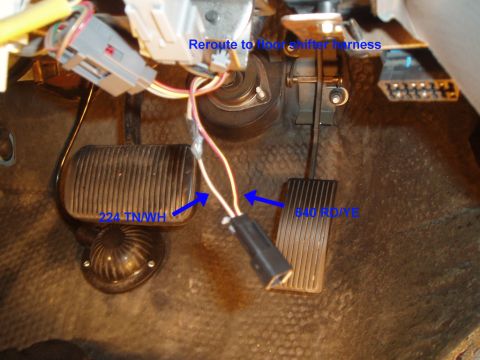

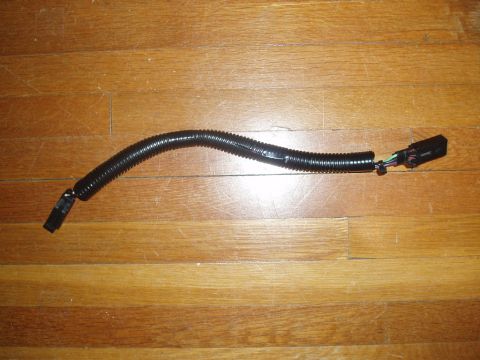

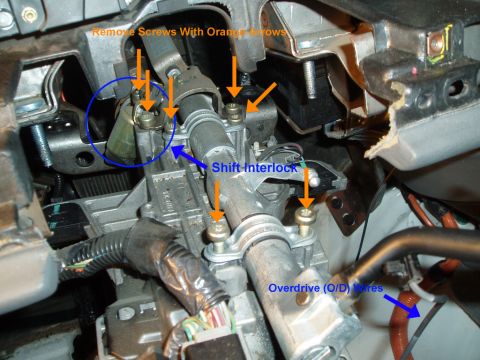

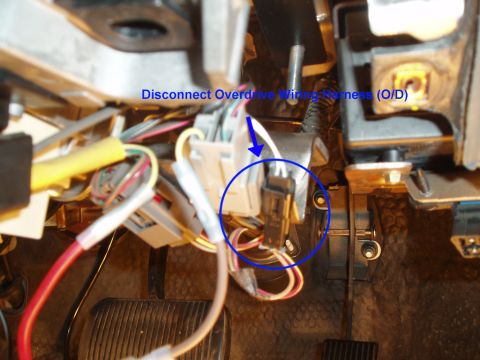

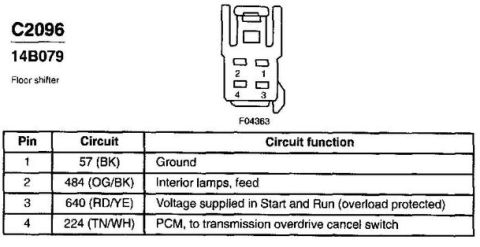

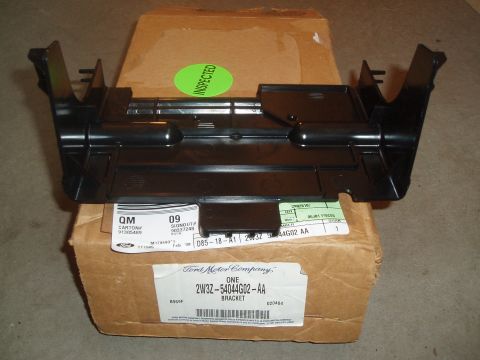

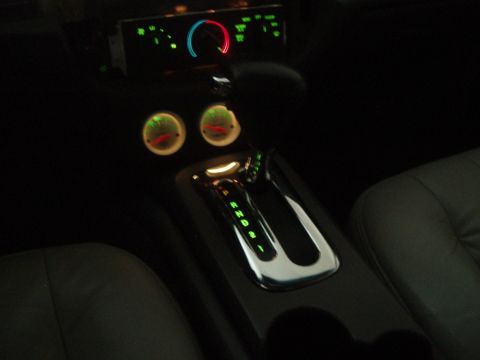

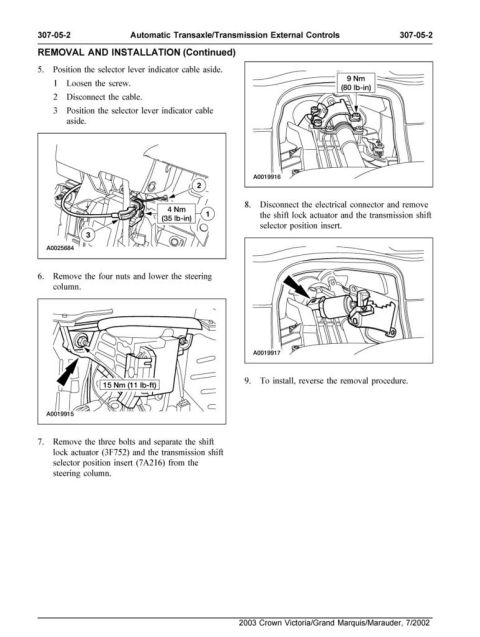

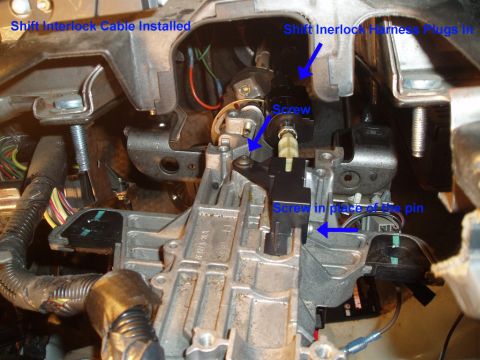

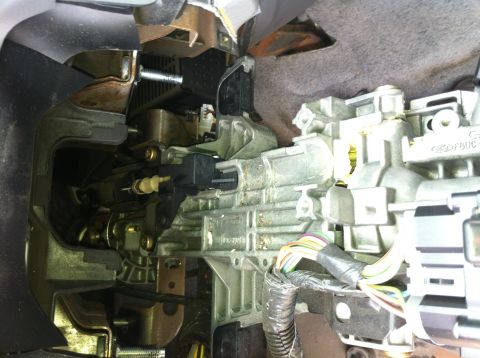

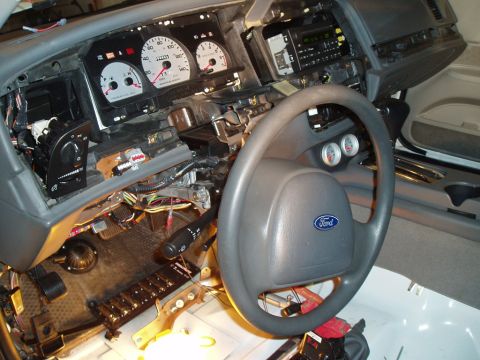

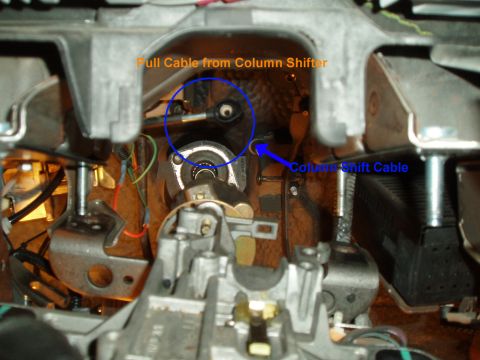

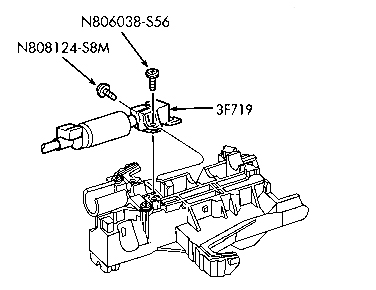

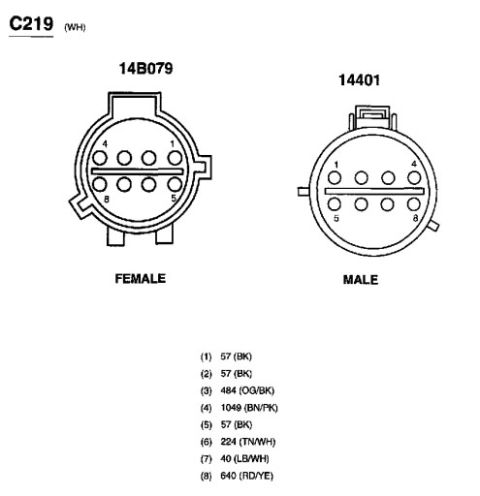

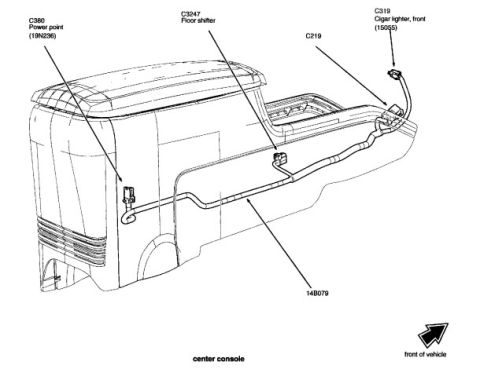

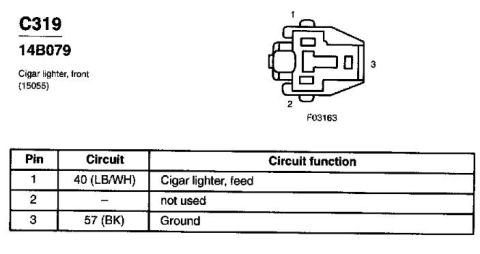

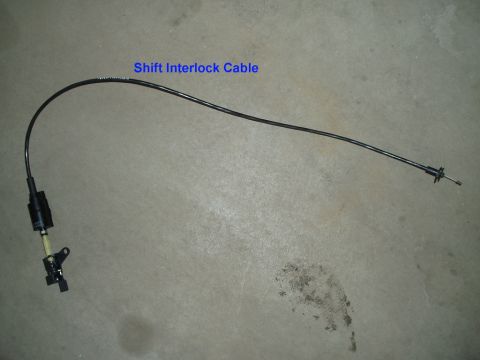

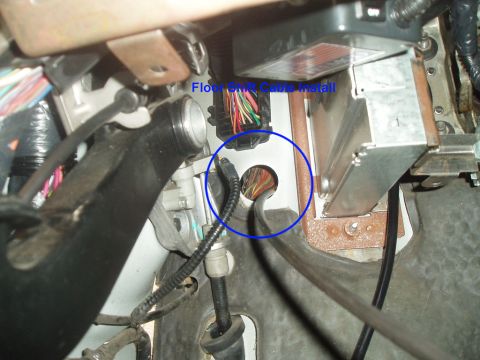

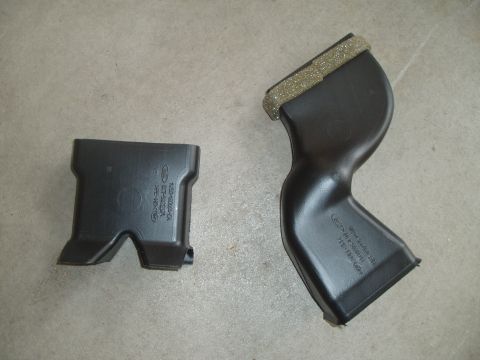

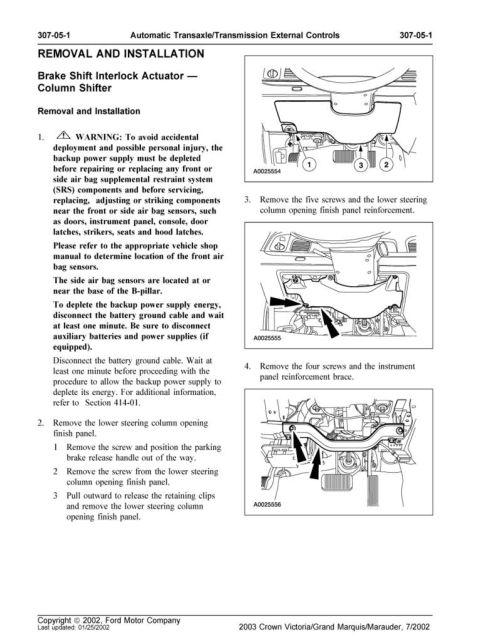

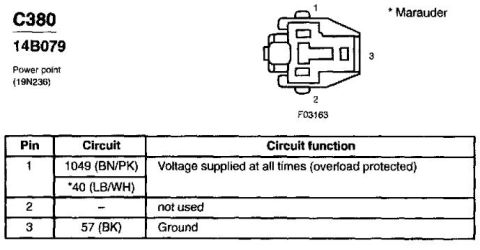

2003 Ford Crown Victoria - this is what we will be installing, read the guide in its entirety. 2003 Ford Crown Victoria - the sport receptacle is just included for reference in this picture. 2003 Ford Crown Victoria - i started by removing the seats, carpet and middle a/c floor duct, you will then need to follow this guide or one like it to drop the steer… 2003 Ford Crown Victoria - Service procedure page for 2003 Crown Victoria transmission external controls with numbered removal/installation steps, figures, and torque… 2003 Ford Crown Victoria - column dropped (taken after i removed the shifter) 2003 Ford Crown Victoria - make sure to remove the interlock connector from the column interlock (blue circle) 2003 Ford Crown Victoria - just pull the transmission cable off the column shifter, it won't get damaged, just pull stright back and hard. 2003 Ford Crown Victoria - The column shifter is now free, you will no longer need that or any of the other parts you removed, including the old column interlock and… 2003 Ford Crown Victoria - This part was the hardest, i started by taking a thick flat head screw driver on the other end of the pin (left side) and bending it at an… 2003 Ford Crown Victoria - floor shift interlock 02-04 (1W3Z-3F719-AA) i removed from a Lincoln Continental with floor shifter, i saved all the screws and ended up us… 2003 Ford Crown Victoria - note that the stock interlock connector will not reach, i used a spare Tremco unit to make an extension cable, in jimh874's guide on crownv… 2003 Ford Crown Victoria - part numbers for the screws to mount the interlock. 2003 Ford Crown Victoria - Close-up of a disassembled steering column showing the shift interlock cable and harness area, with blue text annotations pointing to the i… 2003 Ford Crown Victoria - Close-up of a disassembled steering column area showing a cast aluminum housing with a Ford 'F6DC' casting mark, exposed shift mechanism, m… 2003 Ford Crown Victoria - test the interlock, should be working. 2003 Ford Crown Victoria - use a small flat head screw driver to pull the taps on the plastic clip, once free push it off the metal bracket. 2003 Ford Crown Victoria - Hopefully, you have the floor shifter cable (6W3Z-7E395-A), otherwise you will need to follow jimh874's guide on crownvic.net and reroute y… 2003 Ford Crown Victoria - from the engine bay, feed the cable though the firewall and wrap under the steering wheel, then behind the dash, move the steering wheel to… 2003 Ford Crown Victoria - Close-up of a floor shift cable installation on a vehicle's transmission or steering column area, showing a metal shift lever, black cable… 2003 Ford Crown Victoria - this is the overdrive wiring. 2003 Ford Crown Victoria - Floor shift power pinout. Pins 1 and 2 can be tapped into at the HVAC (A/C) control panel and the rest of the wires in the floor shift harn… 2003 Ford Crown Victoria - Connector pinout chart for the C319 front cigar lighter showing three pins with circuit codes and functions. 2003 Ford Crown Victoria - inside the console bin. 2003 Ford Crown Victoria - Wiring harness routing diagram for the center console showing power point, floor shifter, and cigar lighter connectors. 2003 Ford Crown Victoria - main connector 2003 Ford Crown Victoria - installed and almost complete. **metal bracket not hard mounted yet. 2003 Ford Crown Victoria - Interior center console of a vehicle showing a black leather automatic shifter with P-R-N-D-2-1 gate, flanked by gray leather seats and two… 2003 Ford Crown Victoria - ** note this is the a/c duct that needs to be removed prior to installing floor shifter. 2003 Ford Crown Victoria - make sure you get all the a/c duct parts for the floor shift install. 1w3z-18c420-da rear (pictured left) 1w3z-18c420-ca front (pictured ri… 2003 Ford Crown Victoria - this is the bracket that will mount both the marauder gauge pod or sport receptacle. mounts under the dash, in the same place as the ashtra… 2003 Ford Crown Victoria - floor shift steering wheel shroud top. this is the paint to match part number, its primed and ready for paint. part number: F8OZ-3530-FA 2003 Ford Crown Victoria - 6w7z-18c420-aa metal bracket (where the shifter mounts) also acts as part of the rear a/c duct work. 2003 Ford Crown Victoria - OEM sport/marauder dash mount with 2W3Z-54044G02-AA slidden into the frame with two bolts locking it in place on the top. 2003 Ford Crown Victoria - A black plastic and metal automotive component, likely a console or tray assembly with a mounting bracket, photographed on a pink surface.… 2003 Ford Crown Victoria - Close-up of a black molded plastic automotive component with mounting brackets, integrated screws, and a triangular bracket featuring three… 2003 Ford Crown Victoria - Close-up of a black plastic and painted metal automotive component, possibly a radiator support or bracket assembly, with mounting slots, t…
