Ford Crown Victoria Center Console Connector Locations C380 C319 C3247 Diagram

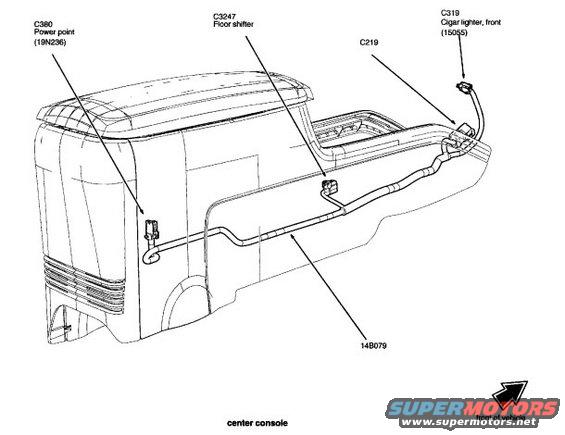

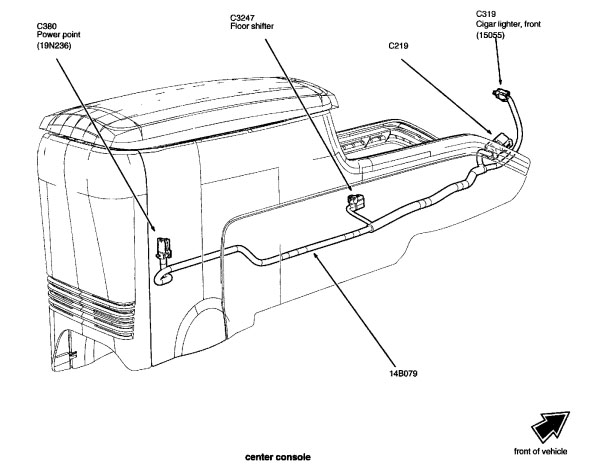

This document is a line-art connector location illustration of a vehicle's center console wiring, apparently from a Ford factory wiring/connector location manual. It shows the console assembly drawn in isometric view with a wiring harness (identified by base part number 14B079) routed along the side of the console. Four callouts identify electrical connectors and components: C380, the power point connector (part reference 19N236), located at the front lower area of the console; C3247, the floor shifter connector, near the middle/top of the console; C219, a connector near the rear of the console; and C319, the front cigar lighter connector (part reference 15055) at the rear of the console. An arrow at the bottom right labeled 'front of vehicle' establishes orientation, and the drawing is captioned 'center console.' A reader can use this diagram to physically locate these connectors and the 14B079 console harness when diagnosing power point, cigar lighter, or floor shifter circuit problems. The document itself gives no year, make, or model text, though the Ford-style part and connector numbering and console shape are consistent with a Ford application such as the uploader's claimed 2003 Crown Victoria.
