Ford C319 Cigar Lighter Connector Pinout - Circuit 40 LB/WH Feed, 57 BK Ground

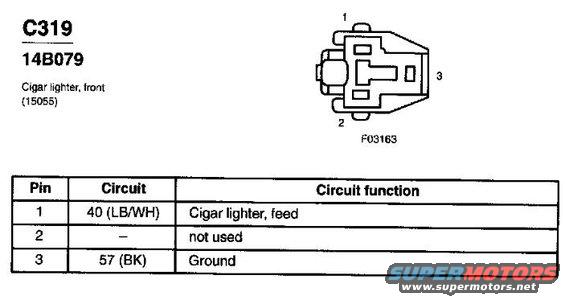

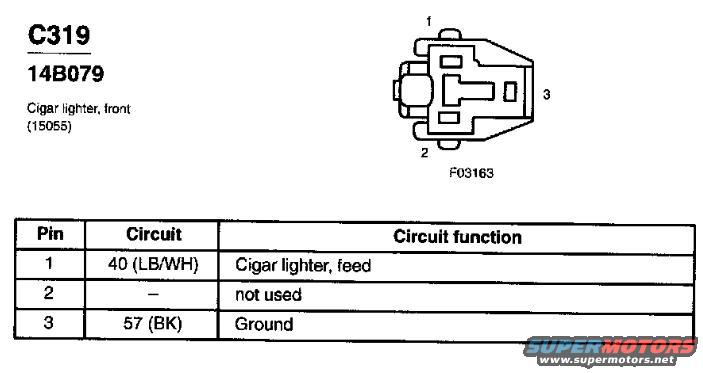

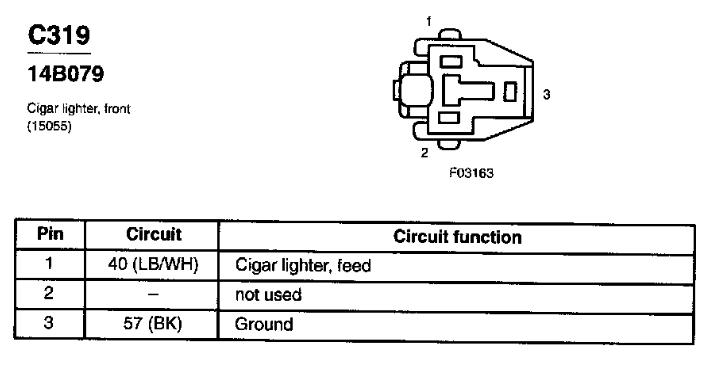

This document is a Ford wiring reference page for connector C319 (part group 14B079), which serves the front cigar lighter (component 15055). It includes a connector face illustration (figure F03163) showing the physical layout of the three pin cavities, and a pinout table listing each pin, its circuit number, wire color, and function. Pin 1 carries circuit 40 with a light blue/white (LB/WH) wire, which is the cigar lighter feed (power). Pin 2 is not used. Pin 3 carries circuit 57 with a black (BK) wire, which is the ground. From this page a reader can identify which wire supplies power to the cigar lighter, which wire is ground, and how the connector cavities are numbered when viewed at the connector face. This is useful for diagnosing a dead cigar lighter/power point, tapping accessory power, or repairing damaged wiring at the connector. The document itself does not state a model year, vehicle model, or engine applicability; it was uploaded as applying to a 2003 Ford Crown Victoria, and nothing visible contradicts that claim.
