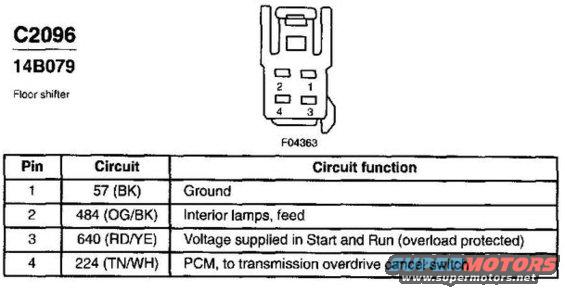

Floor shift power pinout. Pins 1 and 2 can be tapped into at…

Floor shift power pinout. Pins 1 and 2 can be tapped into at the HVAC (A/C) control panel and the rest of the wires in the floor shift harness are for auxiliary power outlet and cigarette lighter. I included the connector views for both. **both ports are power at all times.
Floor shift power pinout. Pins 1 and 2 can be tapped into at the HVAC (A/C) control panel and the rest of the wires in the floor shift harness are for auxiliary power outlet and cigarette lighter. I included the connector views for both. **both ports are power at all times.Original file
Floor shift power pinout. Pins 1 and 2 can be tapped into at the HVAC (A/C) control panel and the rest of the wires in the floor shift harness are for auxiliary power outlet and cigarette lighter. I included the connector views for both. **both ports are power at all times.

Column Shift to Floor ShiftView all 36

Steering column shift interlock cable and harness with annotated screws and plug. 2003 Ford Crown Victoria photo 2003 Ford Crown Victoria photo Under-dash steering column area with arrow noting to push rubber grommet into engine bay 2003 Ford Crown Victoria photo Installed floor shift cable with metal lever, wiring connector, and 'Floor Shift Cable Installed' text 2003 Ford Crown Victoria photo 2003 Ford Crown Victoria photo 2003 Ford Crown Victoria photo Car interior center console with automatic shifter and aftermarket oil and volt gauges 2003 Ford Crown Victoria photo C319 cigar lighter connector pinout diagram with pin/circuit function table 2003 Ford Crown Victoria photo 2003 Ford Crown Victoria photo 2003 Ford Crown Victoria photo 2003 Ford Crown Victoria photo 36photos in this albumView all

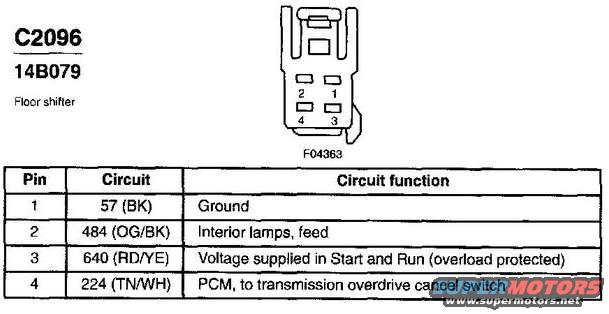

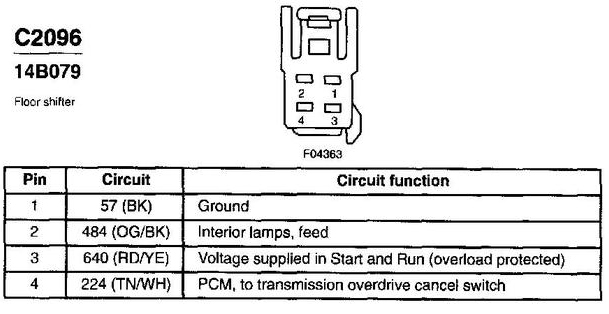

Floor shift power pinout.

Pins 1 and 2 can be tapped into at the HVAC (A/C) control panel and the rest of the wires in the floor shift harness are for auxiliary power outlet and cigarette lighter. I included the connector views for both.

**both ports are power at all times.

Owner caption · Photo 80 of 316
