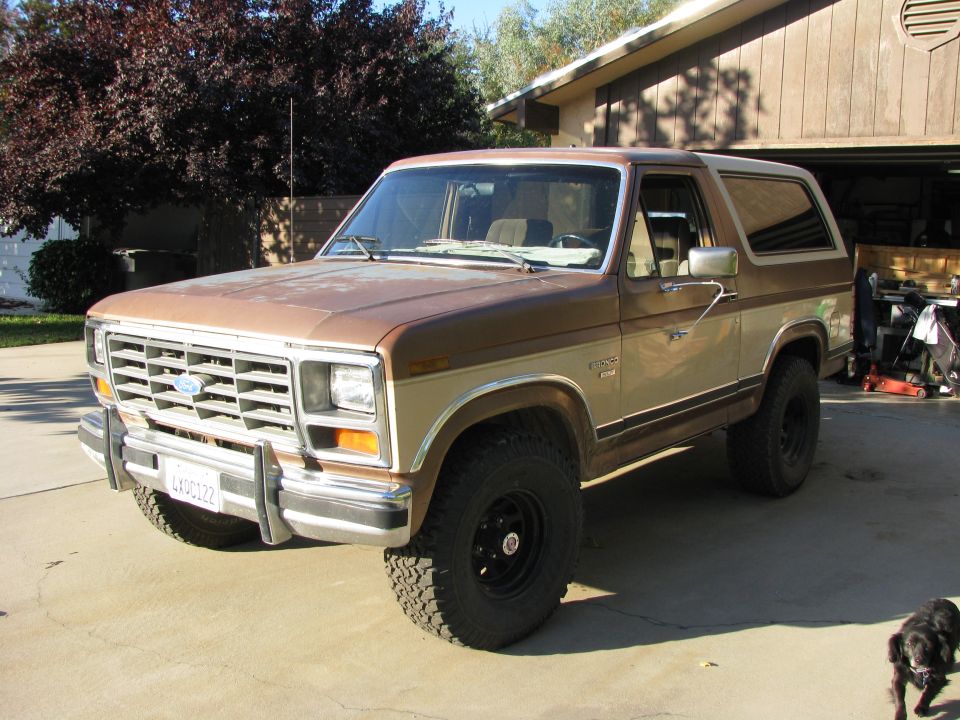

Two-tone brown Ford Bronco SUV parked in driveway, front three-quarter view with chrome bumper.
Home/ Registry/ Ford/ Bronco/ 1980-1986/ 1986 Bronco supermotors.net/registry/21207

1986 Ford Bronco

documented by slim68 47 photos documented since 1 years documented ♡ Follow this build

Photos

1986 Ford Bronco: worn & tired treads 1986 Ford Bronco parked in driveway, brown and tan two-tone paint Side view of a brown and tan Ford Bronco parked in a driveway Brown and tan 1986 Ford Bronco, 3/4 front view 1986 Ford Bronco: good for what they are...spare tires. 1986 Ford Bronco: much better with the 33x12.50x15 tires 1986 Ford Bronco: new tires & wheels 1986 Ford Bronco: better cables Engine bay close-up of alternator and surrounding components 1986 Ford Bronco: new air filter housing (from an '87 f-150) and overflow/wiper fluid resivoirs. 1986 Ford Bronco: moved coil from under a/c compressor to where the air filter housing used to be. 1986 Ford Bronco: original air filter housing that was over the engine...pos. 1986 Ford Bronco: new wheels and tires 1986 Ford Bronco: drain the coolant, nice and green 1986 Ford Bronco: intake hoses removed 1986 Ford Bronco: vacuum lines, throttle and tv cables removed, wiring for iac, egr, tps and dissy unplugged, coolant hoses rem… 1986 Ford Bronco: torx 40 for the bitch of a bolt 1986 Ford Bronco: upper intake removed. 1986 Ford Bronco: kind of fuzzy, not too bad for 131k miles 1986 Ford Bronco: now to remove the lower manifold 1986 Ford Bronco: fuel, electrical, and vacuum lines removed. all bolts loose. time to yank it. 1986 Ford Bronco: nice and easy. now to clean grease and gasket material off. 1986 Ford Bronco: after cleaning gasket surfaces, removed valve covers and replaced those gaskets as well. 1986 Ford Bronco: now it's time to replace the timing chain 1986 Ford Bronco: loosened wp bolts, removed one at a time and poked thru cardboard in the position they go. 1986 Ford Bronco: now for the bottom four pan bolts. also removed oil pressure sender unit and extension. 1986 Ford Bronco: all cleaned up and ready for new sender. 1986 Ford Bronco: time for cleaning 1986 Ford Bronco: cover off, lots of slack in the chain. nice aluminum and plastic cam gear. there was a little bit missing on… 1986 Ford Bronco: nice and clean now 1986 Ford Bronco: now to chase all the threads. once that was done i sprayed carb cleaner to get rid of all the debris from the… 1986 Ford Bronco: new cloye double roller timing set. i left the fuel pump eccentric off since i have electric fuel pumps 1986 Ford Bronco: soaking cover in solvent to help get it clean. 1986 Ford Bronco: while front cover is soaking i started work on the balancer 1986 Ford Bronco: fuzzy picture but end is clean now but grooved from old seal 1986 Ford Bronco: installing sleeve after putting loctite on. nice flat piece of uhmw and dead blow put sleeve on nice and easy. Brake drum or hub on a cluttered workshop bench 1986 Ford Bronco: pretty clean now 1986 Ford Bronco: had to knock the locating pins out a little, they were flush with the cover. 1986 Ford Bronco: new seal installed
Browse all 47 photos

Albums · 4

How the owner organised this build. Open an album for every photo in it.

whats been done so far - 1986 Ford Bronco whats been done so far 13 photos intake removal - 1986 Ford Bronco intake removal 10 photos timing chain replace - 1986 Ford Bronco timing chain replace 21 photos used parts - 1986 Ford Bronco used parts 3 photos
