Throttle Body

From 1994 Ford Bronco “Eddie Bauer”, documented by jowens1126.

26 photos
← Back to this vehicle

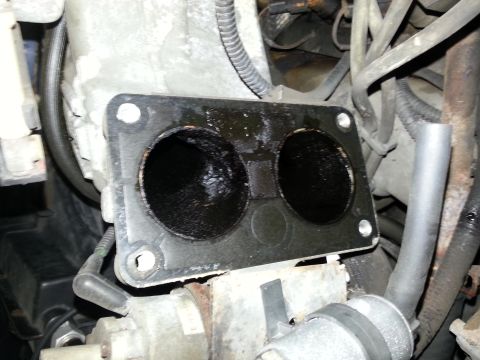

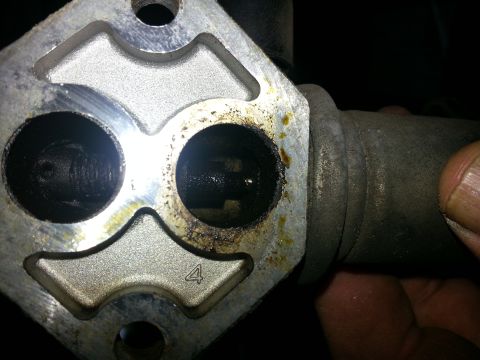

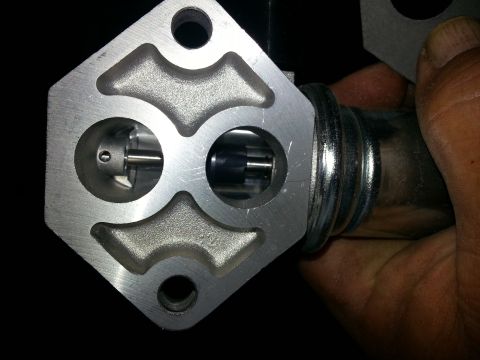

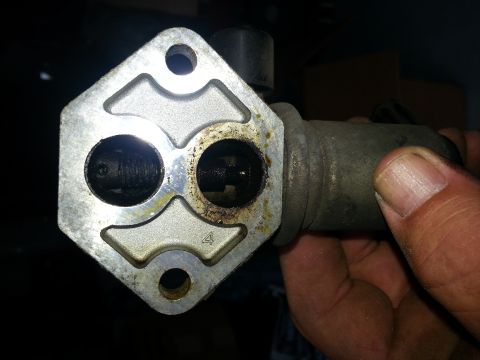

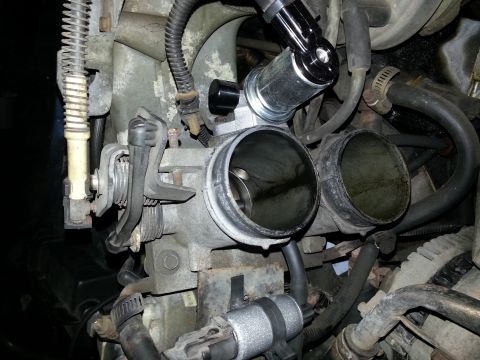

1994 Ford Bronco - A close-up view of a throttle body, a critical engine component, held by a person's hand. 1994 Ford Bronco - Close-up of a throttle body, showing internal wear and a numerical marking. 1994 Ford Bronco - A throttle body part is shown in detail, highlighting its internal components and metallic construction. 1994 Ford Bronco - Throttle body assembly with attached components and hoses. 1994 Ford Bronco - Close-up of a dirty throttle body, showing internal components and some fluid leakage. 1994 Ford Bronco - Close-up of a dirty throttle body, showing internal components and mounting points. 1994 Ford Bronco - A close-up view of a dirty throttle body gasket, showing significant carbon buildup within its passages. 1994 Ford Bronco - This is a throttle body, a component of an engine's intake system. 1994 Ford Bronco - Close-up view of a throttle body sensor connector showing exposed wires and an orange seal. 1994 Ford Bronco - Hand holding a damaged electrical connector with exposed wires and orange tape. 1994 Ford Bronco - An automotive electrical connector and a loose terminal are shown on a workbench. 1994 Ford Bronco - A close-up view of a throttle body cable linkage being worked on, with tools and wiring visible. 1994 Ford Bronco - A person uses pliers to adjust a component connected to a white cable. 1994 Ford Bronco - Working on a vehicle component, possibly a throttle body, with tools. 1994 Ford Bronco - A person is using pliers to adjust a throttle body linkage, with a SuperMotors.net watermark visible. 1994 Ford Bronco - A close-up view of a throttle body part with wires and a metal rod being manipulated. 1994 Ford Bronco - A close-up view shows a throttle body component being worked on with a tool and electrical wires. 1994 Ford Bronco - Close-up of a wiring harness connector and a tool crimping a wire terminal. 1994 Ford Bronco - A Motorcraft throttle body sensor, part number CX-1228, is shown with its wiring harness. 1994 Ford Bronco - Fiveology Racing TPS calibration kit instruction sheet: throttle position sensor signals .6-4.585V, set idle to .96-.98 volts by rotating t… 1994 Ford Bronco - Numbered TPS calibration procedure: install jumper harness inline, warm engine, disconnect IAC, set idle, rotate sensor to .96-.98 volts, t… 1994 Ford Bronco - TPS calibration kit instruction page describing throttle position sensor operation, .6-4.585V signal range and idle adjustment to .98-1 vol… 1994 Ford Bronco - Close-up view of a throttle body component, showing mechanical details and warning text. 1994 Ford Bronco - This image shows a close-up view of mechanical components, likely part of a throttle body assembly, with visible rust on a bolt. 1994 Ford Bronco - Close-up view of a throttle body linkage mechanism, showing metal components and a yellow-striped hose. 1994 Ford Bronco - Throttle body linkage assembly with visible part number E6TE 60.
