OBA

From 1986 Ford Bronco, documented by bebop_man.

22 photos
← Back to this vehicle

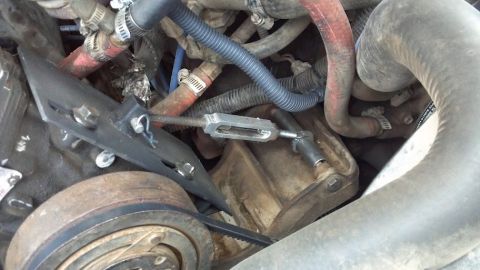

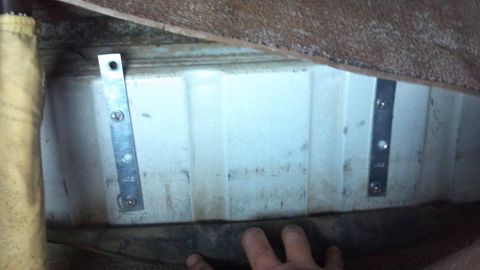

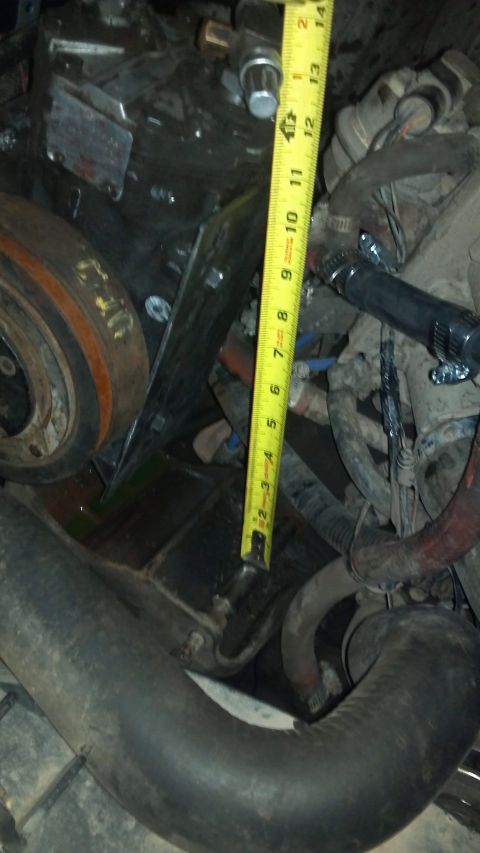

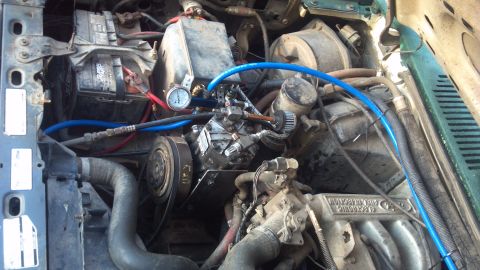

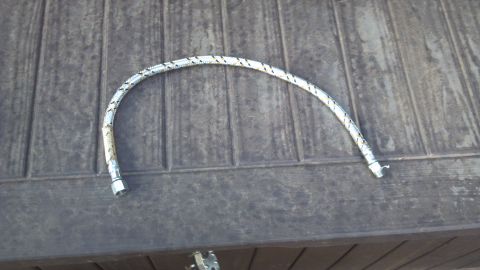

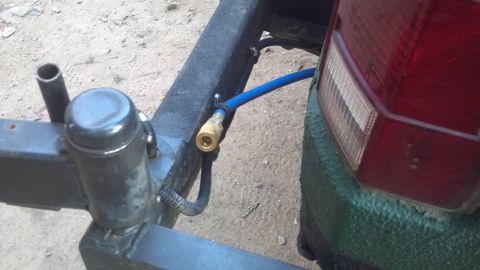

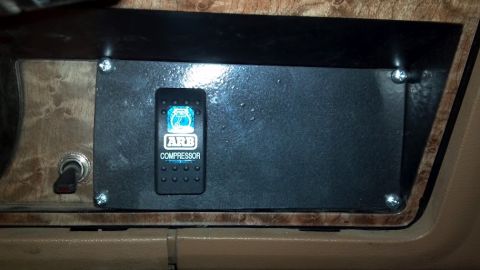

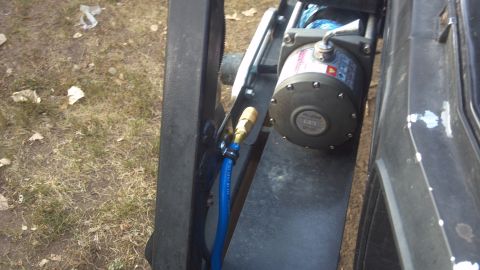

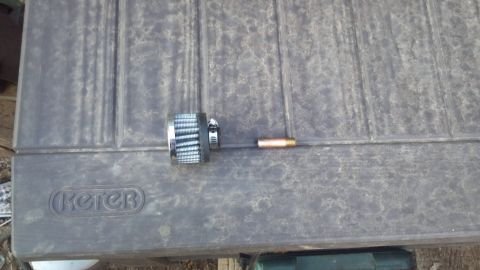

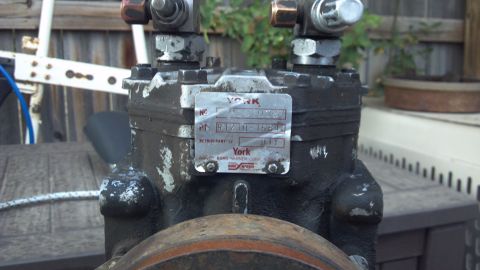

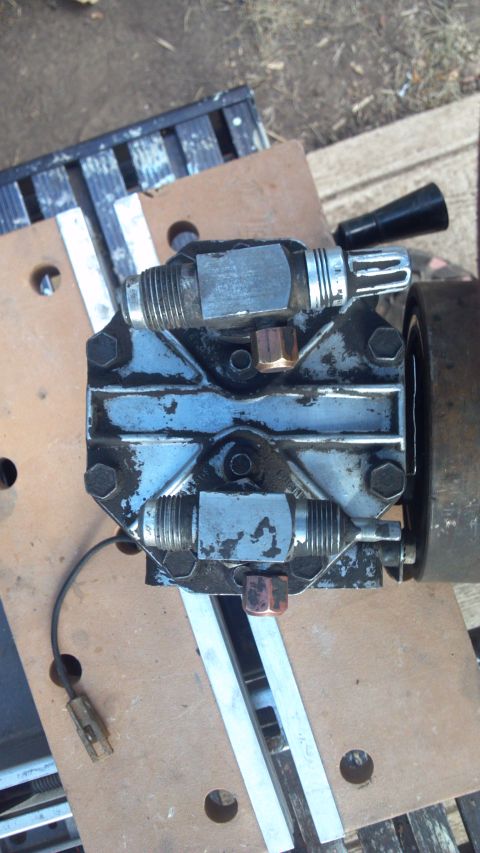

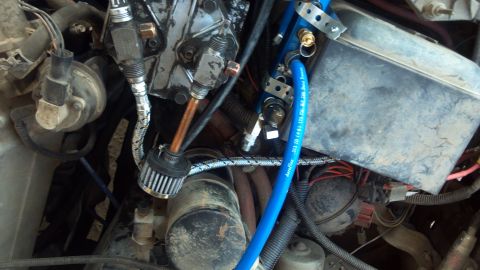

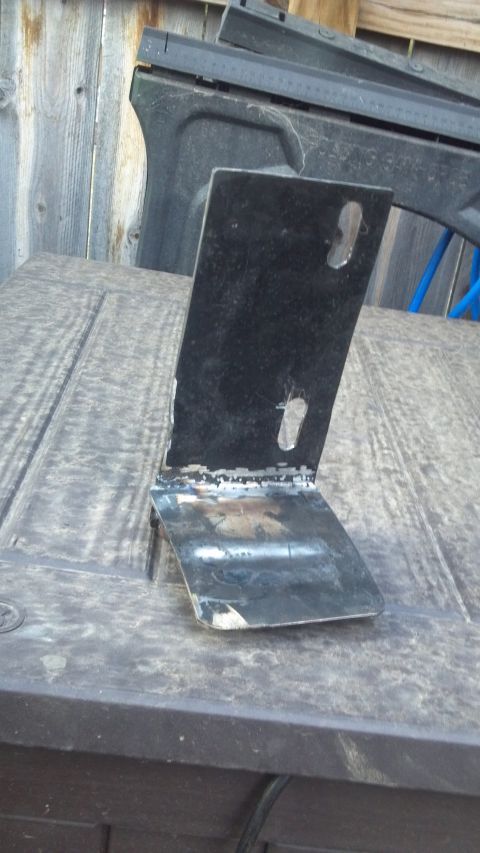

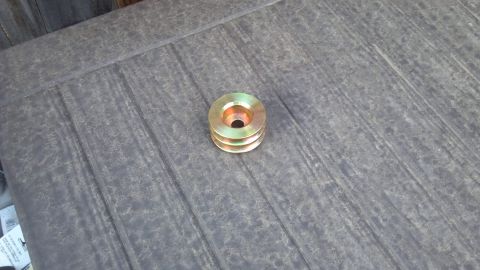

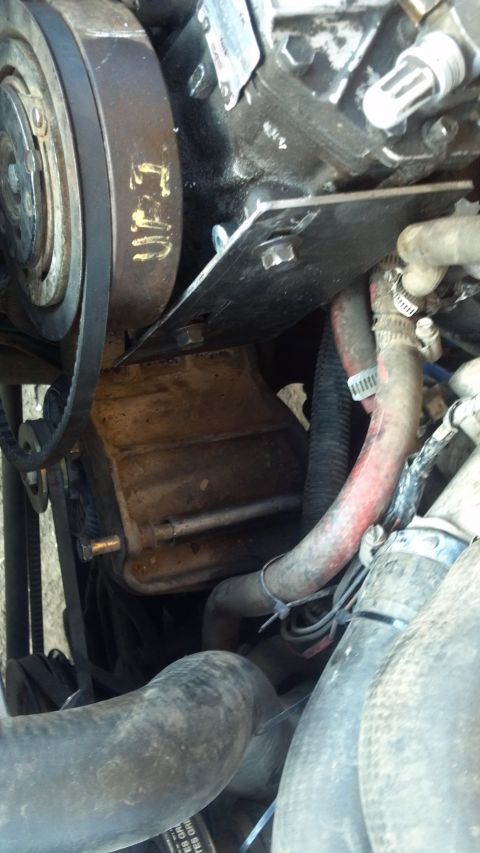

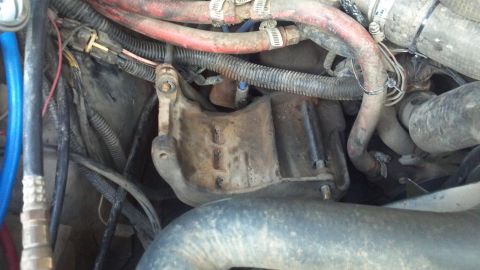

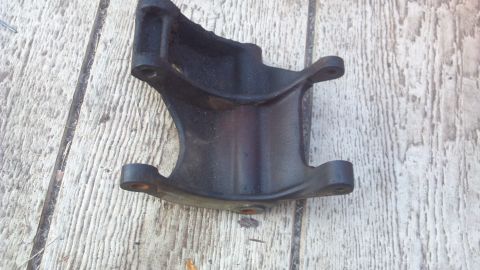

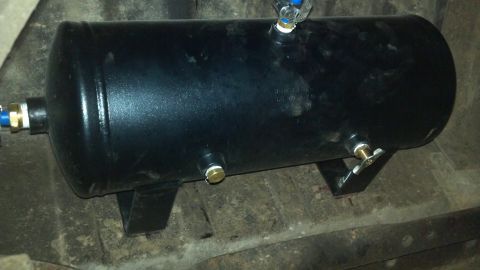

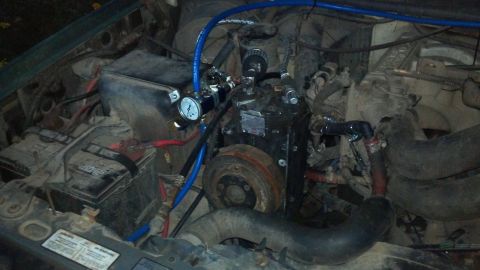

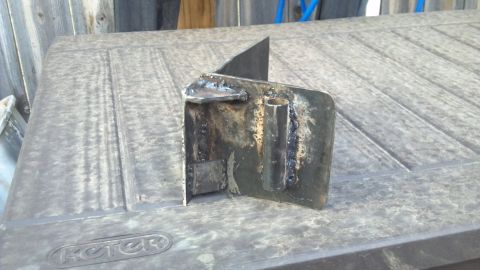

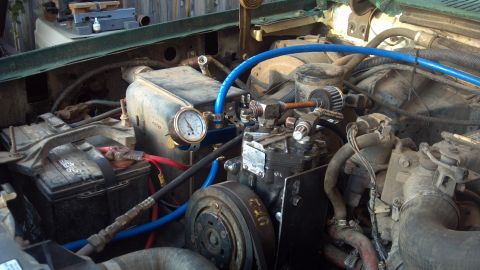

1986 Ford Bronco - York 210 R A/C compressor from a '69 TravelAll. York compressors are desired for this kind of upgrade because unlike most A/C compressors t… 1986 Ford Bronco - The manufacturer's plate. With the engine idling at 750 RPM (taking into account the diameter of the crankshaft pulley and the alternator p… 1986 Ford Bronco - Looking down on the York. The fitting on the left is the intake, and I tapped it out for 1/8 NPT. The fitting on the right is the discharge… 1986 Ford Bronco - 24" flexible oil line. I went with the braided steel line as the discharge side of the compressor can get very hot. 1986 Ford Bronco - When I upgraded the alternator to the 165 amp 3G, it only had a single v-belt pulley. In order to drive the York, I had to pick up a dual v… 1986 Ford Bronco - K&N 62-1320 air filter and a short chunk of pipe. The filter slips on one end, the other threads into the intake of the compressor. 1986 Ford Bronco - Smog pump bracket. The round tube will house the bolt on the left, which will be the pivot point for tightening the belt. 1986 Ford Bronco - My homemade bracket. 1986 Ford Bronco - Ignore the booger welds. My tiny little 20A welder was maxed out working on this. 1986 Ford Bronco - I'm thinking about some kind of turnbuckle with clevis mounts on the bracket and the round tube. The angle of the tape measure approximates… 1986 Ford Bronco - Original smog bracket. My custom bracket attaches to the two upper tabs. 1986 Ford Bronco - Rear air chuck. 1986 Ford Bronco - Front air chuck 1986 Ford Bronco - 2.5 gallon air tank. One line supplies the tank, the other leads to the rear air chuck. 1986 Ford Bronco - These backing plates support the air tank. This is the hump under the rear seat. 1986 Ford Bronco - York 210 R air conditioning compressor from a '69 IH Travelall. I removed the smog pump, leaving the bracket in place. One air line runs to… 1986 Ford Bronco - I still need a brace from the plate to the tube so I can adjust the pivot angle to tighten the belt. I'm thinking some threaded rod with a… 1986 Ford Bronco - Looking down on top of the setup. The steel braided line is the outlet from the compressor, and will screw into the check valve of the mani… 1986 Ford Bronco - Close-up view of a vehicle's engine bay, showing the AC compressor and a pressure gauge. 1986 Ford Bronco - Here's the York mounted to the bracket, air lines all hooked up, and heater hoses re-routed. All that's left is the electrical hookup, the… 1986 Ford Bronco - I picked up a swivel eye rod with a 5/16 eye and a 5/16-18 thread. I matched it to a 5/16 turnbuckle from the local hardware store. I got a… 1986 Ford Bronco - I covered the little pocket to the right of the steering wheel with a small piece of aluminium, painted it, and carefull cut a hole for an…
