Album section

Various work

From 1996 Ford Bronco “B3”, documented by Kingfish999.

33 photos
← Back to this vehicle

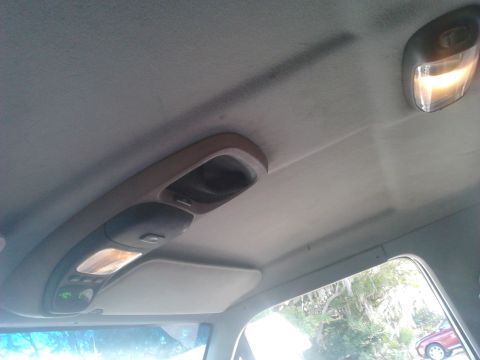

1996 Ford Bronco - Installed the Overhead Console from my old 96 and installed it on this. now I have 2 dome lights. still have to get the temp sensor and wir… 1996 Ford Bronco - blue LED interior lights 1996 Ford Bronco - finally got around to replacing the smashed bumper caused from the previous owner somehow. this was before I cleaned all the grime from sit… 1996 Ford Bronco - Installing a Transgo shift kit into its E4OD. was going smoothly till I had to take the solenoid pack off. the connector going through the… 1996 Ford Bronco - F250 leafs from a 80-96 truck. they added about 3 inch of lift in the rear and they are direct swap to an 80-96 bronco/f150. they defiantly… 1996 Ford Bronco - because of the rear disk conversion, I swapped the master cylinder and brake booster. the brake booster is from a similar year F350 and is… 1996 Ford Bronco - original grille heres the aftermarket grille for comparison [url=http://www.supermotors.net/registry/media/1060638] http://www.supermotors.… 1996 Ford Bronco - aftermarket grille bought on ebay for about $50. unfortunately the installation quality was very poor. EVERY part of it had to be modified.… 1996 Ford Bronco - Floor in the rear was collapsing from stuff in the back bouncing around offroad. carpet was ruined and nasty. 1996 Ford Bronco - ripped the carpet out. you can see how the floor was collapsed down from weight of big toolbox and jacks bouncing around when offroad 1996 Ford Bronco - cut 3/4 inch wood panel 1996 Ford Bronco - this axle was an odd 3.73 gear ratio with an open differential. i re-geared it to 4.10 gear ratio with a junkyard Trac-Lok limited slip. i… 1996 Ford Bronco - this is an factory aluminum differential cover from newer Ford 10.5 Sterling axle which direct swaps onto older 10.25 Sterling axles. i pai… 1996 Ford Bronco - I regeared the front Dana 44 to 4.11 gear ratio and added a TrueTrac limited slip differential. i didnt take pictures of the install. i als… 1996 Ford Bronco - dam cheap headers. the header surface isnt perfectly flat and the inclueded gaskets had ports way too big 1996 Ford Bronco - blew up the H yoke of the double cardan joint 1996 Ford Bronco - Close-up view of the fuel pump assembly and associated lines, accessed from beneath the vehicle's body. 1996 Ford Bronco - A close-up view of a fuel pump strainer being held, with a white filter element visible in the background. 1996 Ford Bronco - A disassembled fuel pump assembly, complete with filter sock and wiring, rests on a green truck bed next to a pair of pliers. 1996 Ford Bronco - replacing TracLok clutches in the 10.25" with the 2-pinion Ford case. 1996 Ford Bronco - broke my driveshaft again. the u-joint broke this time but the H-yoke is competently warped 1996 Ford Bronco - broke my driveshaft again. the u-joint broke this time but the H-yoke is completly warped and probably cause of the issue. even the caps fr… 1996 Ford Bronco - Close-up view of the power steering pump and associated hoses and belts in a vehicle engine bay. The pump is black and mounted below a ribb… 1996 Ford Bronco - Two driveshafts and a brake rotor with a hub assembly are laid out on a concrete surface next to a car jack supporting a vehicle's differen… 1996 Ford Bronco - installed Powermaster XS 9503 starter. this should fix the heat soak issues i have 1996 Ford Bronco - I replaced my old Superlift radius arms for a set of Procomp radius arms. The tire use to rub very bad on the bottom edge of the Superlift… 1996 Ford Bronco - new 270amp alternator from Left Eye Blind 1996 Ford Bronco - i added a pair of grab handles above the driver and passenger doors. gives passenger something to hold onto to to enter/exit as well as som… 1996 Ford Bronco - rebuilt two F6TE-JA harmonic balancers for 96 351w with 4-point tone ring. done by Damper Dudes for around $120 each plus shipping. one for… 1996 Ford Bronco - my wiring was a mess between all the battery cables. so i added a 4-post power distribution block. between my starter, alternator, winch, a… 1996 Ford Bronco - Replacing my torque converter to a lower stall. Replacing the trans pan with a B&M deep aluminum pan. Replacing the trans cooler lines and… 1996 Ford Bronco - Replaced my Circle D 11" (2500-2800 stall) converter with a Circle D 12" (2200-2600 stall) converter. 1996 Ford Bronco - the floor in back of my truck was REALLY bad and smashing my fuel tank even. I decided to cut the floor mostly out. I welded some steel str…
