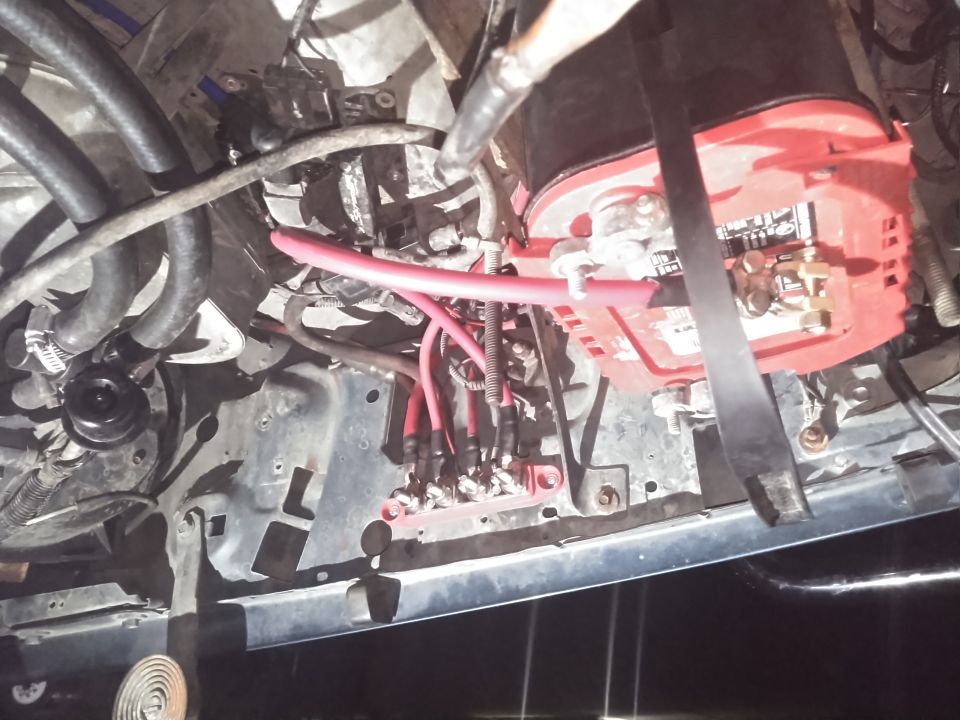

my wiring was a mess between all the battery cables. so i added a 4-post power distribution block. between my starter, alternator, winch, amplifier, vehicle power, positive battery cable, as well as my smaller wires for my starter relay and headlight relay. this helps keep everything organized.

the battery cable to the block i ran in 0-gauge. i made a new cable for the starter also. I also ran a new 4-gauge cable to the power distribution box to replace the old 8-gauge cable.
