Vinyl flooring

From 1996 Ford Bronco “B3”, documented by Kingfish999.

12 photos
← Back to this vehicle

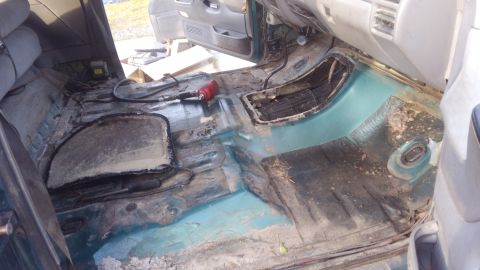

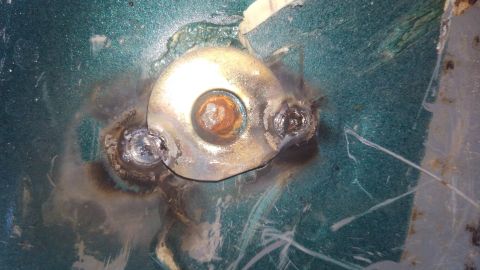

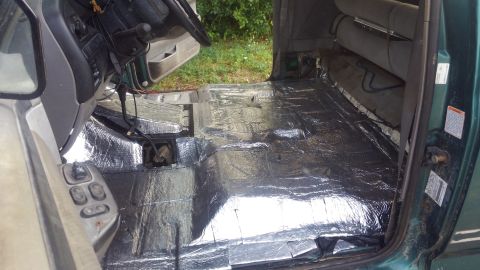

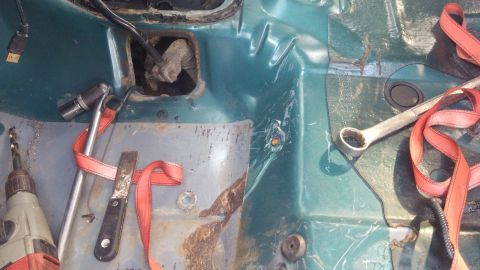

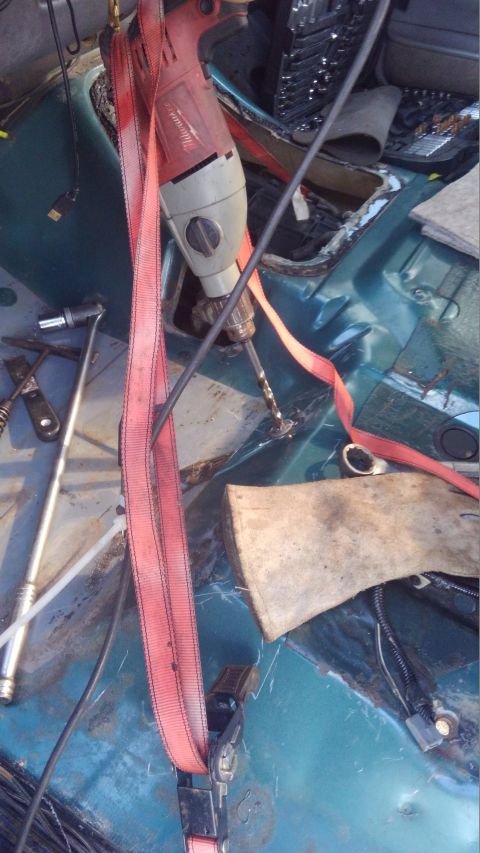

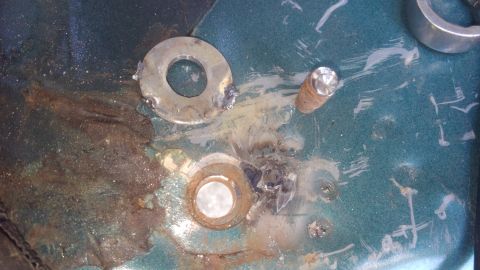

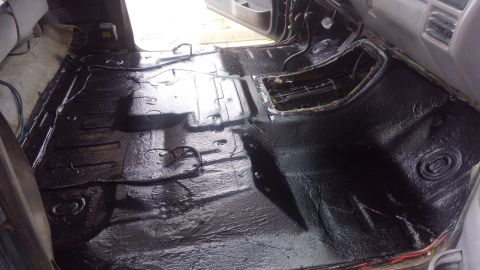

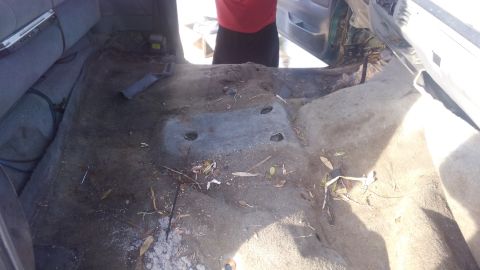

1996 Ford Bronco - I ordered vinyl flooring to replace the old nasty carpet. it has been underwater a few times from offroading and after my last trip offroad… 1996 Ford Bronco - got the carpet removed. happy to see the floor has no sign of rust despite so many broken bolts for the seats and seatbelts. i did find a b… 1996 Ford Bronco - so i broke off 6 of the bolts for the seats flush with the floor. i thought about drilling new holes next to them but decided to drill the… 1996 Ford Bronco - to make sure the drill bit would not walk when drilling, i tack welded a grade 8 washer. i will be using 1/2" bolts and this 7/16" washer w… 1996 Ford Bronco - a trick i do to keep constant pressure on the drill without alot of effort is use a ratchet strap around the back of the drill. it will kee… 1996 Ford Bronco - once drilled through the threaded section of the floor, the rest of the old bolt should fall through. then you can break the tack welds of… 1996 Ford Bronco - i cleaned the floor with soap and water to help degrease the floor and remove any sand. i then used majority of a gallon of Duplicolor bedl… 1996 Ford Bronco - i bought a 36 sq/ft set of Noico 80mil sound deadener. it was enough to do the passenger area of the floor. this is brand is a good middle… 1996 Ford Bronco - this is the vinyl flooring kit. instructions say to keep it over 72* for a few hours so it will be looser and easier to install. thats not… 1996 Ford Bronco - got the flooring in and trimmed. the firewall edge needed a good amount trimmed and some along the driver side. the passenger side was fine… 1996 Ford Bronco - driver side came out very well. the sand was from mud inside the t-case shifter boot. the vinyle goes up to the firewall as far as i can ea… 1996 Ford Bronco - while i was at it i also replaced the seatbelt sleeves. the old ones were really worn and i had these for years so i finally got to replace…
