1.mp4
91 hits | 15.86 MB | Posted: 1/1/20
engine started to make a horrible noise when driving it. other than a slight miss it seemed ok.

2.mp4
86 hits | 3.99 MB | Posted: 1/1/20

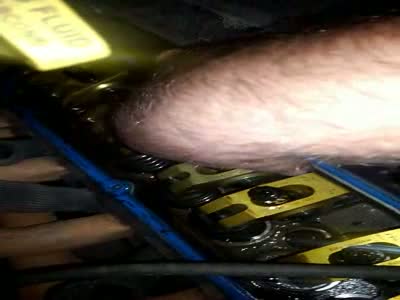

i drove the truck abit further so i can work on it in a better area and suddenly the engine shut off...

3.mp4
80 hits | 3.79 MB | Posted: 1/1/20

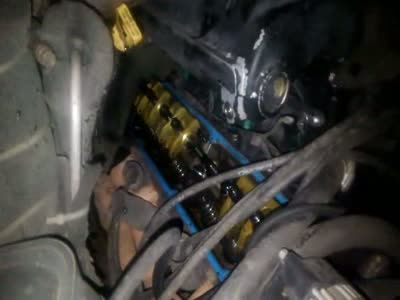

trying to do a field repair so i can at least limp to a pavement where i can have the truck towed, i...

bore.mp4
77 hits | 13.04 MB | Posted: 1/1/20
using a inspection camera through a spark plug hole, you can see the valve still stuck open and the ...

79 hits | 25.03 KB | Posted: 1/1/20

KVID0194.mp4
74 hits | 92.25 MB | Posted: 1/6/20

47 hits | 35.94 KB | Posted: 1/6/20
pulled the upper intake. my Trickflow intake has internal EGR passage but some reason the passage wa...

43 hits | 49.38 KB | Posted: 1/6/20
egr passage blocked by the gasket but some reason was full of oil on one side. not the other

48 hits | 37.3 KB | Posted: 1/6/20
egr passage on the cylinder heads blocked by the gasket. this side had no oil tho

40 hits | 30.19 KB | Posted: 1/6/20

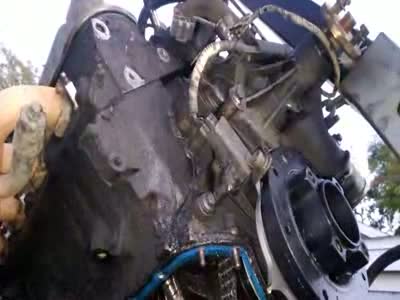

pulled the engine. not good finding a spot on each side of the oil pan with a hole in it

47 hits | 40.58 KB | Posted: 1/6/20
pulled the engine. not good finding a spot on each side of the oil pan with a hole in it

41 hits | 41.13 KB | Posted: 1/6/20
pulled the pan. catastrophic failure

broken timing chain, but that is least of concern

48 hits | 50.4 KB | Posted: 1/6/20

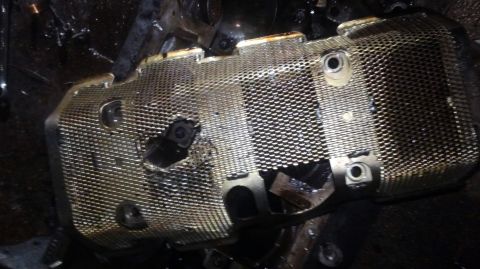

when the rod threw, it ripped through the windage tray

44 hits | 21.22 KB | Posted: 1/6/20
one rod (cylinder 2) gave out. the rod for cylinder 5 mangled

54 hits | 36.34 KB | Posted: 1/6/20

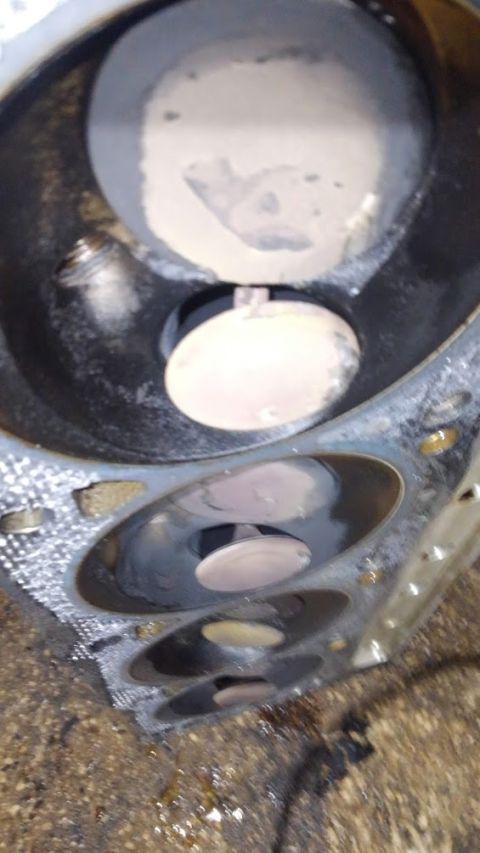

7 of 8 exhaust valves hit the pistons and bent leaving them stuck open. not sure why larger intake v...

46 hits | 49.76 KB | Posted: 1/6/20

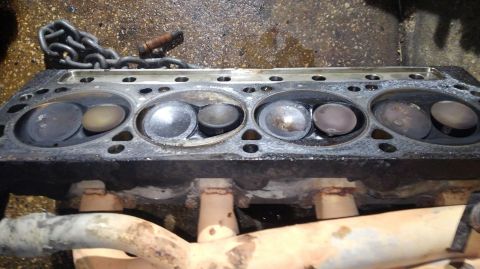

other cylinder head. exhaust valves largely stuck open

40 hits | 47.29 KB | Posted: 1/6/20

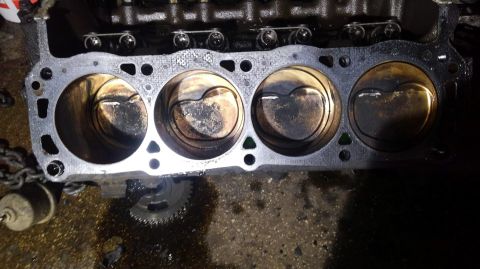

can see where the valves contacted the pistons

57 hits | 52.44 KB | Posted: 1/6/20

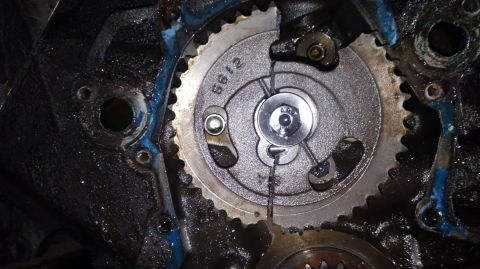

when the first failure occurred, i managed to get the truck running on 7 cylinders for a brief time....

44 hits | 53.99 KB | Posted: 1/6/20

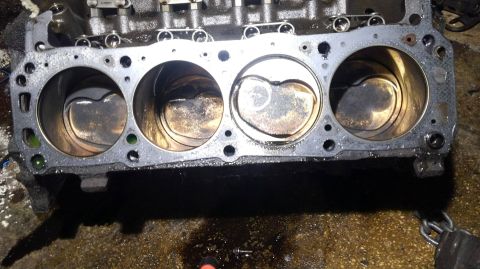

notice how one piston has a full circle mark from the exhaust valve and the dish piston is rotated s...

53 hits | 42.81 KB | Posted: 1/6/20

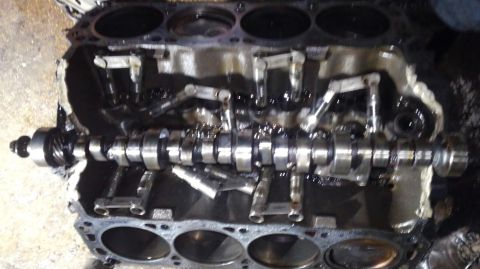

despite the damage at the timing chain and such, the cam was almost flawless other than a mark on on...

55 hits | 33.12 KB | Posted: 1/6/20

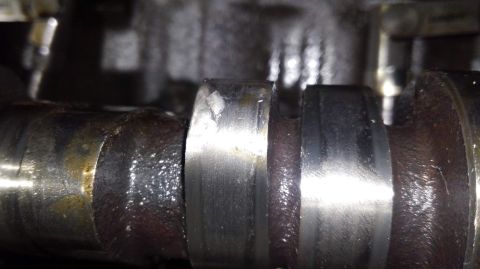

only damage to the cam was one mark of a lobe

48 hits | 46.38 KB | Posted: 1/6/20

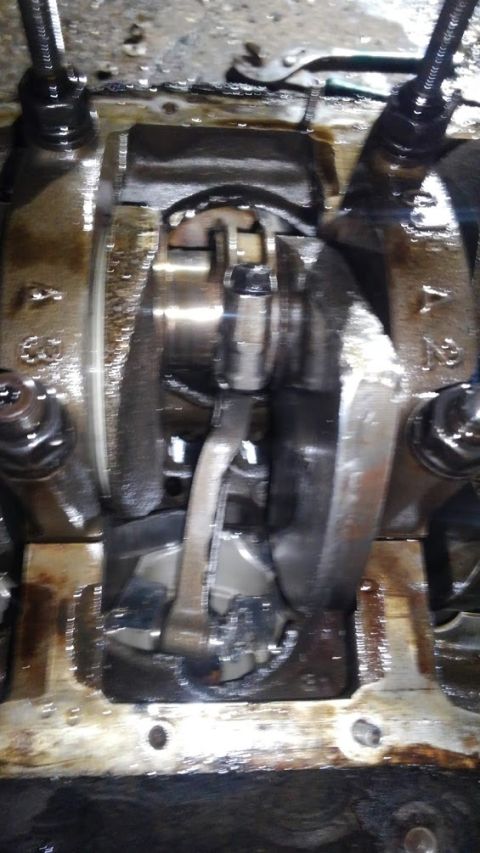

number 6 rod severely damaged. number 2 rod ejected

49 hits | 36.11 KB | Posted: 1/6/20

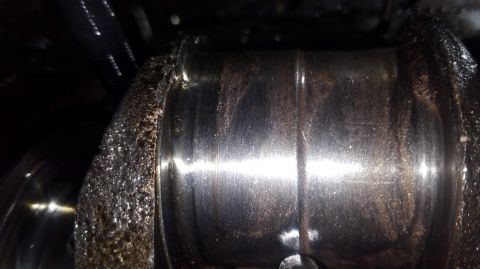

number 2 and 6 crank journal. number 2 did not have any scorching but clearly was heavily worn compa...

39 hits | 37.32 KB | Posted: 1/6/20

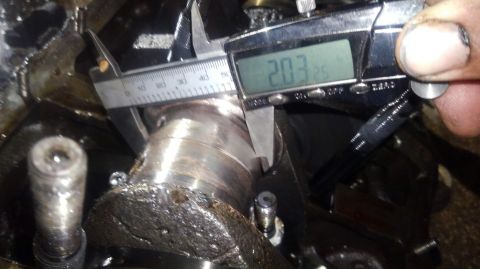

the worn journal measured about 2.033" wide. should be 2.100" (make aftermarket cranks use...

56 hits | 34.38 KB | Posted: 1/6/20

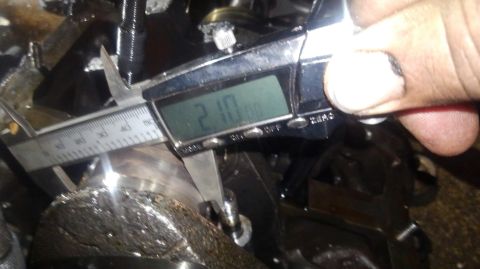

the non-worn rod journal is 2.100" like it should be for this crank

59 hits | 61.94 KB | Posted: 1/6/20

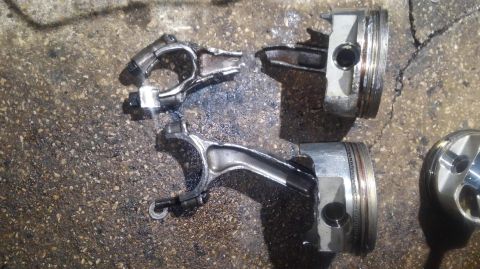

number 2 and 6 pistons. 2 with a snapped rod, 6 with the bent rod. the bottom the the cap on 2 broke...

59 hits | 44.09 KB | Posted: 1/6/20

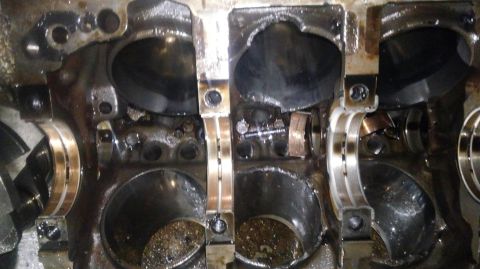

the block has sections of the bottom cylinder wall broken, the block is trashed. the engine still ha...

pulled.mp4
94 hits | 92.25 MB | Posted: 1/7/20
