1996 Ford Bronco

documented by TN_Bronco2001 9 photos documented since 2014 ♡ Follow this build

The story

Bought her Dec of 02. Guy before me changed things on her quite a few times. Originally with E4OD, then went to a 5-speed, went 2wd with 4R70W, back to 4wd and a 5-speed but with a front end from a 89 I think which is how I bought her. I've finally went back to a E4OD and changed it back to 2wd temporarily. Hoping to do a 6bt swap on her in the next couple of years when I can afford it. · TN_Bronco2001

Photos

Wiring harness connectors with red and gray plastic housings

Close-up of a vehicle's wiring harness connector and a black ribbed pedal

1996 Ford Bronco: Close-up of a gray electrical connector with multiple colored wires plugged into it, next to a yellow connect…

Two-tone blue and silver Ford Bronco parked on a dirt road with trees in the background

Two-tone gray and blue 1996 Ford Bronco parked on grassy area

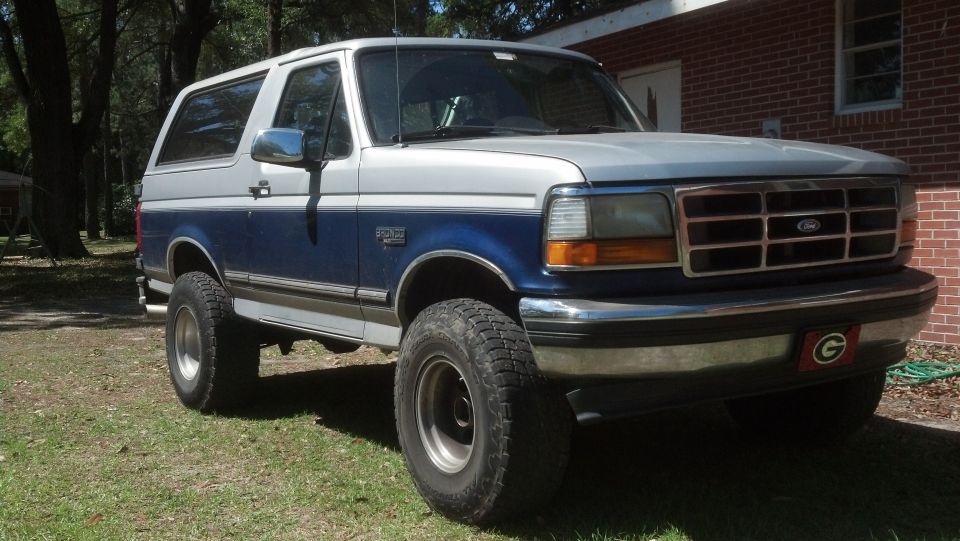

1996 Ford Bronco 3q front view, two-tone blue and silver

1996 Ford Bronco parked on grass, side view. Two-tone blue and silver paint, spare tire mounted on rear door

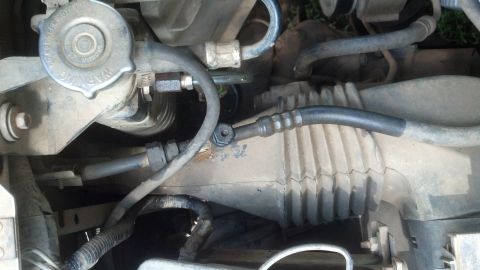

Power steering rack and pinion with hoses and warning cap
