Door & Ignition Lock Cylinder Replacements
IF THE IMAGE IS TOO SMALL, click it.

For any '80-96/7 F-series or Bronco, the best way to return the truck to new (un-worn) matched door & ignition keys (even '80-89s that used round-head door keys) is to buy an aftermarket (Standard DL140 or DL140T) pair of 8-cut door lock cylinders with new keys, and build a new Ford 1L3Z11582A or MotorCraft SW6383 8-cut lock cylinder kit to match those new keys according to this instruction sheet:



A pre-built set of aftermarket cylinders with genuine keys is available, but lower quality.

See also:
. . . .

Share This
Url
Tag
Thumb

FordIS.jpg | Hits: 92 | Size: 44.85 KB | Posted on: 3/16/24 | Link to this image


Instruction Sheet for Ford (StratTech) 8-cut ignition lock cylinder assembly
IF THE IMAGE IS TOO SMALL, click it.

Share This
Url
Tag
Thumb

DoorCylSwap.jpg | Hits: 81 | Size: 44.59 KB | Posted on: 3/16/24 | Link to this image


Door Lock Cylinder Replacement
IF THE IMAGE IS TOO SMALL, click it.

In addition to removing all wear & damage, replacing the door lock cylinders with new has the added benefit (on pre-'96 trucks) of updating the keys to the later 8-cut style, which has more aftermarket support (like StratTec's Bolt line of accessories). I also allows matching the new keys to a new 8-cut ignition lock cylinder.


Share This
Url
Tag
Thumb

BuzzKey.JPG | Hits: 3039 | Size: 139.11 KB | Posted on: 1/4/15 | Link to this image

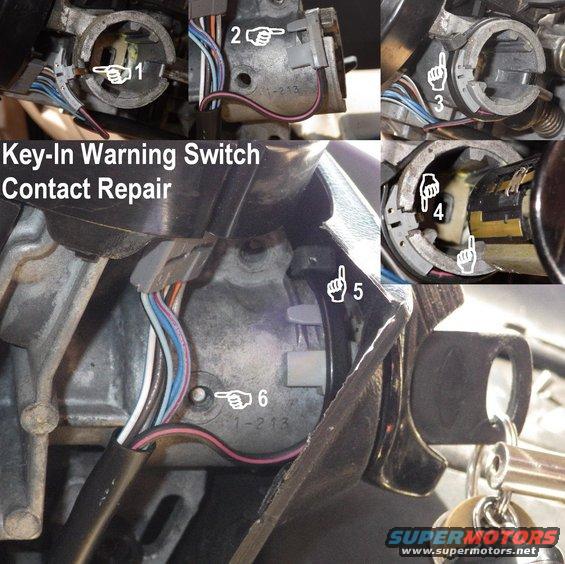

Key-In Contact Repair



If the key buzzer/chime is always on (even when the key is out & the cylinder bezel is properly aligned) or if the horn blows intermittently ('94-95 only), then the contact has probably come loose from the steering column, and is grounding against it (1). With the cylinder assembly & column shroud removed, the contact belongs fully in the channel under the cylinder with its upper tab hooked over the column's debossment (2). The tab commonly breaks, but even if it's intact, it's a weak retention method which can be improved easily by the addition of a zip-tie (3). Ensure the contact touches the switch on the cylinder when the cylinder is inserted (4). Finally, ensure the zip-tie does not interfere with the column shroud (5).

The lock cylinder catch pin (6) is accessible through a small hole (noticeably smaller than the screw holes) in the bottom of the column shroud, and can be depressed only when the key is in RUN. Then the cylinder can be extracted with the key.



See also:
.

GO TO THE NEXT several pics & captions for lock cylinder repair...

Share This
Url
Tag
Thumb

Collar01.JPG | Hits: 1357 | Size: 114.15 KB | Posted on: 9/3/14 | Link to this image


This original '93 collar (using the 10-cut key) is very loose, causing several annoying problems. With the key in RUN, push a probe up through the small hole in the lower shroud (behind the word "continuous"), depress the catch pin, and withdraw the cylinder assembly from the column.



I had a spare cylinder to put in so I could turn the ignition off while I was working.

New AFTERMARKET 8-cut lock cylinder set ~$70~100 (3): with black keys (2), black ignition cylinder, stainless door cylinders (2); door cylinders alone (w/keys) are Standard DL140.

Ford (1L3Z-11582-A) improved 8-cut lock cylinder kit MotorCraft SW-6383 ~$60 (not the A/C clutch pressure switch with the same number)
.

StratTec is the OEM for the Ford kit, and its number is 707624 for about half the price. The blank key is 597638 for ~$2.50~6 each.

See also:


CONTINUE READING THE NEXT SEVERAL PAGES...

Share This
Url
Tag
Thumb

Collar02.JPG | Hits: 959 | Size: 114.98 KB | Posted on: 9/3/14 | Link to this image


If the key-in switch is damaged, it can be discarded. This one is OK, so I removed it carefully.



New lock cylinder set ~$70~100 (3): with black keys (2), black ignition cylinder, stainless door cylinders (2)

Ford (1L3Z-11582-A) improved lock cylinder kit MotorCraft SW-6383 ~$60 (not the A/C clutch pressure switch with the same number)
.

StratTec is the OEM for the Ford kit, and its number is 707624 for about half the price. The blank key is 597638 for ~$2.50~6 each.

Share This
Url
Tag
Thumb

Collar03.JPG | Hits: 849 | Size: 103.36 KB | Posted on: 9/3/14 | Link to this image


The cylinder must be rotated back to OFF before rotating forward past START to disassemble it from its housing.

New lock cylinder set ~$70~100 (3): with black keys (2), black ignition cylinder, stainless door cylinders (2)

Ford (1L3Z-11582-A) improved lock cylinder kit MotorCraft SW-6383 ~$60 (not the A/C clutch pressure switch with the same number)
.

StratTec is the OEM for the Ford kit, and its number is 707624 for about half the price. The blank key is 597638 for ~$2.50~6 each.

Share This
Url
Tag
Thumb

Collar04.JPG | Hits: 832 | Size: 109.05 KB | Posted on: 9/3/14 | Link to this image

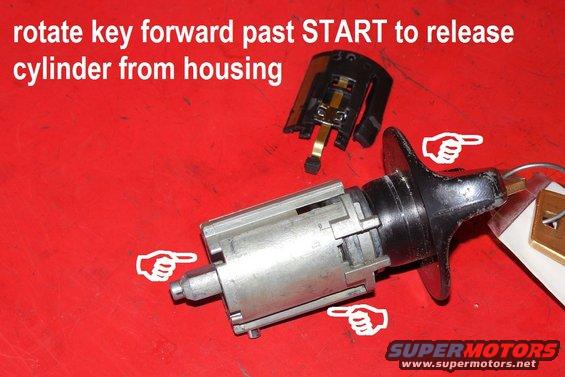

As the cylinder passes START, the cam on the end will disengage from the mating cam in the housing, and the detent springs will push the cylinder out slightly.

New lock cylinder set ~$70~100 (3): with black keys (2), black ignition cylinder, stainless door cylinders (2)

Ford (1L3Z-11582-A) improved lock cylinder kit MotorCraft SW-6383 ~$60 (not the A/C clutch pressure switch with the same number)
.

StratTec is the OEM for the Ford kit, and its number is 707624 for about half the price. The blank key is 597638 for ~$2.50~6 each.

Share This
Url
Tag
Thumb

Collar05.JPG | Hits: 801 | Size: 107.69 KB | Posted on: 9/3/14 | Link to this image


Note the orientation of the detent ring as it falls off. Don't lose the brass detent springs & pins from inside the housing (NOT VISIBLE in this pic).

Share This
Url
Tag
Thumb

Collar06.JPG | Hits: 853 | Size: 110.14 KB | Posted on: 9/3/14 | Link to this image


Inspect all the working parts of the cylinder. If it's damaged or worn, don't waste your time trying this repair. Buy a new one and have a locksmith cut your door locks onto the new ignition key.

If the cylinder is merely gummed with minimal wear like this one, proceed...

See also:
. .

Share This
Url
Tag
Thumb

Collar07.JPG | Hits: 737 | Size: 107.37 KB | Posted on: 9/3/14 | Link to this image


Use brake cleaner liberally (in a ventilated area where the overspray & drips won't damage anything) to clean all the old grease & worn metal out of the cylinder's moving parts. Run the key in & out several times to work the cleaner in & break up dried grease or other contamination. Keep spraying until it runs out clean, then allow the cylinder to dry thoroughly AND return to room-temperature (or warmer).

Share This
Url
Tag
Thumb

Collar08.JPG | Hits: 790 | Size: 102.37 KB | Posted on: 9/3/14 | Link to this image


Insert the key, align the collar perfectly, mark the collar to the cylinder, and remove the key while holding the parts in alignment.

Apparently, this truck was previously driven by a blind epileptic drunk.

New lock cylinder set ~$70~100 (3): with black keys (2), black ignition cylinder, stainless door cylinders (2)

Ford (1L3Z-11582-A) improved lock cylinder kit MotorCraft SW-6383 ~$60 (not the A/C clutch pressure switch with the same number)
.

StratTec is the OEM for the Ford kit, and its number is 707624 for about half the price. The blank key is 597638 for ~$2.50~6 each.

Share This
Url
Tag
Thumb

Collar09.JPG | Hits: 761 | Size: 105.15 KB | Posted on: 9/3/14 | Link to this image


Apply glue to a small area and allow it to dry while holding alignment. Recheck, and if necessary, break the glue and reset for perfect alignment.

Share This
Url
Tag
Thumb

Collar10.JPG | Hits: 761 | Size: 93.88 KB | Posted on: 9/3/14 | Link to this image


Once they're glued together in one spot, fill the gap between the collar & cylinder, allowing the glue to wick in between the parts. DO NOT ALLOW THE GLUE TO RUN into the moving parts of the cylinder. Have superglue remover nearby with a loose cap in case you get glue on your skin, or in the wrong parts of the cylinder.

Share This
Url
Tag
Thumb

Collar11.JPG | Hits: 722 | Size: 106.55 KB | Posted on: 9/3/14 | Link to this image


Once the glue is thoroughly dry, and you're satisfied with the alignment, apply light oil to the cylinder's moving parts and work the key a few times, ensuring that the lock bar rises & falls properly.

Share This
Url
Tag
Thumb

Collar13.JPG | Hits: 842 | Size: 105.48 KB | Posted on: 9/3/14 | Link to this image


Insert the cylinder back into the housing, aligning the cams at the inner end, then rotate the cylinder back to RUN so it can be reinstalled in the column. Push the catch pin up, insert the assembly, then turn the key to OFF to force the catch pin down. Check all functions.

If it still doesn't work right, you wasted a few minutes & a few cents worth of superglue & brake cleaner. Buy a new one & have a locksmith cut the doors onto the new ignition key, or buy a kit cylinder & build it to fit your original key.

New lock cylinder set ~$70~100 (3): with black keys (2), black ignition cylinder, stainless door cylinders (2)

Ford (1L3Z-11582-A) improved lock cylinder kit MotorCraft SW-6383 ~$60 (not the A/C clutch pressure switch with the same number)
.

StratTec is the OEM for the Ford kit, and its number is 707624 for about half the price. The blank key is 597638 for ~$2.50~6 each.

See also:
.
