Solo Stage 4 kit

From 1987 Ford Bronco, documented by dwenzel5.

31 photos 7 videos
← Back to this vehicle

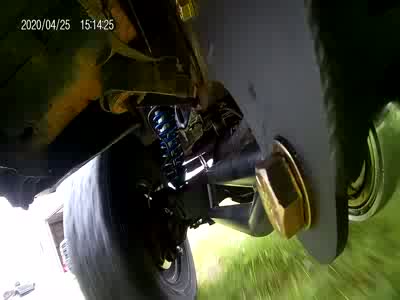

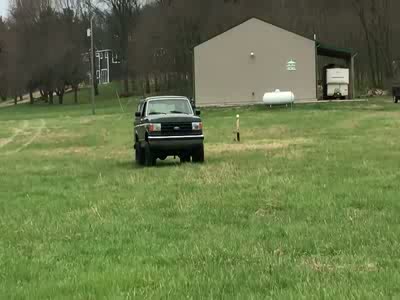

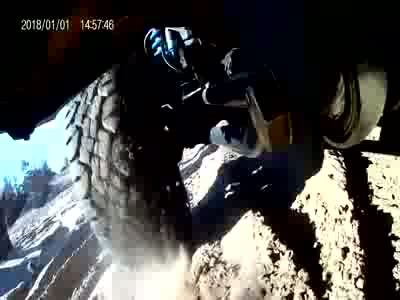

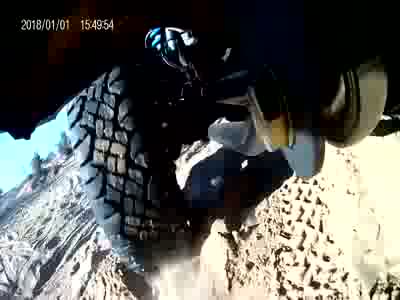

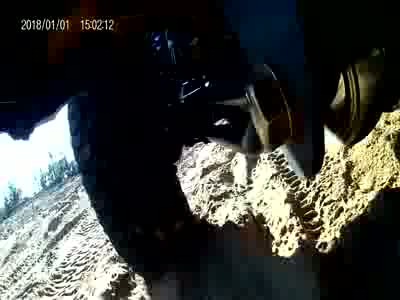

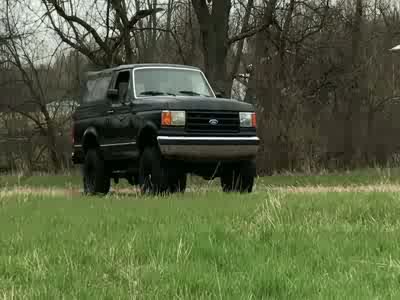

1987 Ford BroncoVideo 1987 Ford BroncoVideo 1987 Ford Bronco - turn down volume before viewingVideo 1987 Ford Bronco - turn down volume before viewingVideo 1987 Ford Bronco - Ripped out all stock front suspension and prepped for welding front shock hoop. 1987 Ford Bronco - Passenger side shock hoop welded in. 1987 Ford Bronco - Accidentally used the upper engine cage bolts to line up the passenger shock hoop. They are too small and it didn't line up perfectly. Corr… 1987 Ford Bronco - Had to clearance the driver side shock hoop to clear the extra fat brake booster. 1987 Ford Bronco - Engine cage cross bar had to be lined up before final welding of shock hoops. 1987 Ford Bronco - Front shock mocked up 1987 Ford Bronco - Radius arm, traction beam and knuckle mocked up. Ended up pointing the reservoirs towards the front of the truck. 1987 Ford Bronco - Driver side final assembly 1987 Ford Bronco - Had to trim the wheel liners 1987 Ford Bronco - Cut and turned TTB beams extend out the lower ball joint and allow the beams to pivot in the stock frame brackets and still get 4 inches of… 1987 Ford Bronco - Mounted the front shock reservoirs 1987 Ford Bronco - Final mounting of the front shock reservoirs. 1987 Ford Bronco - Dropped shackle mounts with 2.5 wide Deaver springs 1987 Ford Bronco - Disassembled the rear leafs. Used steel tubing to take up the space of the lower 9 leafs to measure full compression needed to weld in lowe… 1987 Ford Bronco - Stuck a 2x4 under the stock bump stops to put it at full compression and still clear the tires. Progressive Daystar bump stops will make up… 1987 Ford Bronco - Cut the old lower shock mounts off and installed these. 1987 Ford Bronco - Had to remove the heat shield over the muffler to mount the upper shock bar. 1987 Ford Bronco - Rear shock mounted as far outward as possible 1987 Ford Bronco - Rear shock reservoirs mounted to the upper shock mount. Can't see the crappy foam tape unless you crawl under the truck. Wallered out some… 1987 Ford Bronco - Had a welding shop take an old argon regulator and made it adjustable. Hook a tire fill tool/gauge to it and made my own nitrogen fill kit.… 1987 Ford Bronco - Measuring full droop on the front for limiting straps. 1987 Ford Bronco - Gotta take all the weight off the front to adjust the King coil overs ride height. 1987 Ford Bronco - Used the Quicktrick alignment system. Only had to adjust and recheck the alignment a few dozen times. Ride height and camber seemed to chan… 1987 Ford Bronco - A black Ford Bronco is parked in a grassy, wooded area with the front quarter of the vehicle visible. The SUV has large tires and a chrome… 1987 Ford Bronco - A black Ford Bronco is parked in a grassy, wooded area. The front of the SUV is visible, showing its grille, headlights, and large off-road… 1987 Ford Bronco - A black 1987 Ford Bronco is parked on a grassy area surrounded by trees. The front of the vehicle is angled towards the camera, showing its… 1987 Ford Bronco - A black 1987 Ford Bronco with a soft top is parked on a grassy area surrounded by trees. The vehicle features aftermarket off-road tires an… 1987 Ford Bronco - A black 1987 Ford Bronco is parked on a grassy, wooded area. The vehicle is shown from a three-quarter front angle, highlighting its off-ro… 1987 Ford Bronco - A close-up view of the front tire and suspension of a vehicle, featuring a blue King Shock coilover and a black tow strap with "KAR TE" vis… 1987 Ford Bronco - A close-up view of the suspension system of a vehicle, featuring a bright blue coilover shock absorber with "KING SHOCKS" branding and a se… 1987 Ford Bronco - A close-up view of the suspension system of a 1987 Ford Bronco, featuring bright blue King Shocks with silver coils and a black strap with… 1987 Ford BroncoVideo 1987 Ford BroncoVideo 1987 Ford BroncoVideo
