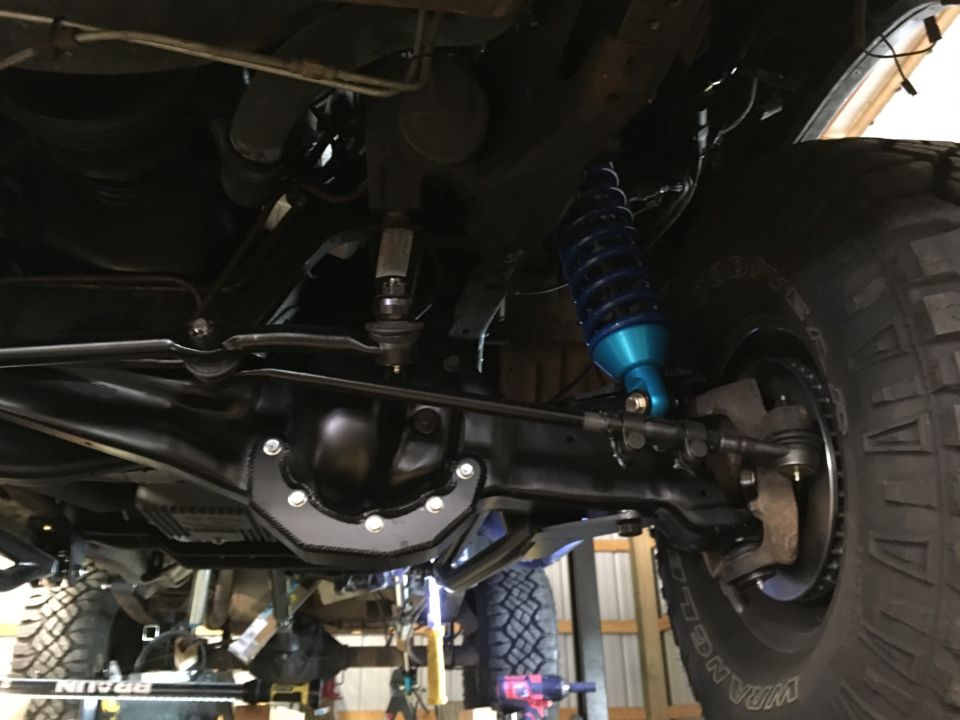

Front axle underside with black diff cover, blue coilover, and off-road tire
Home/ Registry/ Ford/ Bronco/ 1987–1991/ 1987 Bronco supermotors.net/registry/28992

1987 Ford Bronco

documented by dwenzel5 31 photos documented since ♡ Follow this build

Photos

1987 Ford Bronco — Cut and turned TTB beams extend out the lower ball joint and allow the beams to pivot in the stock frame brac… 1987 Ford Bronco — Driver side final assembly 1987 Ford Bronco — Measuring full droop on the front for limiting straps. 1987 Ford Bronco — Gotta take all the weight off the front to adjust the King coil overs ride height. 1987 Ford Bronco — Rear shock mounted as far outward as possible 1987 Ford Bronco — Rear shock reservoirs mounted to the upper shock mount. Can't see the crappy foam tape unless you crawl under… 1987 Ford Bronco — Had to trim the wheel liners 1987 Ford Bronco — Dropped shackle mounts with 2.5 wide Deaver springs 1987 Ford Bronco — Had to remove the heat shield over the muffler to mount the upper shock bar. 1987 Ford Bronco — Had a welding shop take an old argon regulator and made it adjustable. Hook a tire fill tool/gauge to it and… 1987 Ford Bronco — Cut the old lower shock mounts off and installed these. 1987 Ford Bronco — Mounted the front shock reservoirs 1987 Ford Bronco — Final mounting of the front shock reservoirs. 1987 Ford Bronco — Ripped out all stock front suspension and prepped for welding front shock hoop. 1987 Ford Bronco — Had to clearance the driver side shock hoop to clear the extra fat brake booster. 1987 Ford Bronco — Passenger side shock hoop welded in. 1987 Ford Bronco — Accidentally used the upper engine cage bolts to line up the passenger shock hoop. They are too small and it… 1987 Ford Bronco — Front shock mocked up 1987 Ford Bronco — Radius arm, traction beam and knuckle mocked up. Ended up pointing the reservoirs towards the front of the tr… 1987 Ford Bronco — Engine cage cross bar had to be lined up before final welding of shock hoops. 1987 Ford Bronco — Used the Quicktrick alignment system. Only had to adjust and recheck the alignment a few dozen times. Ride he… 1987 Ford Bronco — Disassembled the rear leafs. Used steel tubing to take up the space of the lower 9 leafs to measure full comp… 1987 Ford Bronco — Stuck a 2x4 under the stock bump stops to put it at full compression and still clear the tires. Progressive D… Black 1987 Ford Bronco parked in a grassy, wooded area. Black Ford Bronco parked in a grassy, wooded area, front view. Black 1987 Ford Bronco with off-road tires parked in a wooded area. Black 1987 Ford Bronco with soft top and off-road tires parked outdoors. Black 1987 Ford Bronco with off-road tires parked in a grassy, wooded area. 1987 Ford Bronco — Close-up of off-road tire, blue King Shock, and black tow strap on a vehicle. 1987 Ford Bronco — Close-up of vehicle suspension with blue King Shocks coilover and Kar Tek tow strap. 1987 Ford Bronco suspension with blue King Shocks and KAR TEK strap.
See every Ford Bronco in the registry The 1987–1991 Ford Bronco registry
