Dave Blaney > 1990 Ford Bronco > open folder Eaton E-locker

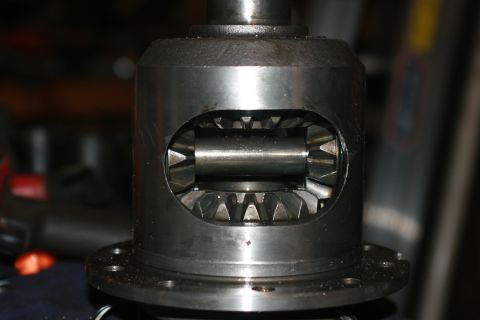

From the side the Eaton E-locker looks like an open carrier.
438 hits | 39.2 KB | Posted: 11/12/07
From the side the Eaton E-locker looks like an open carrier.

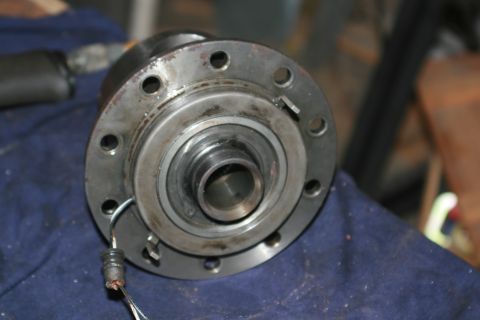

From the bottom of the carrier you can see the magnet assembly. Be very careful with the carrier be...
439 hits | 45.87 KB | Posted: 11/12/07
From the bottom of the carrier you can see the magnet assembly. Be very careful with the carrier be...

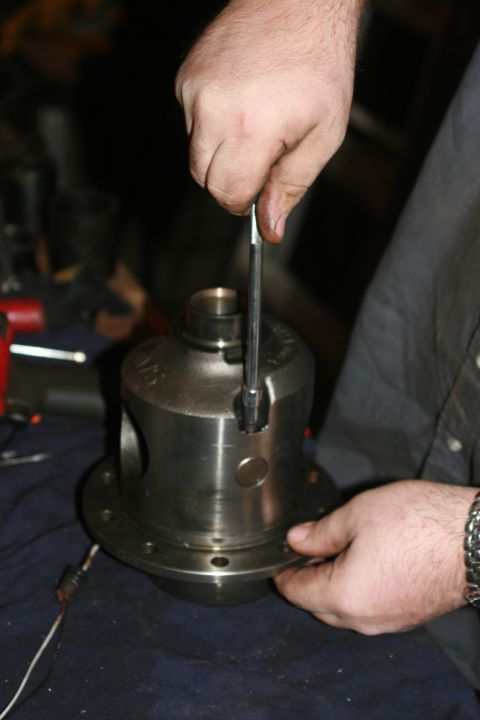

Disassembly: Remove cross pin retainer bolt.
425 hits | 40.57 KB | Posted: 11/12/07
Disassembly: Remove cross pin retainer bolt.

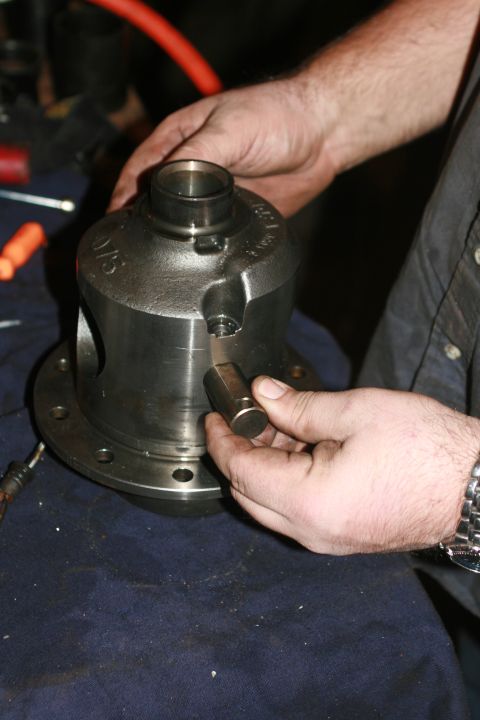

Slide out the cross pin.
395 hits | 50.95 KB | Posted: 11/12/07
Slide out the cross pin.

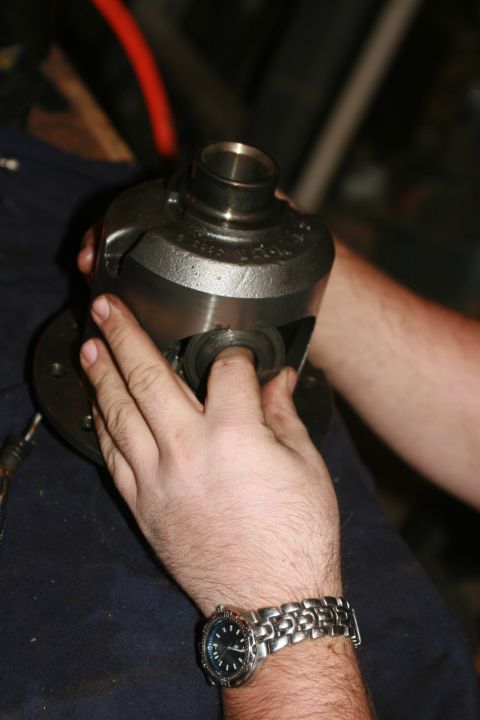

Once the cross pin is removed you can rotate the spider gears around to remove them and their washer...
512 hits | 44.27 KB | Posted: 11/13/07
Once the cross pin is removed you can rotate the spider gears around to remove them and their washer...

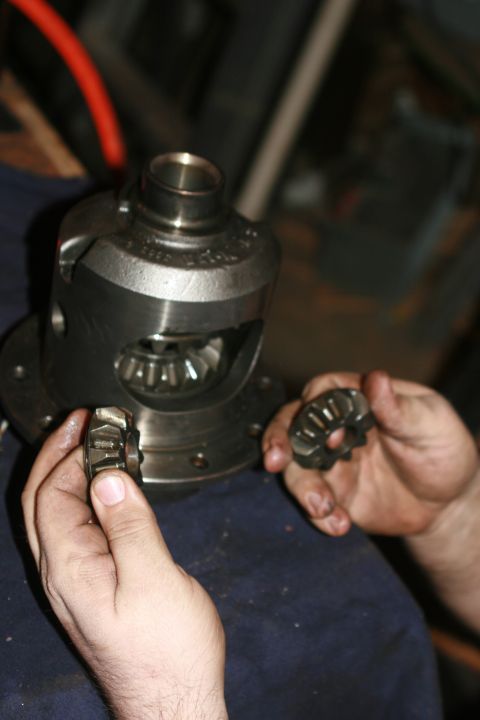

Here are the spiders removed from the case. Note that with the spiders removed one of the side gear...
415 hits | 42.97 KB | Posted: 11/13/07
Here are the spiders removed from the case. Note that with the spiders removed one of the side gear...

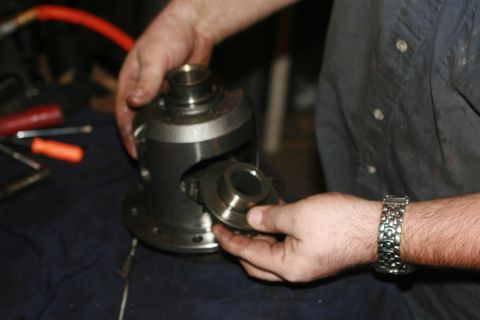

Go ahead and remove that side gear.
464 hits | 41.78 KB | Posted: 11/13/07
Go ahead and remove that side gear.

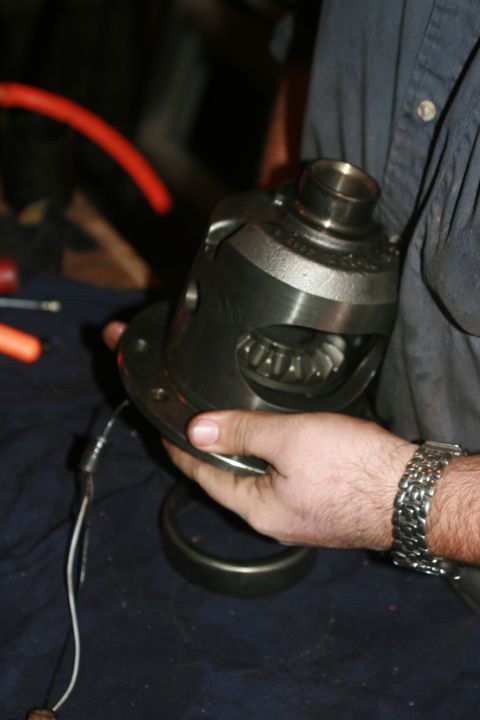

To remove the other side gear push it up from the bottom of the carrier.
415 hits | 43.26 KB | Posted: 11/13/07
To remove the other side gear push it up from the bottom of the carrier.

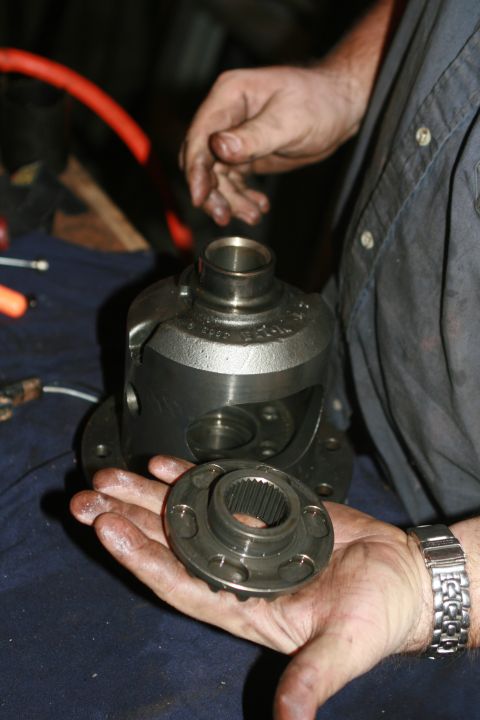

Looking at the back side of this side gear you can see the slots that the engagement pins lock into ...
408 hits | 53.52 KB | Posted: 11/13/07
Looking at the back side of this side gear you can see the slots that the engagement pins lock into ...

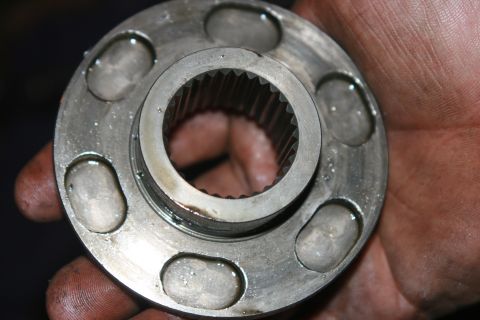

If you look closely at the slots you can see that some of the edges are slightly rounded off, which ...
456 hits | 57.26 KB | Posted: 11/13/07
If you look closely at the slots you can see that some of the edges are slightly rounded off, which ...

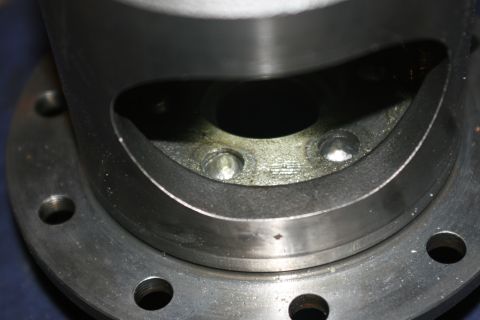

Here is the crux of the failure, see the rounded off tips of the engagement pins? They are supposed...
500 hits | 44.28 KB | Posted: 11/13/07
Here is the crux of the failure, see the rounded off tips of the engagement pins? They are supposed...

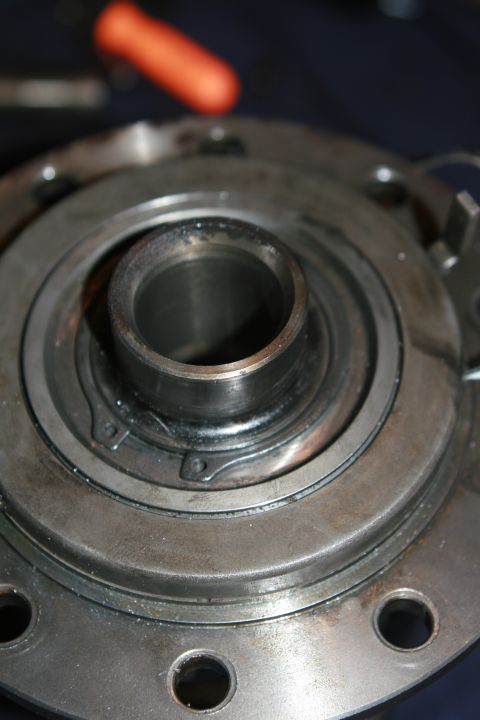

To remove the damaged pins we need to get to them through the bottom of the locker.
431 hits | 49.78 KB | Posted: 11/13/07
To remove the damaged pins we need to get to them through the bottom of the locker.

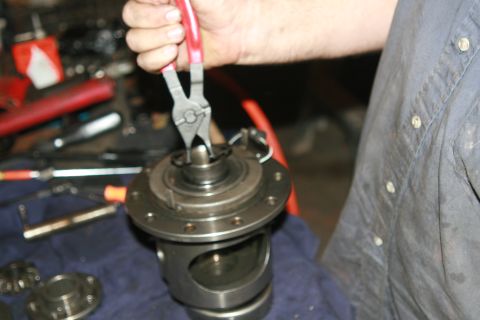

Remove the snap ring.
563 hits | 51.81 KB | Posted: 11/13/07
Remove the snap ring.

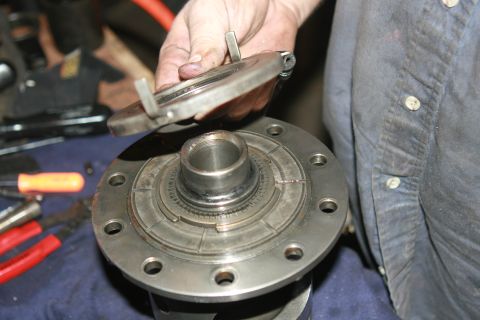

Once the snap ring is removed the magnet assembly will lift right off.
433 hits | 60.42 KB | Posted: 11/13/07
Once the snap ring is removed the magnet assembly will lift right off.

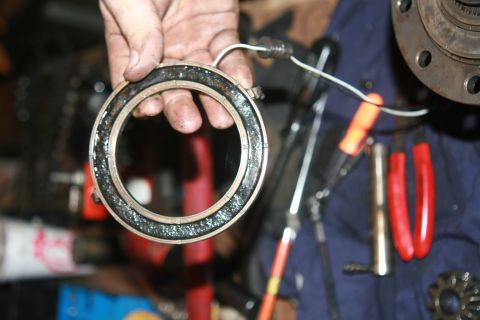

Here's the back side of the magnet. It looks a little funky in the picture, but there is nothing wr...
365 hits | 58.39 KB | Posted: 11/13/07
Here's the back side of the magnet. It looks a little funky in the picture, but there is nothing wr...

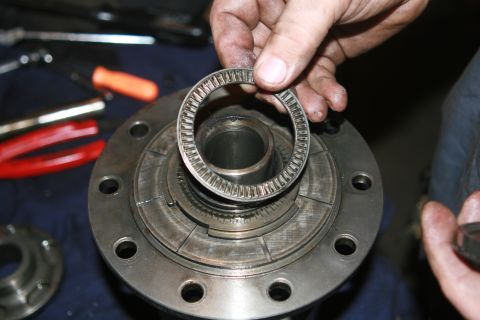

Here is a roller bearing assembly and the edge of the ring that the magnet rides around, sorry I did...
497 hits | 57.42 KB | Posted: 11/13/07
Here is a roller bearing assembly and the edge of the ring that the magnet rides around, sorry I did...

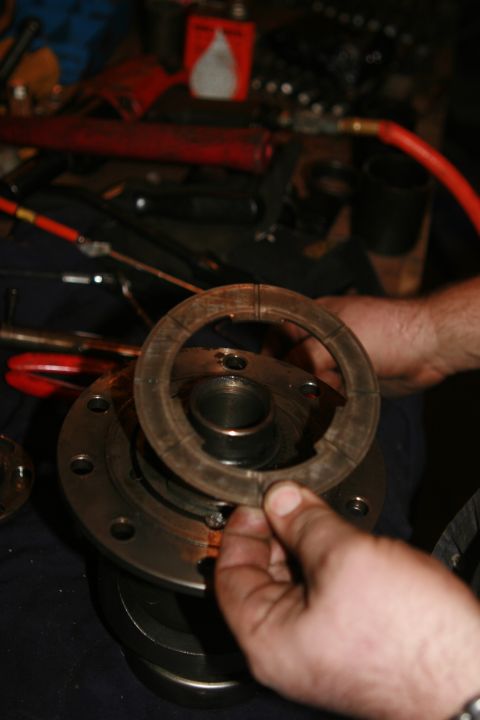

Next part to come out is the face that the roller bearing assembly rides on.
435 hits | 42.67 KB | Posted: 11/13/07
Next part to come out is the face that the roller bearing assembly rides on.

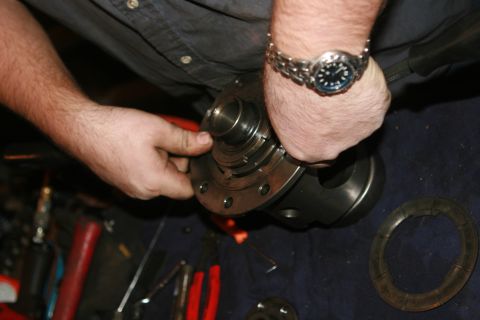

Next to come out is the upper half of the bearing ramp. It's a tight fit, but with a flat head scre...
428 hits | 47.68 KB | Posted: 11/13/07
Next to come out is the upper half of the bearing ramp. It's a tight fit, but with a flat head scre...

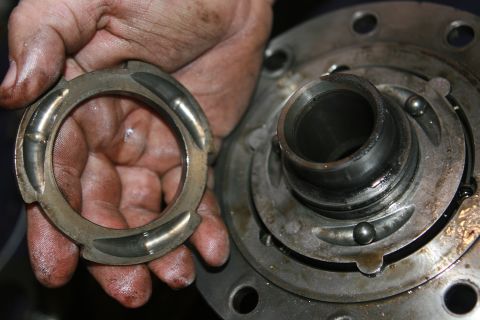

Heres the ball ramp assembly. Take out the balls and inspect them to make sure they're still nice a...
763 hits | 63.58 KB | Posted: 11/13/07
Heres the ball ramp assembly. Take out the balls and inspect them to make sure they're still nice a...

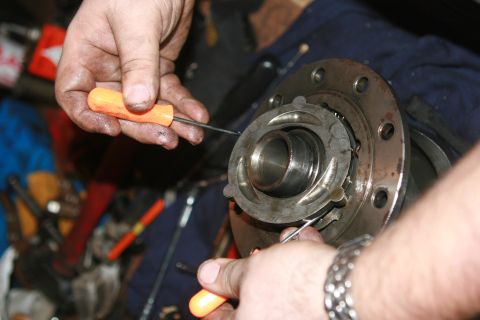

Take a couple of pics and remove the lower part of the ball ramp assembly.
427 hits | 53.74 KB | Posted: 11/13/07
Take a couple of pics and remove the lower part of the ball ramp assembly.

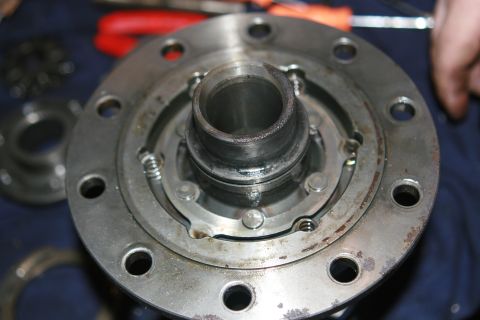

That exposes the springs and the back side of the engagement pins, sitting in their pin retainer rin...
407 hits | 53.5 KB | Posted: 11/13/07
That exposes the springs and the back side of the engagement pins, sitting in their pin retainer rin...

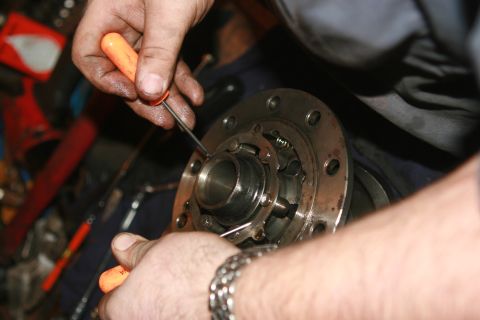

The pin retainer ring is easily removed from the carrier with a couple of pics.
436 hits | 49 KB | Posted: 11/13/07
The pin retainer ring is easily removed from the carrier with a couple of pics.

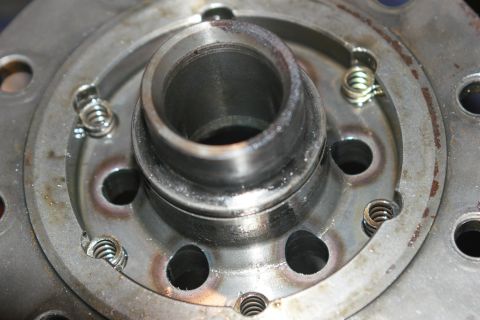

Here are the springs sitting in the carrier. At this point inspect the bores that the pins were remo...
378 hits | 61.2 KB | Posted: 11/13/07
Here are the springs sitting in the carrier. At this point inspect the bores that the pins were remo...

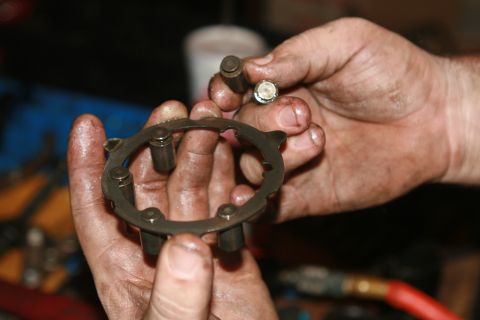

Heres a shot of how the pins just slide right out of the retainer ring, it's very simple.
473 hits | 46.62 KB | Posted: 11/13/07
Heres a shot of how the pins just slide right out of the retainer ring, it's very simple.

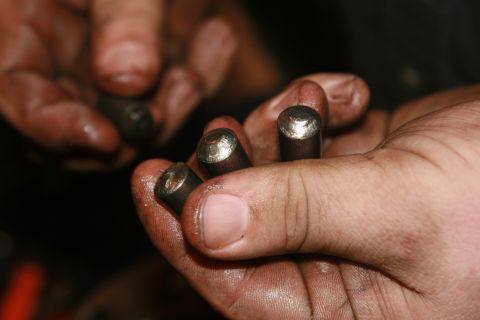

Here's a closer shot of the damaged engagement pins. All six of them are similarly rounded off.
493 hits | 42.75 KB | Posted: 11/13/07
Here's a closer shot of the damaged engagement pins. All six of them are similarly rounded off.

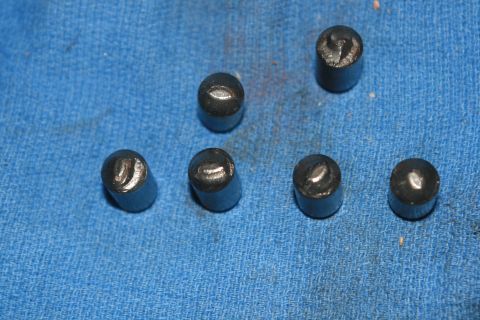

Another shot of the rounded off engagement pins.
465 hits | 79.42 KB | Posted: 11/13/07
Another shot of the rounded off engagement pins.

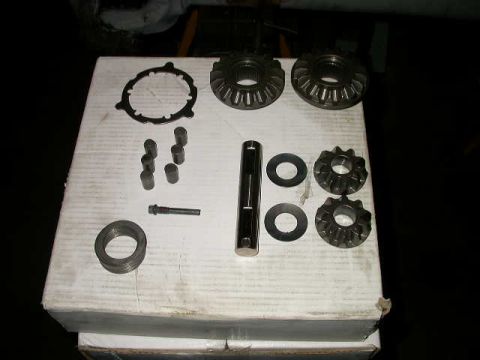

E-locker rebuild kit. Contains engagement pins, pin retainer, side gears, spiders, cross pin, cross...
531 hits | 57.96 KB | Posted: 12/9/07
E-locker rebuild kit. Contains engagement pins, pin retainer, side gears, spiders, cross pin, cross...

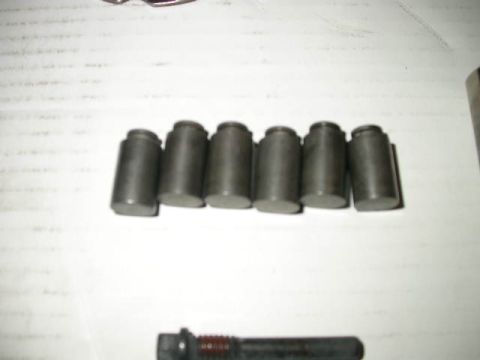

New engagement pins, see how much better they look?
399 hits | 50.87 KB | Posted: 12/9/07
New engagement pins, see how much better they look?

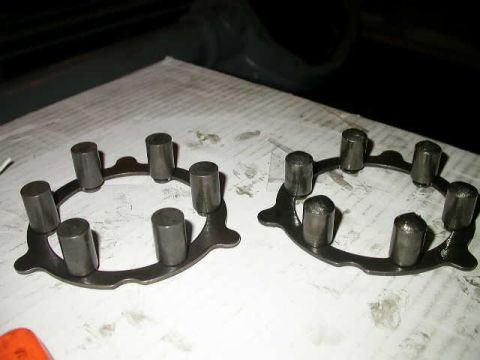

old pins vs. new pins.
426 hits | 58.13 KB | Posted: 12/9/07
old pins vs. new pins.
