Headlight Rewire

From 1988 Ford Bronco “The OJ Special” — documented by Adrianspeeder.

19 photos
← Back to this vehicle

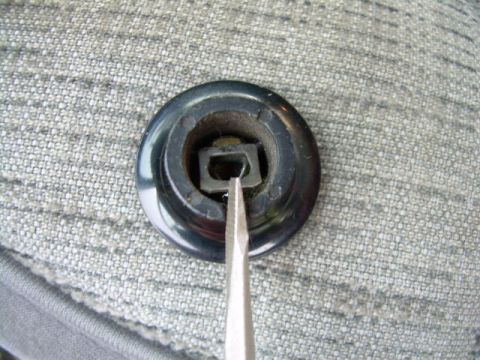

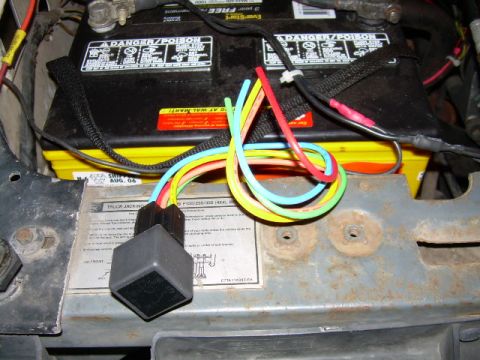

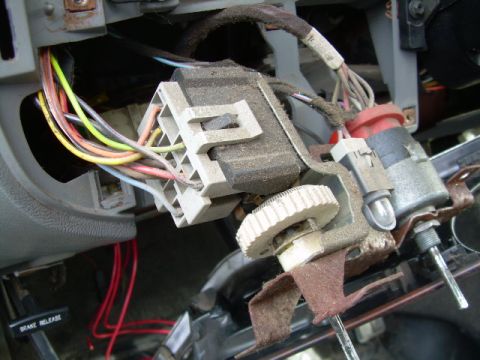

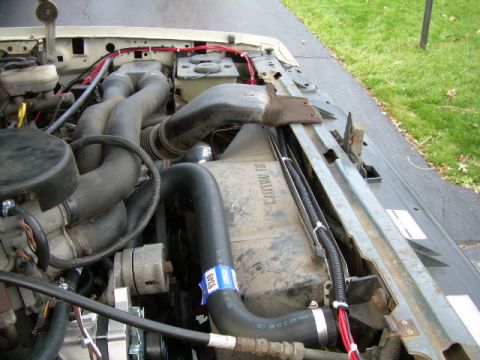

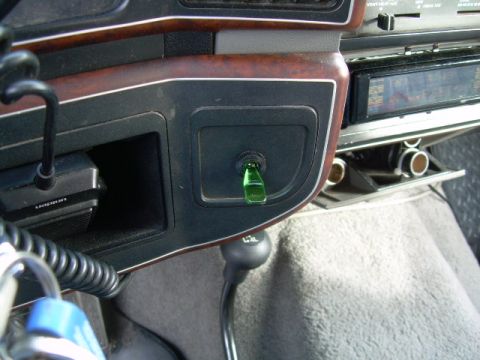

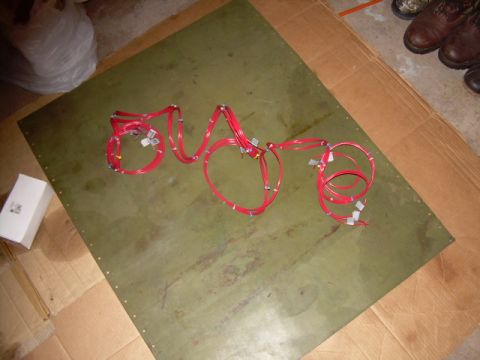

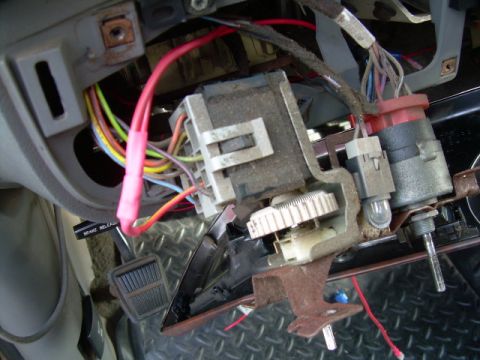

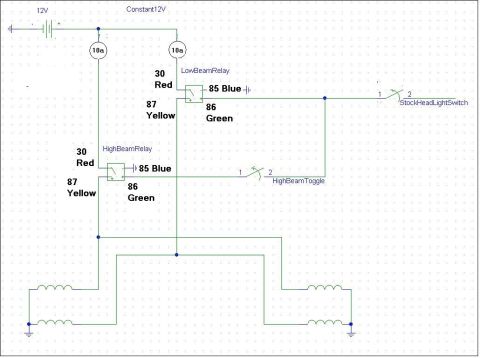

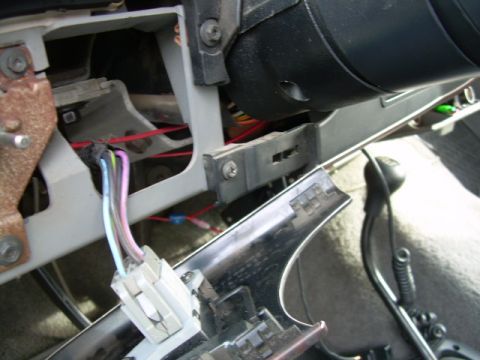

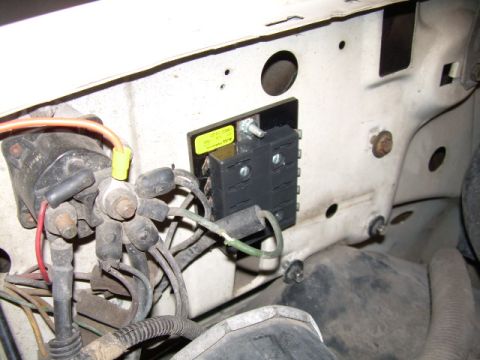

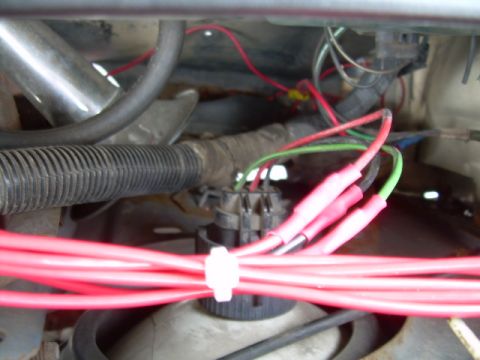

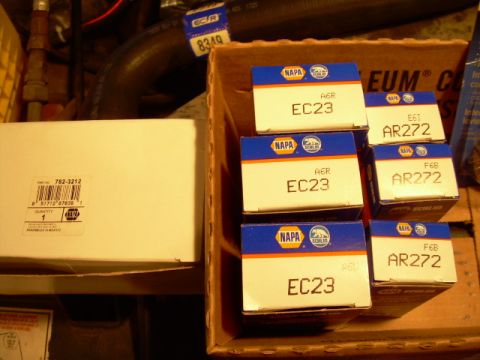

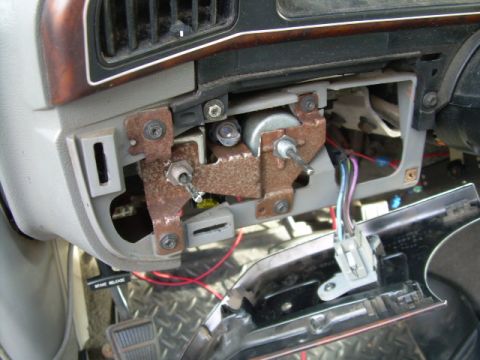

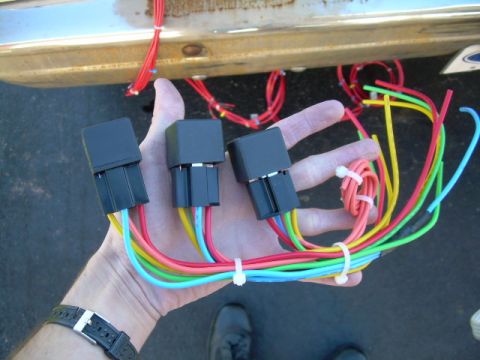

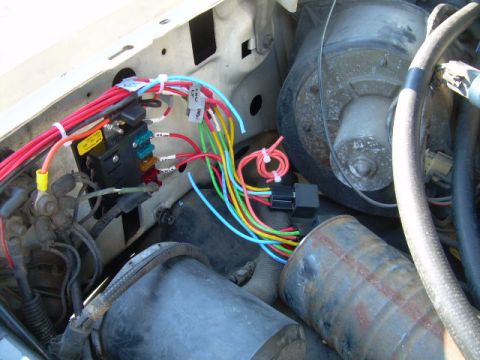

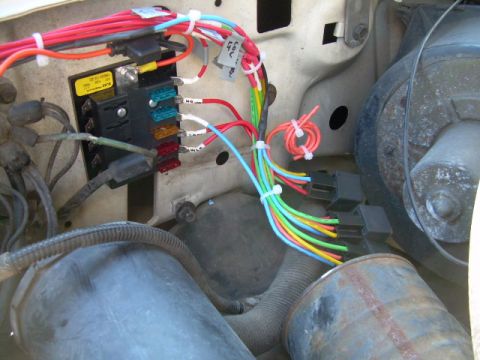

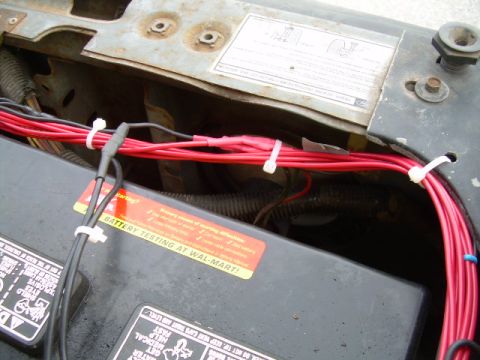

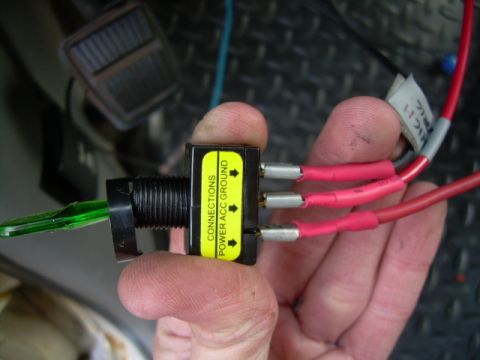

1988 Ford Bronco - Wiring diagram for headlight relays showing low-beam and high-beam relays with color-coded terminal numbers. 1988 Ford Bronco - Napa part numbers for the fuse panel, relay pigtails, and 30amp relays. 1988 Ford Bronco - A black automotive relay with its harness pigtail of bright red, yellow, green and blue wires sits on a rusty engine-bay panel bearing a Fo… 1988 Ford Bronco - The start of the harness for the high and low triggers, and the headlight power. 1988 Ford Bronco - New fuse block to run the headlights, relays, and air horns. Be careful not to interfere with the hood hinge comin' down. 1988 Ford Bronco - An open hand holds three black four-pin automotive relays with plug-in sockets wired into color-coded red, blue, green, yellow and pink lea… 1988 Ford Bronco - Close-up of an engine bay showing a fuse box and a complex wiring harness with many colorful wires. 1988 Ford Bronco - An aftermarket auxiliary fuse block with colored blade fuses and labeled circuits mounted to a white inner fender, feeding a bundle of blue… 1988 Ford Bronco - Wiring is being routed through the engine bay, near the battery. 1988 Ford Bronco - Close-up view of the engine bay of a light-colored truck, showing various components and wiring. 1988 Ford Bronco - Close-up of an engine wiring harness showing red and green wires connected to a junction block. 1988 Ford Bronco - Interior trim piece with a square hole, possibly for a knob or switch, being worked on with a screwdriver. 1988 Ford Bronco - Under-dash view with the lower steering column trim panel removed and set aside, exposing the column tube, mounting bracket and a white mul… 1988 Ford Bronco - The dashboard wiring harness of a 1988 Ford Bronco is visible, with a rusty bracket and disconnected electrical components. 1988 Ford Bronco - Vehicle wiring harness and connectors are visible, along with parts of the ignition switch assembly. 1988 Ford Bronco - The complex wiring and components of a vehicle's steering column are visible in this close-up shot. 1988 Ford Bronco - A hand holds a three-terminal green illuminated toggle switch with a yellow label reading "CONNECTIONS POWER ACC GROUND", its spade termina… 1988 Ford Bronco - Close-up of a vehicle's interior, showing a green toggle switch and gear shift lever. 1988 Ford Bronco - A 1987 Ford Bronco is seen from the front in a snowy environment with its headlights illuminated.
