5.0 engine controls schematics

From 1994 Ford Bronco, documented by Kenny Bradshaw.

8 photos
← Back to this vehicle

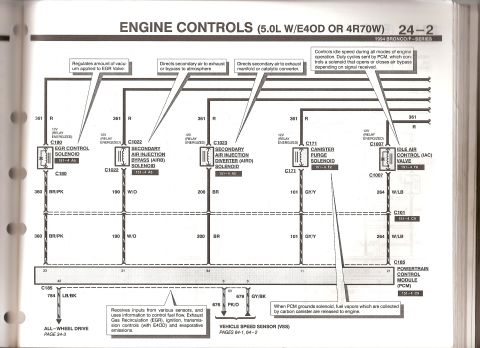

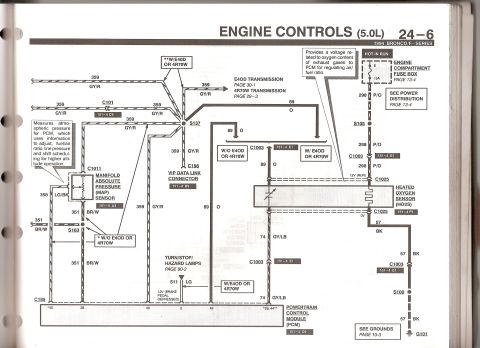

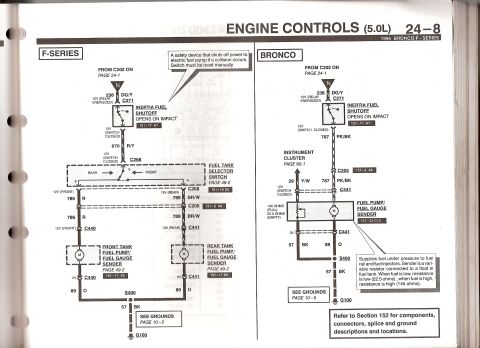

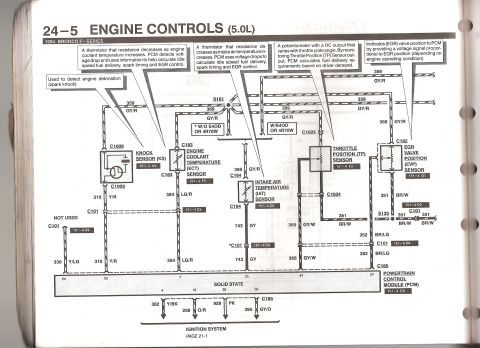

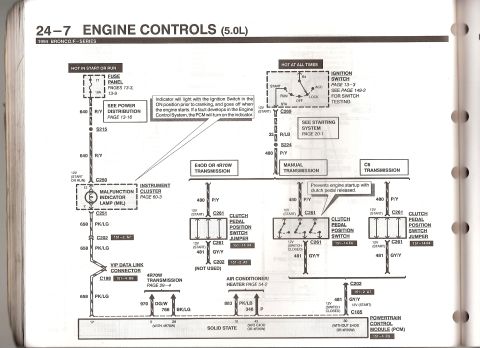

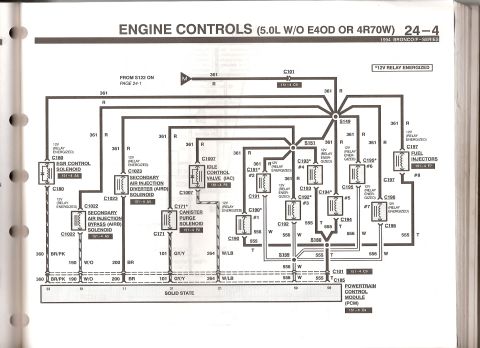

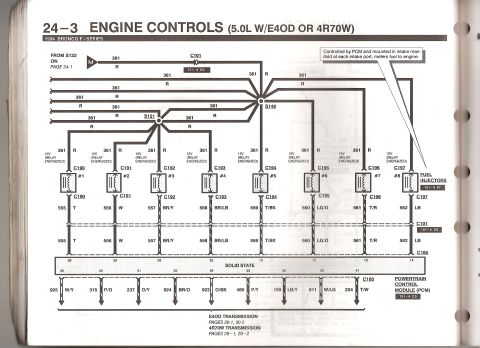

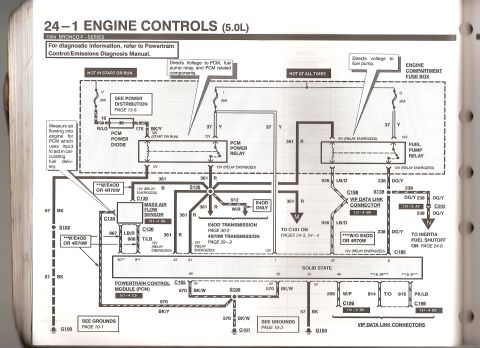

1994 Ford Bronco - Ford 1994 Bronco/F-Series 5.0L engine-controls schematic (24-1): PCM power relay, fuel pump relay, mass air flow sensor, VIP data link and… 1994 Ford Bronco - Ford 1994 Bronco/F-Series 5.0L (E4OD/4R70W) engine-controls schematic (24-2): EGR control, secondary air bypass/diverter (AIRB/AIRD), canis… 1994 Ford Bronco - Ford 1994 Bronco/F-Series 5.0L (E4OD/4R70W) engine-controls schematic (24-3): wiring of all eight sequential fuel injectors (#1-#8) through… 1994 Ford Bronco - Ford 1994 Bronco/F-Series 5.0L (without E4OD/4R70W) engine-controls schematic (24-4): fuel injectors, EGR control, AIRB/AIRD, canister purg… 1994 Ford Bronco - Engine controls 5.0L wiring diagram showing color-coded circuits for knock, ECT, TP, and EGR sensors to the PCM. 1994 Ford Bronco - Ford 1994 Bronco/F-Series 5.0L engine controls wiring diagram showing PCM, MAP sensor, oxygen sensor and color-coded circuits. 1994 Ford Bronco - Ford 1994 Bronco/F-Series 5.0L engine controls wiring diagram covering ignition switch, clutch pedal switches and PCM with color codes. 1994 Ford Bronco - Ford 1994 Bronco/F-Series 5.0L engine-controls schematic (24-8): inertia fuel shutoff switch, fuel tank selector, front/rear fuel pumps and…
