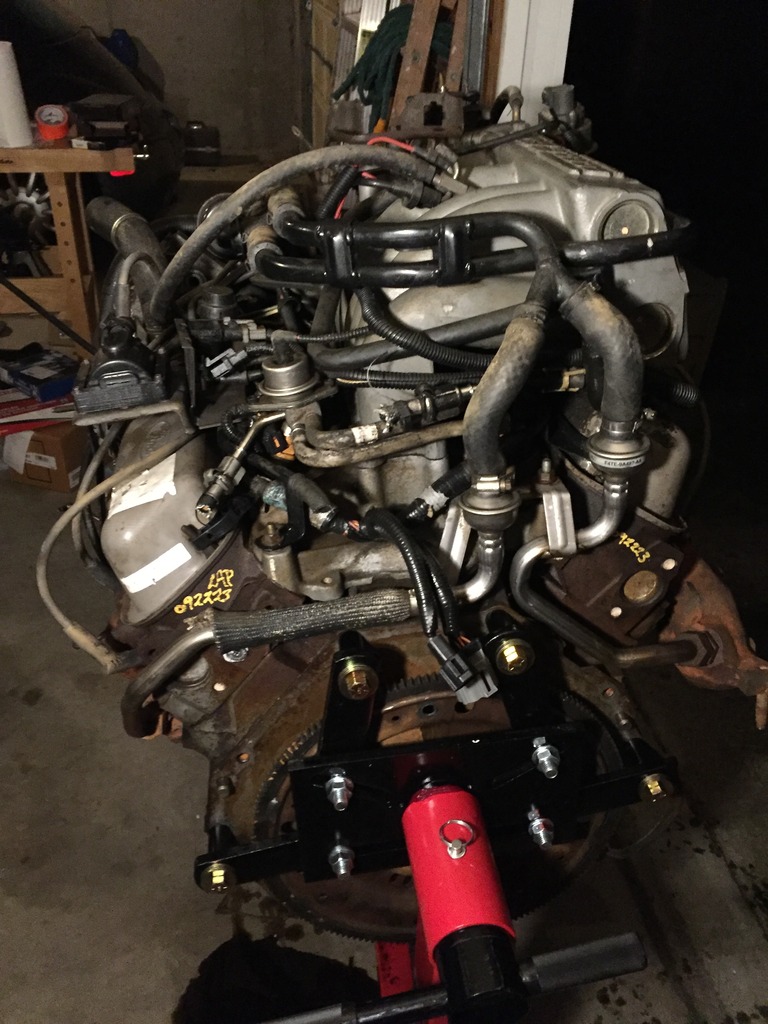

the rear of the engine. i posted this picture mainly to show the smog hoses (TAB, TAD, Thermactor hoses, whatever you want to call them). my bronco has different hoses/pipes, and they are not hooked up properly (i have no TAB or TAD valves, the pipe in the exhaust is just directly connected to the pipes in the manifolds). but on my bronco, the pipes from the exhaust manifolds connect up behind the motor and one pipe runs to where the TAB or TAD should be on the back of the motor. not sure if this is right or what. maybe its because this engine was in an E350 van? maybe its because its a newer year engine. maybe its supposed to be like this on my bronco?

Owner caption August 2016 · Photo 11 of 56
