How do you remove the transfer case knob?

Pull the knob straight up. On S4WD models, the transfer case must be in the 4-LO range.

What must be done before removing the front floor console?

Remove the steering column and the shift levers (transfer case knob and, if equipped, the manual transmission shift lever); then remove the front floor console if necessary.

What comes after removing the front floor console in this procedure?

Step 22: remove the left and the right lower IP (instrument panel) pivot bolts.

Does this page apply to manual transmission trucks?

Yes — step 20b says to remove the manual transmission shift lever if equipped.

Home/ Registry/ Chevrolet/ C/K Pickup/ 1988-1998/ 1998 Chevrolet C/K Pickup/ Photo supermotors.net/registry/media/1112480

1998 Chevy C/K Pickup Instrument Panel Removal Steps 19-22 - Service Procedure

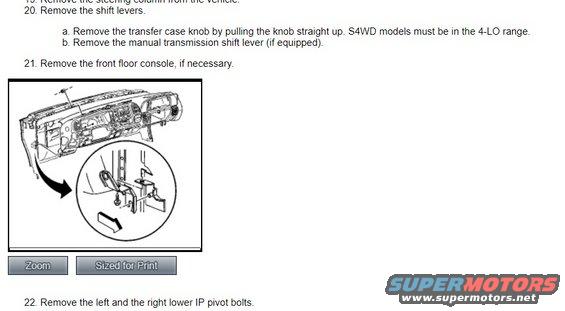

Service manual steps 19-22 with line drawing of dash and shift levers

‹ ›

Service procedure page with steps 19-22 removing shift levers and floor console, including a dash line illustration.

AI caption July 2017 · Photo 104 of 118

This document is one page of a multi-page service procedure, apparently from an electronic service manual (evidenced by 'Zoom' and 'Sized for Print' buttons), covering removal steps for the instrument panel (IP) area of a truck. Visible steps run from step 19 through step 22. Step 19 (partially cut off) instructs removing the steering column from the vehicle. Step 20 covers removing the shift levers, with sub-steps: (a) remove the transfer case knob by pulling it straight up, noting that S4WD models must be in the 4-LO range, and (b) remove the manual transmission shift lever if equipped. Step 21 instructs removing the front floor console if necessary, accompanied by a line-art illustration of the instrument panel with an inset circular detail showing the lower bracket/pivot bolt area. Step 22 instructs removing the left and right lower IP pivot bolts. No torque values, part numbers, or year/model applicability statements are visible on this page. The page was uploaded to a 1998 Chevrolet C/K Pickup gallery, and nothing on the page contradicts that attribution. A reader can learn the sequence for detaching shift controls and the console before unbolting the lower instrument panel pivots.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How do you remove the transfer case knob?: Pull the knob straight up. On S4WD models, the transfer case must be in the 4-LO range.
What must be done before removing the front floor console?: Remove the steering column and the shift levers (transfer case knob and, if equipped, the manual transmission shift lever); then remove the front floor console if necessary.
What comes after removing the front floor console in this procedure?: Step 22: remove the left and the right lower IP (instrument panel) pivot bolts.
Does this page apply to manual transmission trucks?: Yes — step 20b says to remove the manual transmission shift lever if equipped.
