How do you remove the IP storage compartment?

Squeeze the compartment in order to release it (step 48), then remove the IP storage compartment lamp by sliding the compartment to release it (step 49).

How is the data link connector (DLC) removed?

Remove the one screw (step 51.1), then slide the DLC out (step 51.2).

Which step applies only to Diesel engines?

Step 50: Remove the low coolant module (Diesel only).

What components are removed along with the fuse panel?

Step 52 says to remove the fuse panel and the courtesy lamp switch; nearby steps also remove the ground screw, the harness from the IP, and the courtesy lamp switches.

Is the jumper harness removal required on all vehicles?

No — step 55 says to remove the jumper harness to the remote playback device only if equipped.

Home/ Registry/ Chevrolet/ C/K Pickup/ 1988-1998/ 1998 Chevrolet C/K Pickup/ Photo supermotors.net/registry/media/1112485

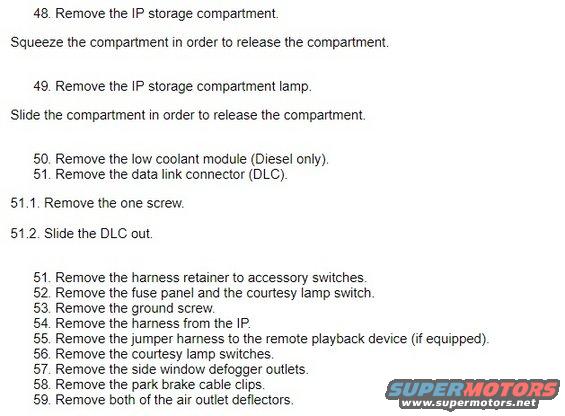

1998 Chevy C/K Pickup Instrument Panel Removal Steps 48-59 - Service Procedure

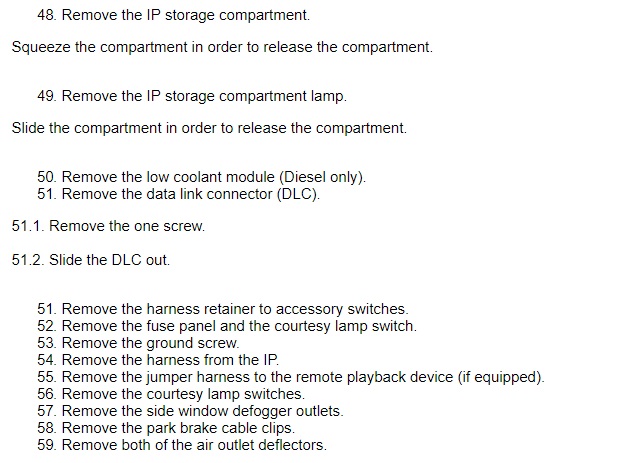

Service manual text steps 48-59 for IP storage compartment and harness removal

‹ ›

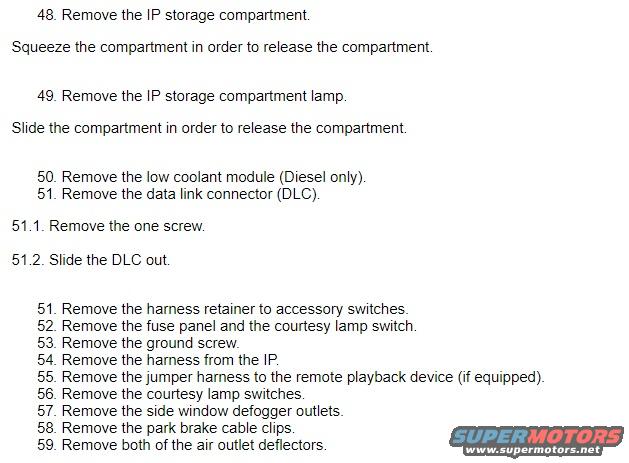

Service procedure page listing numbered steps 48-59 for removing the IP storage compartment and wiring harness.

AI caption July 2017 · Photo 109 of 118

This document is one page of a multi-page service procedure covering removal of the instrument panel (IP) and its attached components. It lists numbered steps 48 through 59, including removal of the IP storage compartment (released by squeezing it), the IP storage compartment lamp (released by sliding the compartment), the low coolant module (Diesel engines only), and the data link connector (DLC), which is removed by taking out one screw and sliding the DLC out. Further steps include removing the harness retainer to the accessory switches, the fuse panel and courtesy lamp switch, the ground screw, the harness from the IP, the jumper harness to the remote playback device (if equipped), the courtesy lamp switches, the side window defogger outlets, the park brake cable clips, and both air outlet deflectors. The page contains no torque values, part numbers, wire colors, or illustrations—only text instructions. The document was uploaded to the gallery of a 1998 Chevrolet C/K Pickup and appears to be a page from a factory-style service manual disassembly procedure for the instrument panel. Note the step numbering repeats 51 twice, suggesting sub-steps or a numbering quirk in the source document.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How do you remove the IP storage compartment?: Squeeze the compartment in order to release it (step 48), then remove the IP storage compartment lamp by sliding the compartment to release it (step 49).
How is the data link connector (DLC) removed?: Remove the one screw (step 51.1), then slide the DLC out (step 51.2).
Which step applies only to Diesel engines?: Step 50: Remove the low coolant module (Diesel only).
What components are removed along with the fuse panel?: Step 52 says to remove the fuse panel and the courtesy lamp switch; nearby steps also remove the ground screw, the harness from the IP, and the courtesy lamp switches.
Is the jumper harness removal required on all vehicles?: No — step 55 says to remove the jumper harness to the remote playback device only if equipped.
