Bronco outside rearview mirror parts in three panels including r…

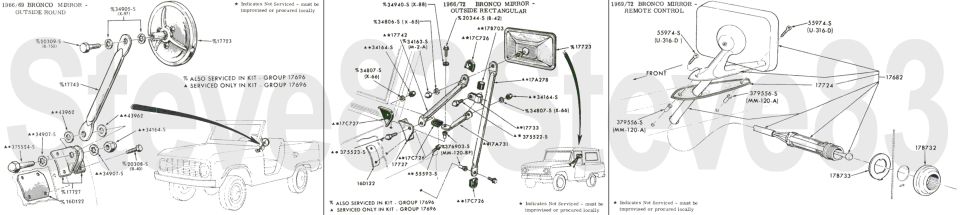

Bronco outside rearview mirror parts in three panels including remote control mirror with part numbers
Bronco outside rearview mirror parts in three panels including remote control mirror with part numbersOriginal file
Bronco outside rearview mirror parts in three panels including remote control mirror with part numbers

Reference · 1966-1977 BroncoAll 140 exploded parts diagrams

'66-67 Bronco instrument panel, pad and related parts exploded breakdown with part numbers '66-72 Bronco windshield exploded parts breakdown with frame, glass, seals and part numbers '66-72 Bronco heater exploded parts breakdown with blower, core, ducts and part numbers Bronco outside rearview mirror parts in three panels including remote control mirror with part numbers '66-72 Bronco front and rear bumpers exploded parts breakdown with brackets and part numbers '68-72 Bronco jack parts exploded view with mounting at left front wheel housing and part numbers '66-72 Bronco jack stowage and spare wheel parts, standard and rear seat installations with part numbers '66 Bronco jack and spare wheel parts before serial 830,001, standard installation with part numbers 140exploded parts diagrams1966-1977 Ford Bronco More reference Automatic transmission bushings reference page with A, B, C dimensions and part numbersManual page Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnessesWiring diagram '66-72 Bronco 6-cylinder and V8 exhaust system diagram with part number tablesSchematic Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall lengthBlueprint '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Four Wild Horses Inc. catalog covers with off-road Broncos and customer photo collagesBrochure Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec

'66-72 Side Mirrors
IF THE IMAGE IS TOO SMALL, click it.

. . . . . .

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams
