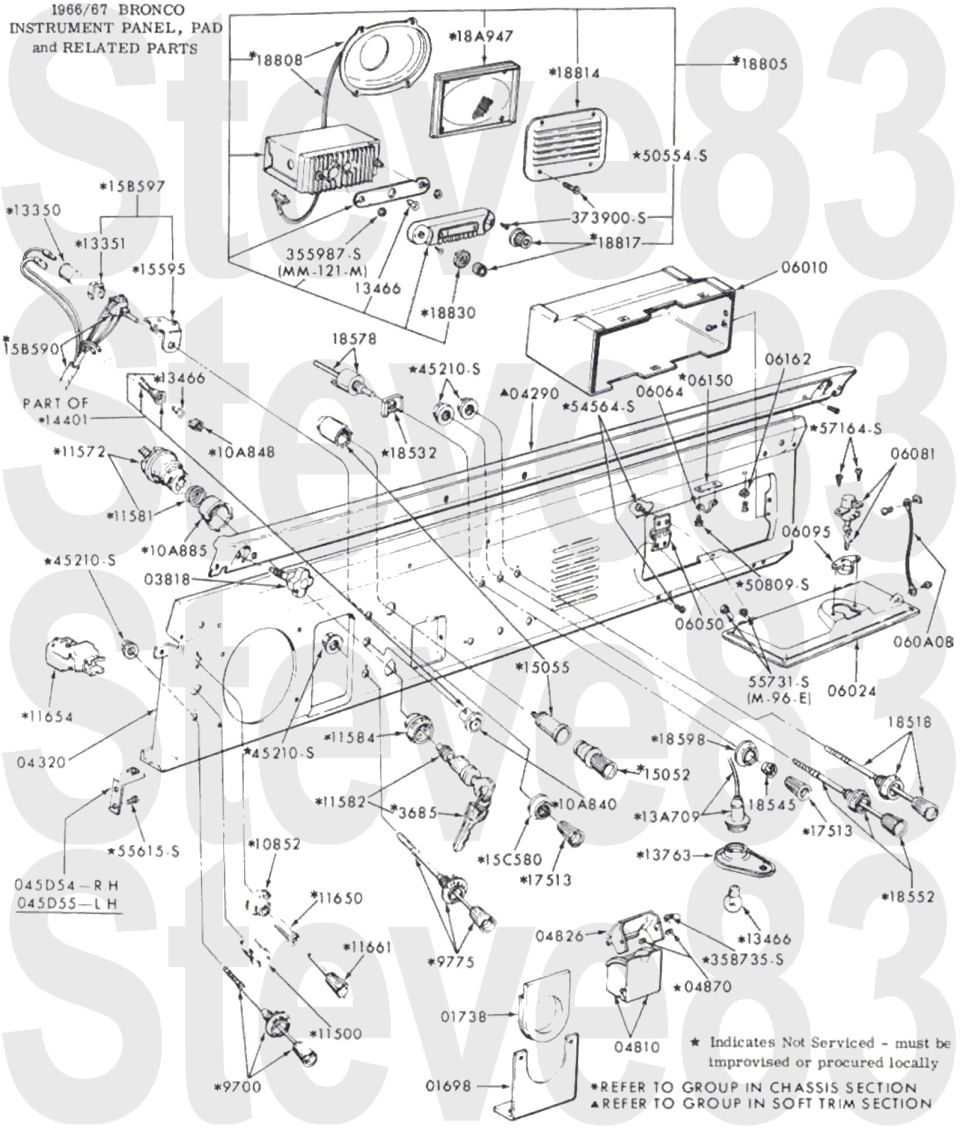

'66-67 Bronco instrument panel, pad and related parts exploded b…

'66-67 Dash
IF THE IMAGE IS TOO SMALL, click it.

IN-PROGRESS...

1 - Dashboard
2 - Bolt, Dashboard to Door Jamb
3 - Column Shroud, Upper
4 - Column Shroud, Lower
5 - Screw
6 - Glovebox Door
7 - Hinge, Glovebox Door
8 - Bolt, Glovebox Hinge
9 - Nut, Glovebox Hinge
10 - Bezel, Glovebox Latch
11 - Latch, Glovebox Door
12 - Screw
13 - Check Cable
14 - Screw
15 - Catch, Glovebox Door
16 - Screw
17 - Nut Plate
18 - Screw
19 - Glovebox
20 - Dash Pad
21 - Screw
22 - Knob, Windshield Lock
23 - Brace, Dashboard to Cowl
24 - Bolt, Dashboard to Cowl
25 - Ashtray
26 - Slide
27 - Screw
28 - Screen
29 - Speaker
30 - Screw
31 - Radio
32 - Reflector
33 - Bulb (#1895)
34 - Spacer
35 - Radio Dial
36 - Screw
37 - Bezel, Radio Knob
38 - Radio Knob
39 - Cigar Lighter
40 - Cigar Lighter Socket
41 - Cigar Lighter Shell
42 - Socket, Brake Warning (part of wiring harness)
43 - Brake Warning Bulb (#1895)
44 - Brake Warning Lens
45 - Key, Ignition Lock Cylinder
46 - Bezel, Ignition Lock Cylinder
47 - Retainer, Ignition Lock Cylinder
48 - Ignition Lock Cylinder
49 - Headlight Switch
50 - Bezel, Headlight Switch
51 - Knob, Headlight Switch
52 - Setscrew, Knob
53 - Knob
54 - Bezel
55 -
56 - Hazard Switch ('73 Only)
57 - Hazard Flasher
58 - Wiper Switch
59 - Cable Sheath, Defrost
60 - Knob, Defrost
61 - Knob, Fan
62 - Brace, Fan Switch
63 - Fan Switch
64 - Cable Sheath, Temperature
65 - Knob, Temperature
66 - Lamp Assembly, Headlight-Wiper
67 - Lamp Assembly, Ventilation
68 - Nut
69 - Bezel, Fuel Tank Switch
70 - Fuel Tank Switch
71 - Fuel Gauge Wire (Orange)
72 - Fuel Level Sender Wires (Orange - Rear; Yellow/White - Front)
73 - Cable Sheath, Throttle
74 -
75 - Knob, Throttle
76 - Socket, Courtesy Lamp (part of wiring harness)
77 - Reflector, Courtesy Lamp
78 - Screw
79 - Bulb, Courtesy Lamp (#631)
80 - Horn Override Switch (New York Only)
81 - Bezel, Horn Override Switch (New York Only)
82 - Screw (New York Only)
83 - Switch, Horn Override (New York Only)
84 - (New York Only)
85 - Relay, Horn Override Switch (New York Only)
86 - Wiring Harness, Horn Override Switch (New York Only)

See also:
. . . . . . . .

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams
