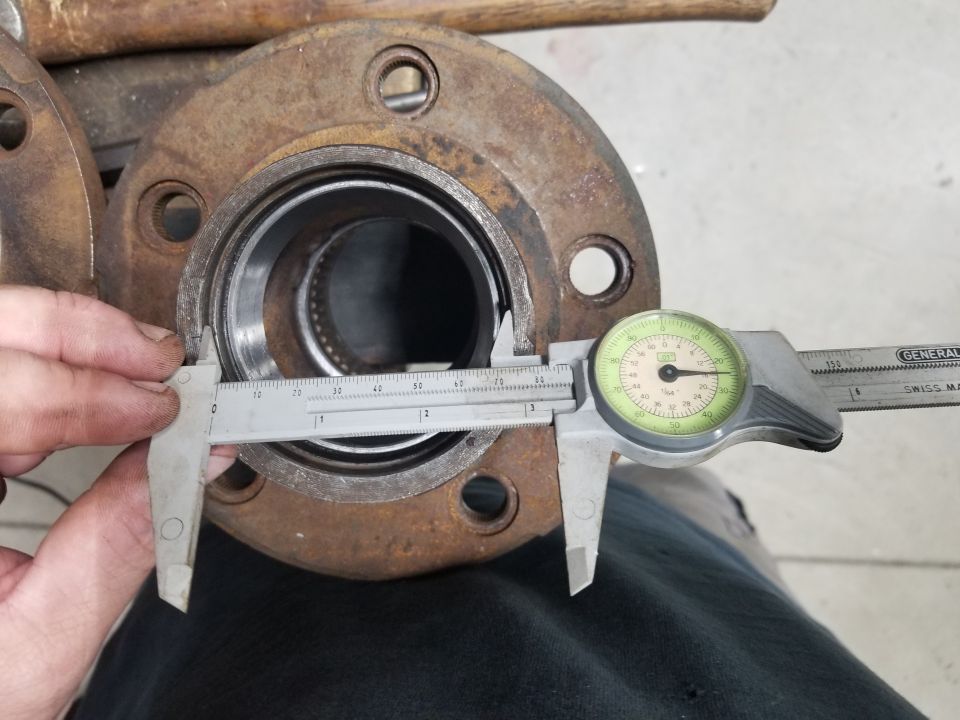

Close-up of rusty wheel hub being measured with calipers; calipe…

I didn't realize this hub was machined 0.05" (nearly 1/16") too small until the seal was ruined. Note the narrow shoulder between the lip of the bearing outer race and the wall that the caliper is touching.
