Lotus Esprit HVAC Mode & Fresh Air Vacuum Solenoids/Actuators Exploded Diagram

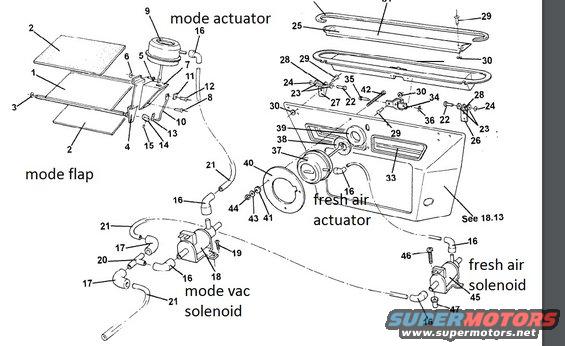

This is an exploded parts diagram, apparently from a service/parts manual, showing components of a vehicle's HVAC (heater/ventilation) air distribution and vacuum control system. Handwritten-style annotations added by the uploader identify the major assemblies: the mode flap (a set of flap panels with linkage at upper left), the mode actuator (a round vacuum actuator diaphragm, item 9), the fresh air actuator (round actuator, items 37-40, mounted to the plenum/housing shown at right), the mode vac solenoid (item 18, lower left, with vacuum hoses items 16/21 and elbows), and the fresh air solenoid (item 45, lower right, with fasteners 46/47). The larger housing/plenum assembly at the upper right includes seals or gaskets (items 25 and related), brackets, screws, and clips (items 22-36), with a note reading 'See 18.13' referencing another section of the manual. Numbered callouts run from 1 to 47, but no accompanying parts legend, part numbers, or torque values appear on this page, so the item numbers must be cross-referenced with the corresponding parts list elsewhere in the manual. The dashed lines indicate vacuum hose routing between the solenoids and their actuators.
