Lotus Esprit Custom Pulley Blueprint - Pulley 1 v3 Dimensioned CAD Drawing

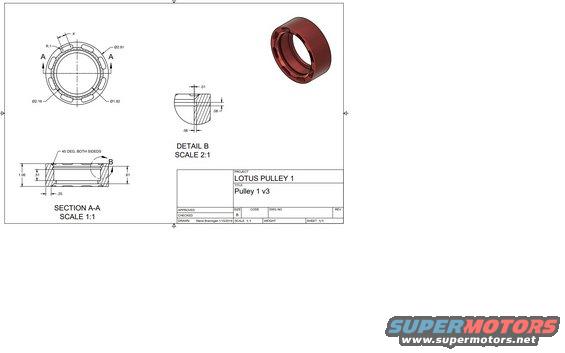

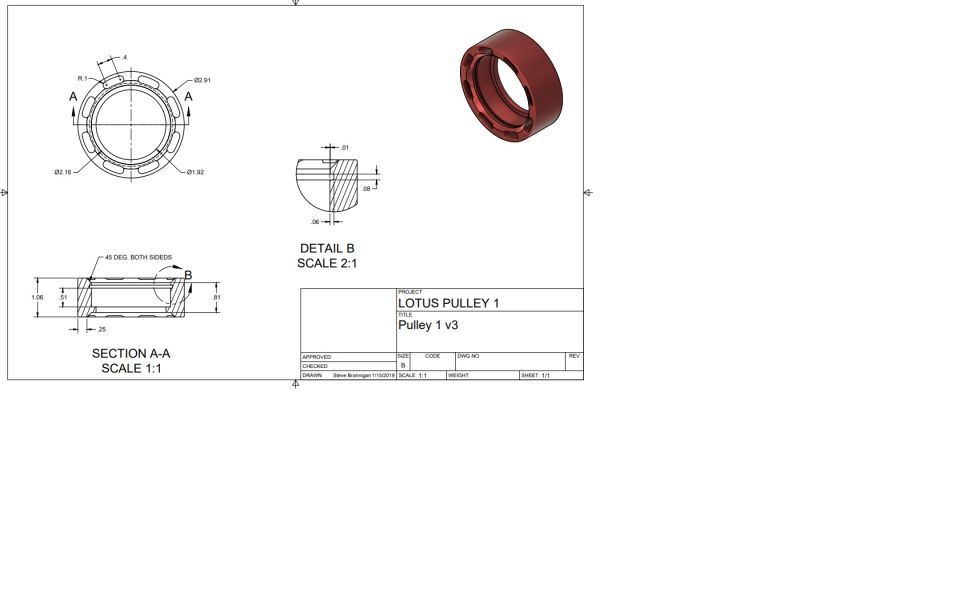

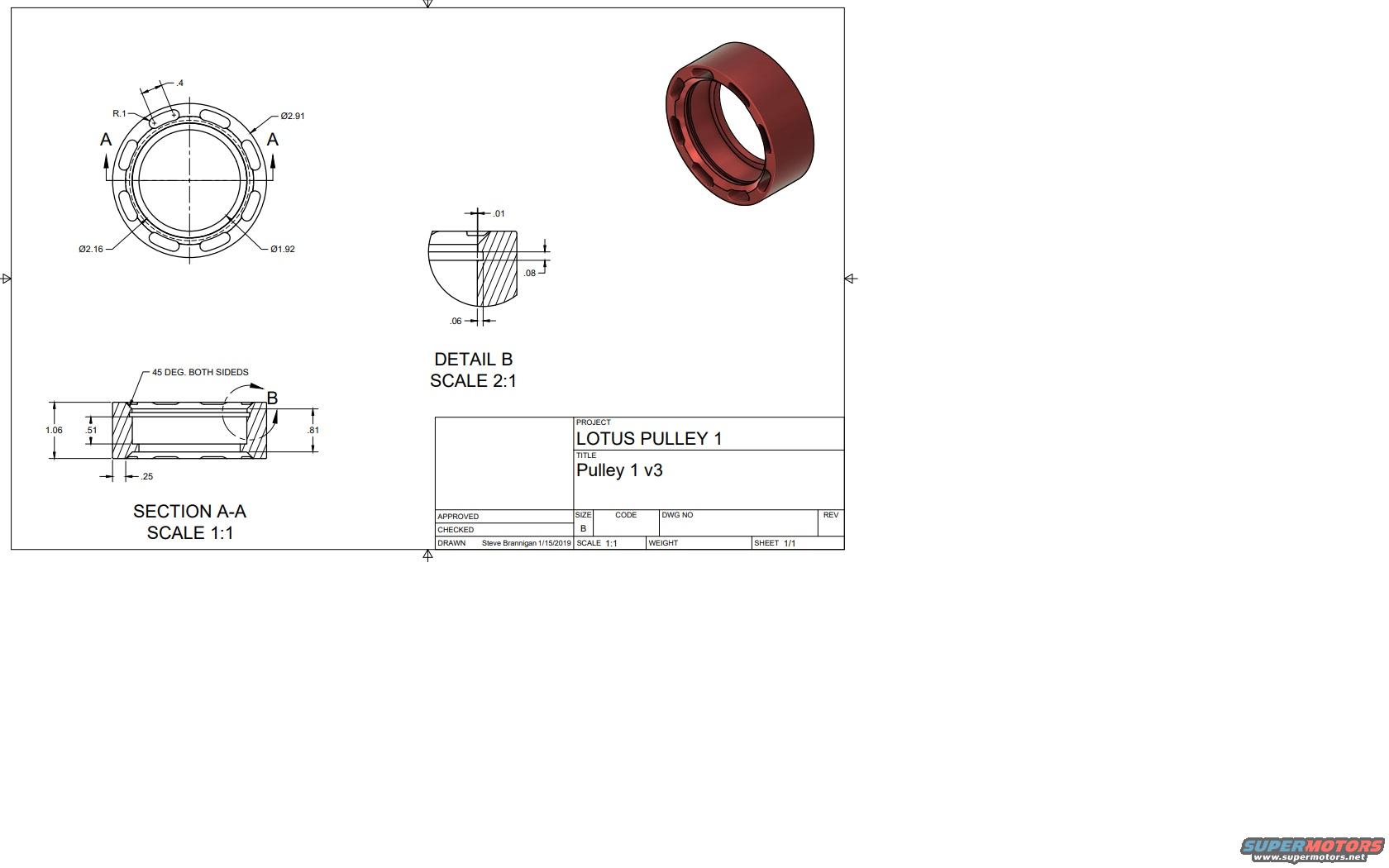

This document is a single-sheet (Sheet 1/1, Size B) engineering drawing titled "Pulley 1 v3" under the project name "LOTUS PULLEY 1," drawn by Steve Brannigan on 1/15/2019. It provides dimensioned views of a slotted ring-style pulley. The top (plan) view shows an outer diameter of Ø2.91, intermediate diameter Ø2.16, and bore/inner diameter Ø1.92, with slot features dimensioned at .4 wide with R.1 corner radii. Section A-A (scale 1:1) shows the part's overall height of 1.06, additional depths of .51 and .81, a .25 dimension, and a chamfer note reading "45 DEG. BOTH SIDEDS" (sic). Detail B (scale 2:1) enlarges a groove/step feature with dimensions .01, .08, and .06. A red-shaded isometric 3D rendering of the finished part appears in the upper right corner. The title block fields for APPROVED, CHECKED, CODE, DWG NO, REV, and WEIGHT are blank. A reader can use this drawing to machine or verify dimensions of this custom Lotus pulley component, apparently a homemade/community-designed part associated with a Lotus Esprit.
