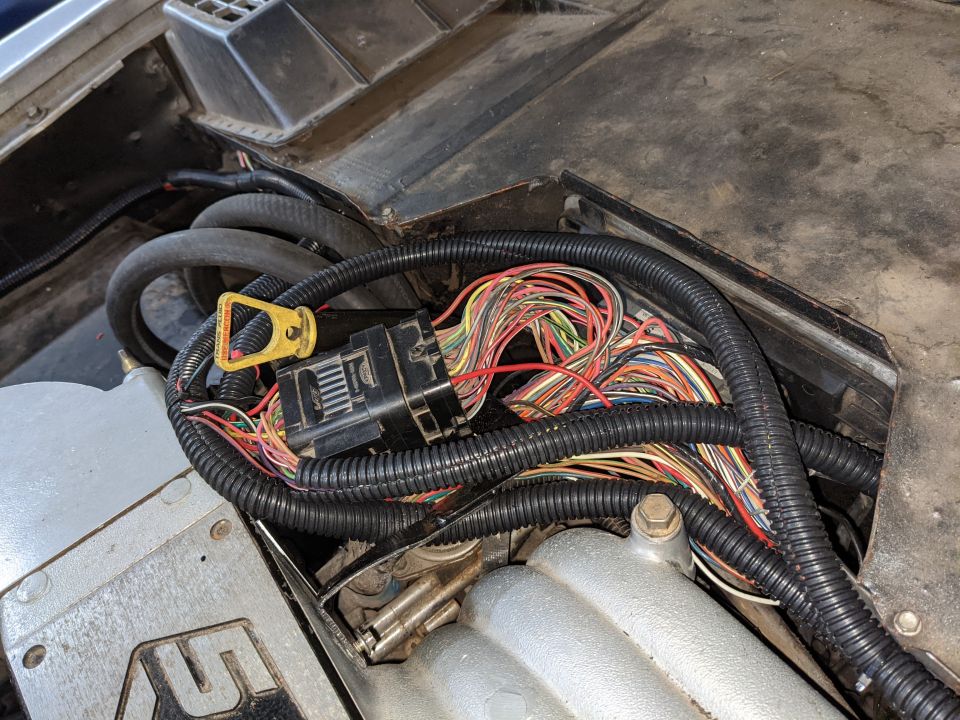

This still needs a little cleanup but it's just a busy area for wiring. C115 splits into 3 groups here:
-The 7 factory circuits to the PDB
-The wires through the firewall to the dash area
-To the passenger fender area: the 3 C115 ground wires, RUN wire from the old voltage regulator to C115, and big ignition switch black/yellow wire that splices to the big yellow PDB wire.

The rest of the rainbow spaghetti is just the wires from C115 to the engine and from the engine to the PCM that's mounted in the firewall and none of those are touched.
