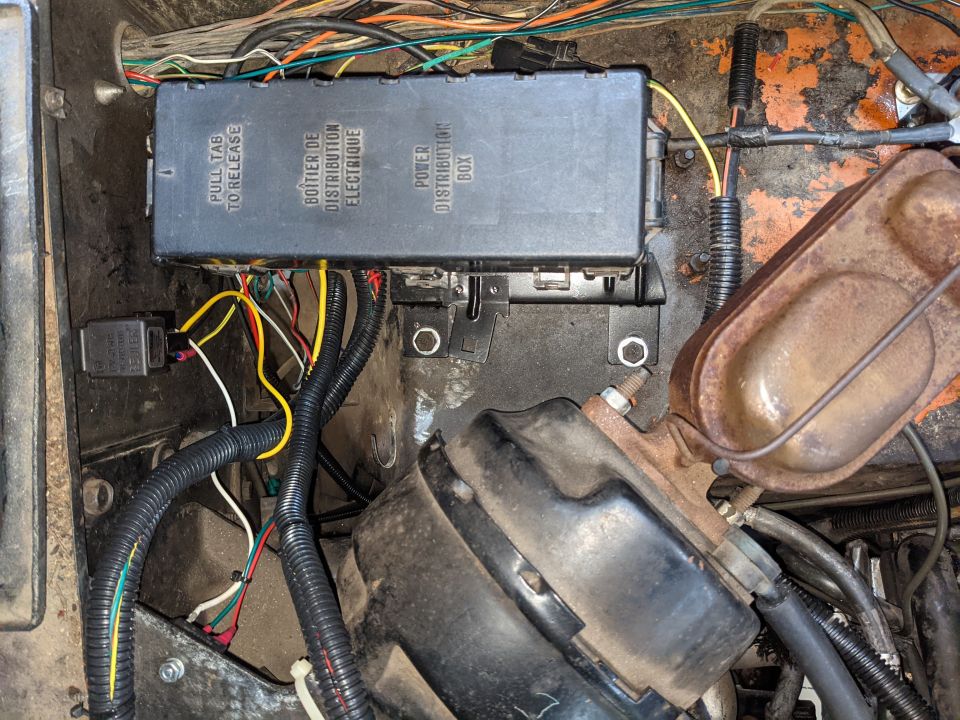

Arial view of the PDB. These wires now have split loom protecting them. To the right of the PDB you can see C123 which has the Yellow/White PDB constant 12V wire to the alternator and the Lt Green/ Red wire that goes from the alternator to the dash charge light. This connector is 4-pin but some models had an 8-pin version.
