RV Products Airxcel 48254C969 Rooftop AC Data Plate - Specs & Electrical Ratings

RV roof air conditioner data plate with model, serial, refrigerant charge and electrical ratings

‹ ›

Air conditioner spec plate listing model and serial numbers, refrigerant charge, electrical ratings and design pressures

AI caption May 2022 · Photo 1034 of 1514

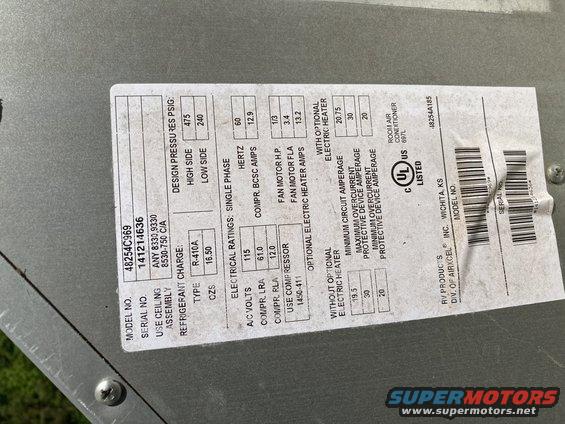

This document is a photograph of the manufacturer data/specification plate on an RV Products (a division of Airxcel, Wichita, KS) rooftop room air conditioner, model number 48254C969, serial number 141214636. The label was uploaded to a 2015 Ford F-550 gallery, likely because the AC unit is installed on a camper or service body associated with the truck. The plate specifies that the unit uses ceiling assembly ANY 8330, 9330, or 8530-750 C/A. Refrigerant charge is R-410A at 16.50 oz, with design pressures of 475 PSIG (high side) and 240 PSIG (low side). Electrical ratings are single phase, 115 V, 60 Hz, compressor LRA 61.0, RLA 12.0, BCSC amps 12.9, using compressor 1450-411. The fan motor is 1/3 HP with 3.4 FLA, and the optional electric heater draws 13.2 amps. Circuit protection data: minimum circuit amperage 19.5 (without heater) or 20.75 (with heater), maximum overcurrent protective device 30 A, minimum overcurrent protective device 20 A. The unit is cULus listed as Room Air Conditioner 697L. Label part number 48254A185 also appears, along with barcodes for the model and serial numbers.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What refrigerant and charge does the RV Products 48254C969 air conditioner use?: R-410A refrigerant with a charge of 16.50 ounces.
What are the electrical ratings of model 48254C969?: Single phase, 115 volts, 60 Hz; compressor LRA 61.0, RLA 12.0, BCSC amps 12.9; fan motor 1/3 HP with 3.4 FLA; optional electric heater draws 13.2 amps.
What size breaker/fuse does this unit require?: Minimum circuit amperage is 19.5 (20.75 with the optional electric heater); the maximum overcurrent protective device is 30 amps and the minimum is 20 amps.
What are the design pressures for this air conditioner?: 475 PSIG on the high side and 240 PSIG on the low side.
Which ceiling assemblies are compatible with this unit?: The label states to use ceiling assembly ANY 8330, 9330, or 8530-750 C/A.
