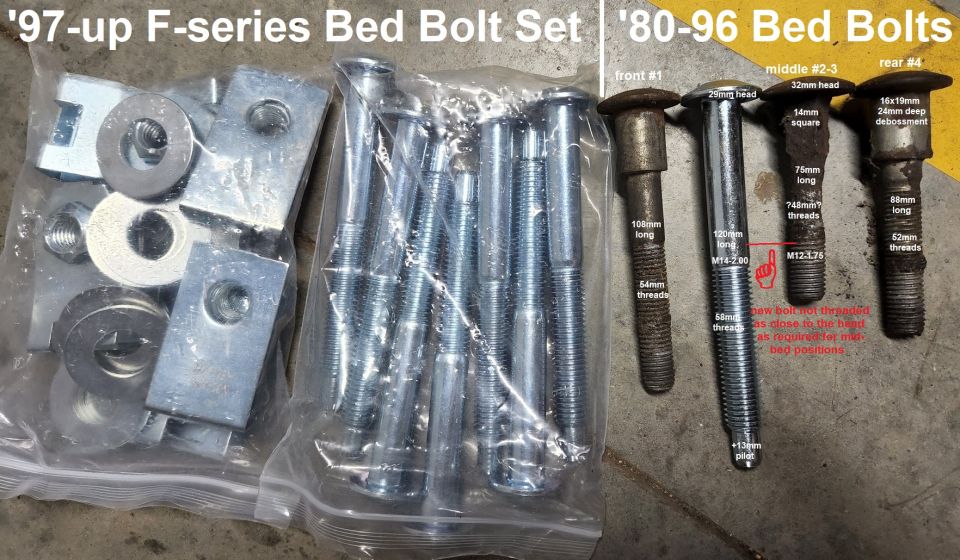

Bed bolts and nuts for 1997-up and 1980-1996 F-series trucks

Bed Bolt Comparison
IF THE IMAGE IS TOO SMALL, click it.

Later-style bed bolts (short N806251-S103 & long N806252-S103) are installed from above, using a 5mm Allen (hex) driver, into U-nuts (N803334-S439) that clip to the top of the frame rail. So they're easier to work with than the older non-rotating (until they rust up) bolts that require removing an 18mm nut from below. The Ranger 6-bolt set or Ranger 8-bolt set includes short & long bolts that will work for these older F-series.

Owner caption July 2022 · Photo 70 of 75
