F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses…

F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993
F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993Original file
F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993

Reference · 1987-1991 F-250All 1 schematics

F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993 1schematics1987-1991 Ford F-250 More reference 1990 Ford F-250 Center Console Gauge Panel Wiring Diagram - Voltmeter & OutletsWiring diagram 1992 Ford Bronco complete underbody frame dimensions, top and side views with measuring pointsBlueprint Ford certification label dated 06/93, type truck, VIN beginning 1FTCR11X, with GAWR and tire dataSpec plate EPC relief valve install steps with drilled bottom plate, purple spring, valve and bracketService procedure TransGo AODE-HD2 Reprogramming Kit instruction cover for 1992-2011 AODE, 4R70/75W and 4R70/75EBrochure Ford 5.8L Vacuum Hose Routing Diagram - Emissions Decal MFM05.8BSA6Vacuum routing

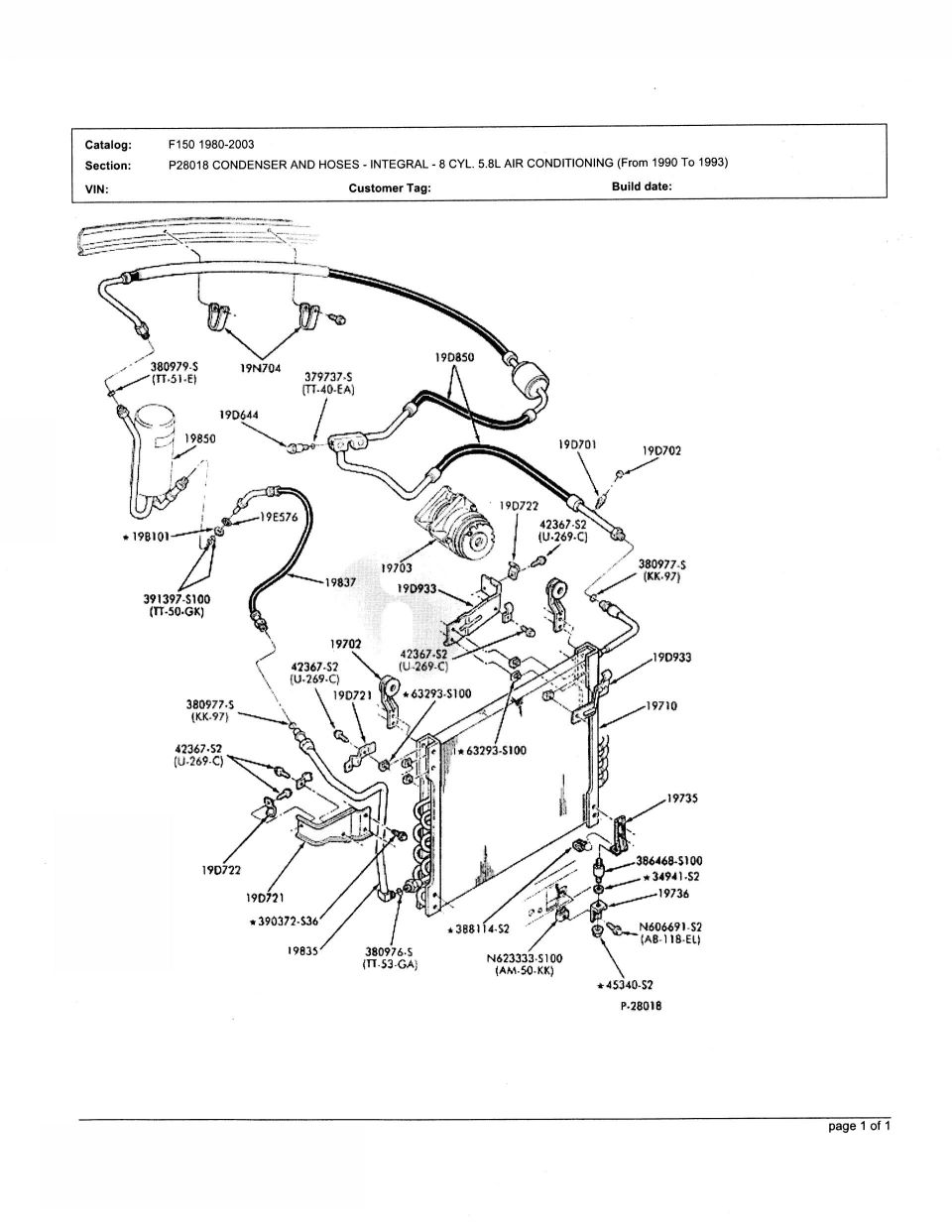

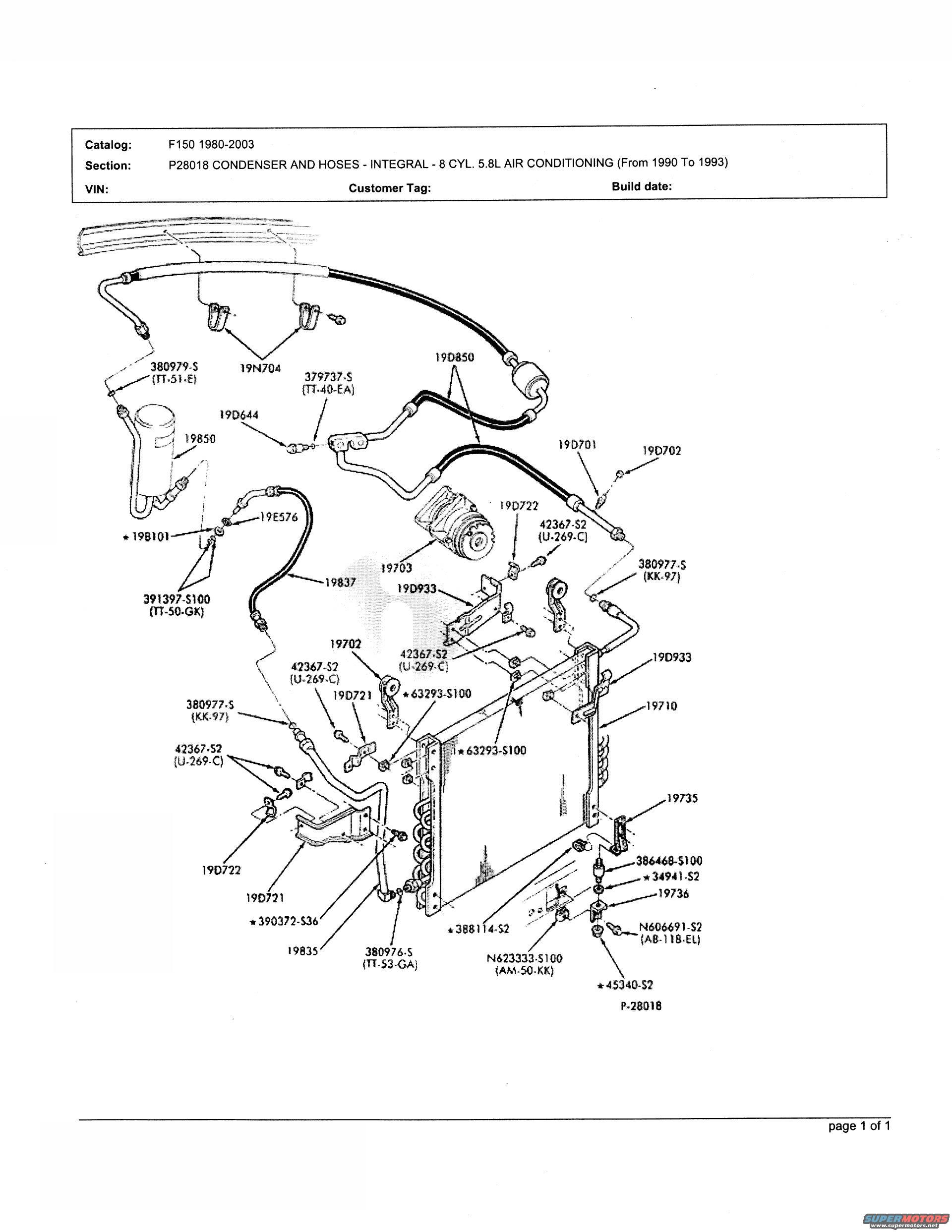

Parts catalog schematic P28018 of the integral A/C condenser and hoses for the 8 cyl. 5.8L, 1990 to 1993, with part numbers such as 19D850 and 19710.

Part of 1987-1991 Ford F-250 Schematics
