Where is the C266 Window Regulator Safety Relay located?

Per the illustration, C266 is located behind the instrument panel to the right of the steering column, near the C250/C251 Air Suspension EVO Steering Module area.

What connector is the Brake On/Off (BOO) switch?

The Brake On/Off (BOO) Switch is connector C2002, shown near the brake pedal/steering column area.

Which connectors relate to the air bag system in this diagram?

C252 is the Air Bag Diagnostic Connector, and C276/C277 connect to the Air Bag Diagnostic Monitor on the right side of the dash.

What grounds are shown behind the dash in this illustration?

Grounds G200, G201, G203, G204, G205, and G206 are called out at various points around the instrument panel.

What vehicle does this illustration cover?

The page is labeled 'Town Car' with document number FCS-12119-96 (7 OF 11), indicating a Lincoln Town Car illustration set.

Home/ Registry/ Ford/ Crown Victoria/ 1992-1997/ 1996 Ford Crown Victoria/ Photo supermotors.net/registry/media/171036

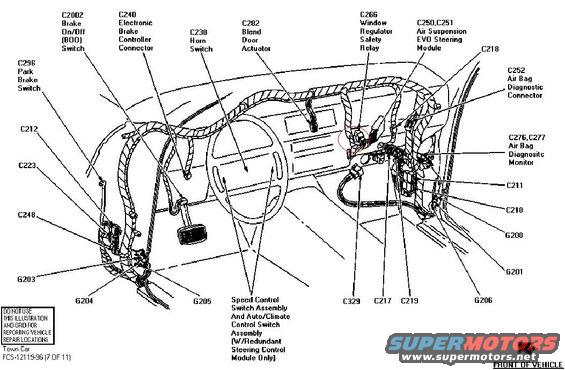

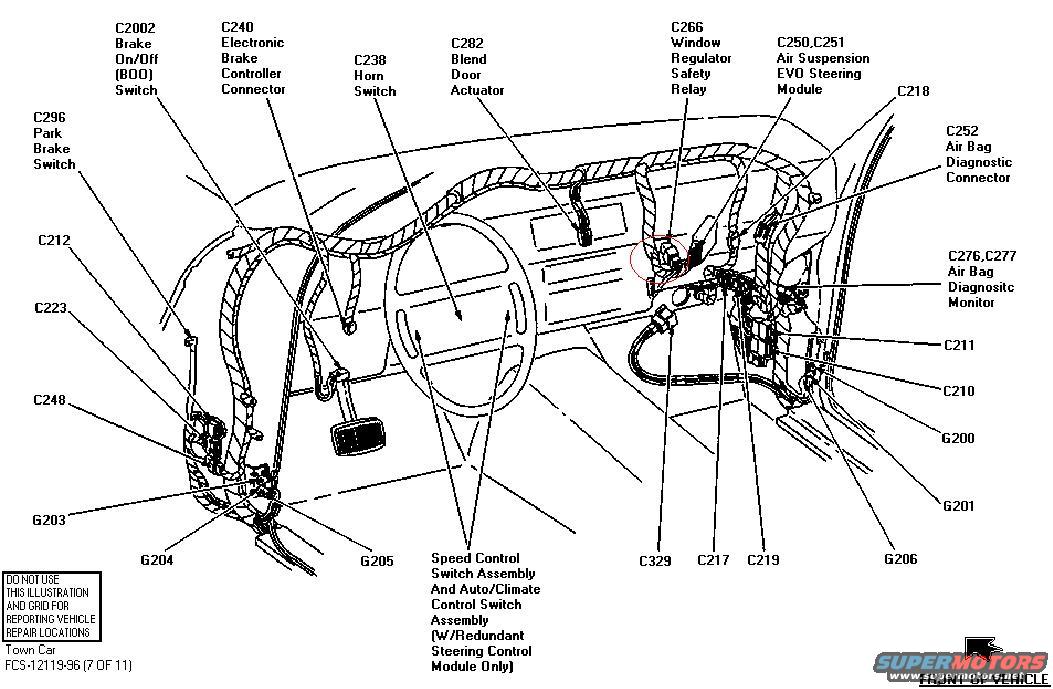

1996-97 Lincoln Town Car Dash Connector & Ground Locations - C266 Window Relay

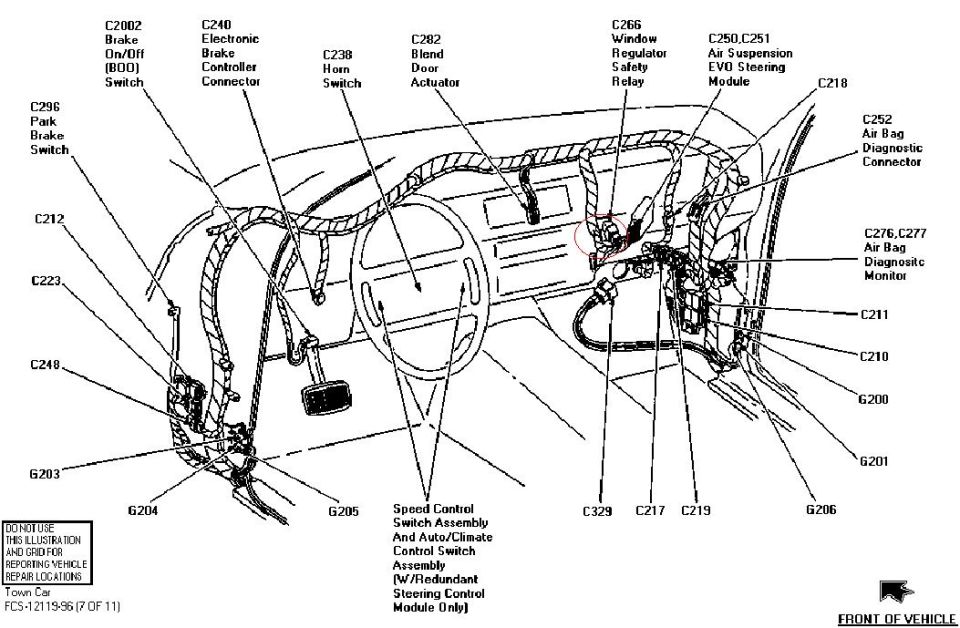

Town Car dash harness connector and ground location illustration with callouts

‹ ›

Connector and ground location schematic of a Lincoln Town Car instrument panel harness with labeled C-number connectors.

AI caption January 2005 · Photo 49 of 59

This document is page 7 of an 11-page factory illustration set (FCS-12119-96) for the Lincoln Town Car, showing wiring harness connector and ground locations behind and around the instrument panel/dash area. The line-art drawing depicts the dashboard, steering wheel, and pedal area with callouts identifying electrical connectors and grounds by their C- and G-numbers. Components identified include the C2002 Brake On/Off (BOO) Switch, C240 Electronic Brake Controller Connector, C238 Horn Switch, C282 Blend Door Actuator, C266 Window Regulator Safety Relay, C250/C251 Air Suspension EVO Steering Module, C252 Air Bag Diagnostic Connector, C276/C277 Air Bag Diagnostic Monitor, and C296 Park Brake Switch, plus the Speed Control Switch Assembly and Auto/Climate Control Switch Assembly (with Redundant Steering Control Module only). Additional unlabeled connectors called out include C210, C211, C212, C217, C218, C219, C223, C248, and C329, along with grounds G200, G201, G203, G204, G205, and G206. An arrow indicates the front of the vehicle, and a note cautions not to use the illustration and grid for reporting vehicle repair locations. A reader can use this page to physically locate these connectors and grounds when diagnosing electrical issues, such as tracing the C266 window regulator safety relay.

This document covers 1996, which may differ from this 1996 Ford Crown Victoria.
