Traction Bar Trailing Arm & Anti-Squat Bracket Fabrication Blueprints (Figs 6-1-6-4)

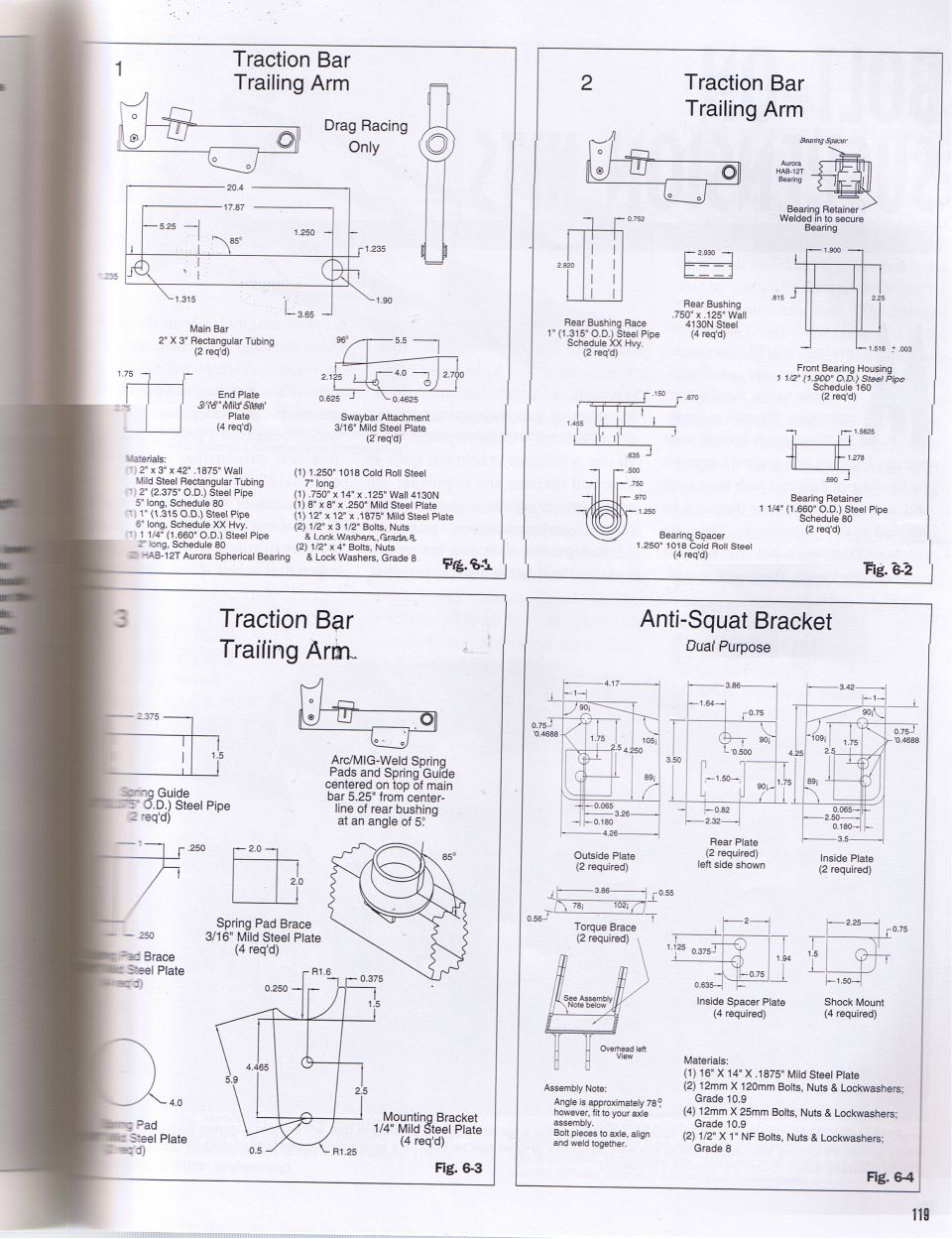

This is page 119 of a suspension fabrication reference (blueprint-style), presenting four dimensioned fabrication drawings: Figures 6-1 through 6-4. Figures 6-1, 6-2 and 6-3 detail a homebuilt Traction Bar / Trailing Arm (Fig. 6-1 marked 'Drag Racing Only'), including the main bar made from 2" x 3" rectangular tubing, end plates, swaybar attachment, rear bushing race and bushings (4130N steel), front bearing housing (Schedule 160 pipe), bearing retainer, bearing spacer (1018 cold-roll steel), spring guide, spring pads/braces, and mounting brackets. It specifies Aurora HAB-12T spherical bearings and gives full material lists with pipe schedules, plate thicknesses, and Grade 8 hardware. A welding note instructs arc/MIG-welding the spring pads and guide 5.25" from the rear bushing centerline at a 5° angle. Figure 6-4 is a 'Dual Purpose' Anti-Squat Bracket with dimensioned outside, rear, and inside plates, torque braces, inside spacer plates, and shock mounts, plus an assembly note (approx. 78° angle; bolt to axle, align, and weld) and a materials list including 12mm Grade 10.9 and 1/2" NF Grade 8 hardware. A fabricator can use this page to cut, drill, and weld all components with exact dimensions provided.
