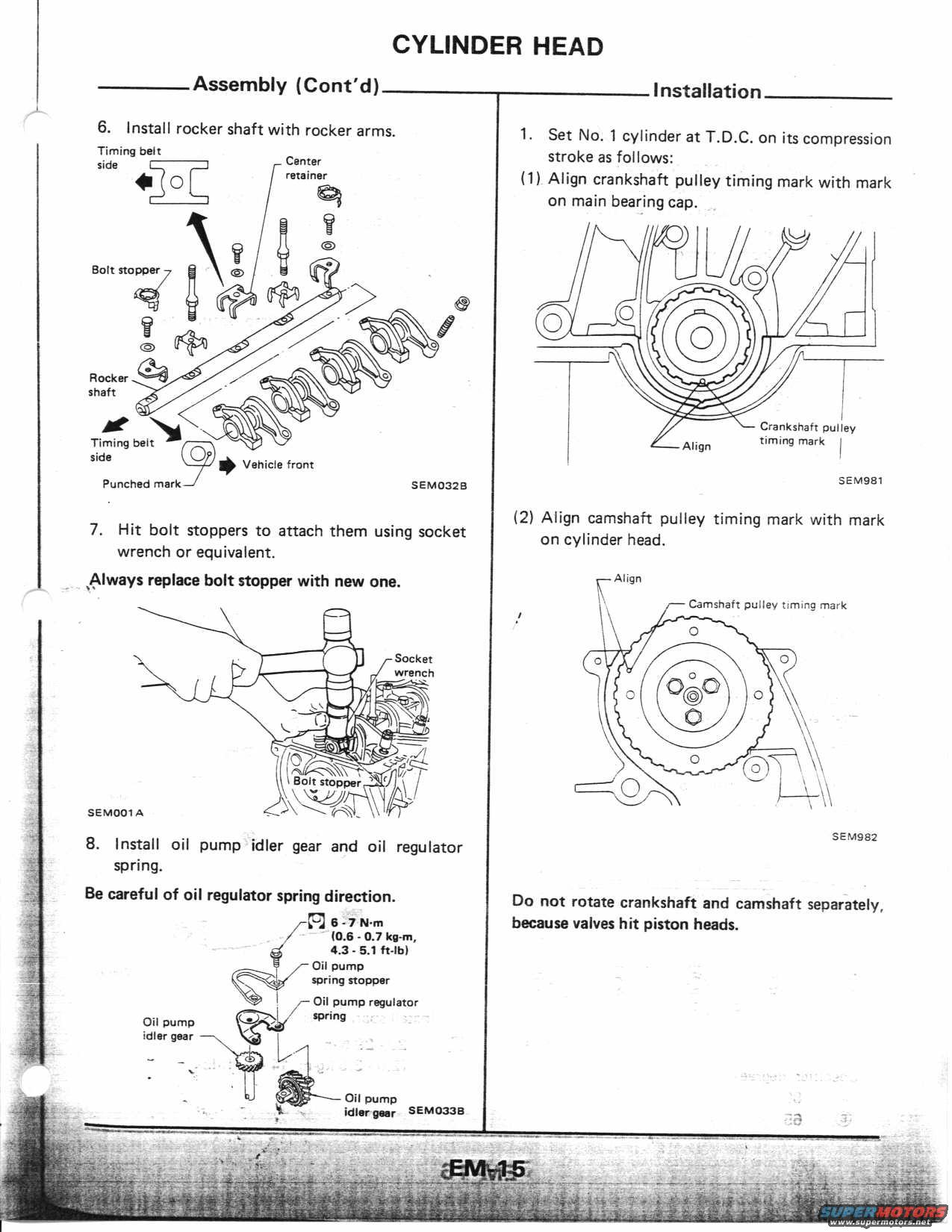

CYLINDER HEAD Assembly (Contd) 6. Install rocker shaft with rocker arms. mm M" c..." E 2e ? 3 Bolt stopper , > G Rocker $3 shalt W59 Mlhm side 9 Punched mark 7, Hit bolt stoppers to attach them using socket wrench or equivalent. Q Vehicle front SEMOSIB _Always replace bolt stopper with new one. SEMom A 8. Install oil pump idler gear and oil regulator spring. Be careful of oil regulator spring direction. {q s 1 N-m (0.3 . 0.7 Run, 4.: . 5.1 mm Oil uump wring apper g. on pump regulator /_ vine g. I. I" 9-, saunas: Oil Dump lam gear Installation 1. Set No. 1 cylinder at T.D.C. on its compression stroke as follows: (1) Align crankshaft pulley timing mark with mark on main bearing cap. l Crankshaft pulley wrung mark I sEMgal (2) Align camshaft pulley timing mark with mark on cylinder head. V Allgn Camshalt pulley [lmmg mark SEMQEZ Do not rotate crankshaft and camshaft separately, because valves hit piston heads.
