Nissan Micra Instrument & Back Door Harness Layout Diagram - EL-64 Wiring

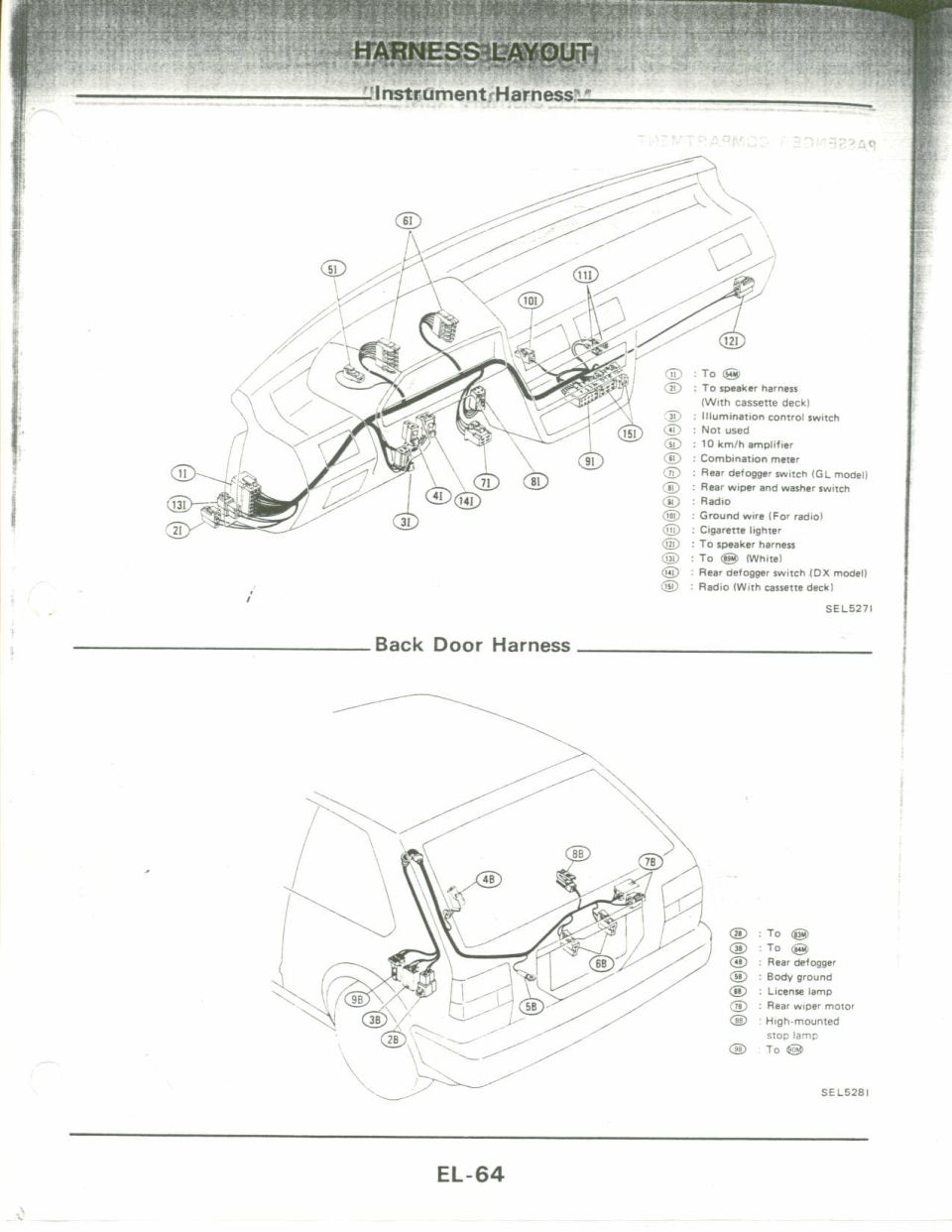

This is page EL-64 from a Nissan factory service manual electrical section, titled "HARNESS LAYOUT." It contains two illustrated harness routing diagrams. The first, "Instrument Harness" (figure SEL527I), shows the wiring harness routed through the instrument panel/dashboard with fifteen numbered connector callouts (1I–15I). The legend identifies each connector: connections to main harness connector 54M, speaker harness (with cassette deck), illumination control switch, a not-used connector, 10 km/h amplifier, combination meter, rear defogger switch (GL model), rear wiper and washer switch, radio, radio ground wire, cigarette lighter, speaker harness, connector 89M (white), rear defogger switch (DX model), and radio with cassette deck. The second diagram, "Back Door Harness" (figure SEL528I), shows the rear hatch/back door harness of a hatchback body with callouts 2B–9B identifying connections to main harness connectors 83M, 84M, and 50M, plus the rear defogger, body ground, license lamp, rear wiper motor, and high-mounted stop lamp. A reader can use this page to locate connectors along the dash and tailgate harnesses, identify what each connector feeds, and note model-specific differences (GL vs. DX rear defogger switch placement, cassette-deck radio variations).
